Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > Free Sample 9 Pin Connector

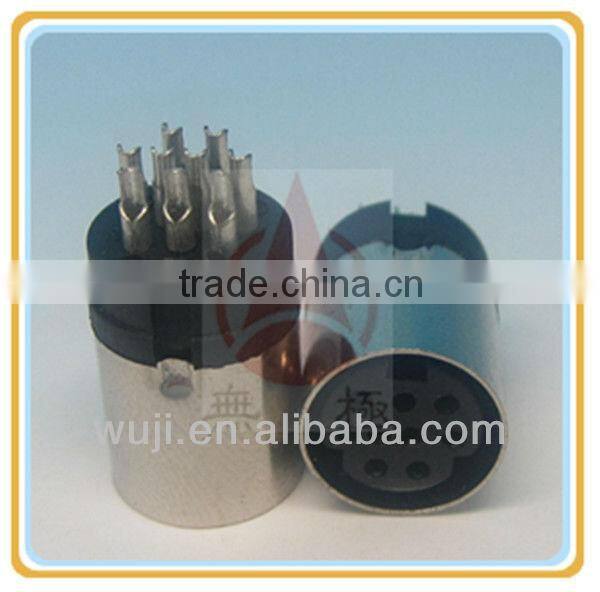

Free Sample 9 Pin Connector

Name: Free Sample 9 Pin Connector
Brand: Wuji
SKU: 108082677
Availability: InStock

US$ 0.05 - 0.3 MOQ: 1000 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Wuji

Model Number:

Mini Din 9P Jack(small type)

Contact Supplier Request Quote Chat Now

Dongguan Chashan Wuji Electrical Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen Guangzhou or Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Wuji

Model Number Mini Din 9P Jack(small type)

Type DIN

Application Other, Audio & Video

Gender Female

Specifications

9 pin mini din
1. Manufacturer over 8 years
2. Good quality
3. Short lead time
4. ISO9001:2000

Mini din power connector of 9 pin audio jack with small type 9 pin mini din

Product informations

Material

1.Shell:Brass

2.OD=9.8mm

3.Size of shell:10*10mm

4.Total Length: 18mm

5.Shell plated:Ni/Au

6.Pin:9 (also can choose 3p to 13p)

Plated:Ni/Au/Silver

Contact:Brass

7.Assembled type, solder type

Environmental Spec.(have passed below tests)

1. Salt fog test

2. Air reflow soldering test

3. Mechanical Vibration test

4. Adhered Tin test

5. Temperature Cycle test

Usage:

1.Using for connecting component video and audio for cable TV operator

2.Using for Car Audio or Car cable

3.Using for GPS Navigation

4.Car headrest monitors

5.Computer,Mouse, Keyboard,Video,ect.

Product pictures:

Othere choices

3-pin

Apple LocalTalk Network
VESA Stereo
SGI StereoView (pinout diagram)
Behringer Mixer Power Supplies
Optoma EH1020 Projector
TOPFIELD TF5400 PVR Combo Receiver

4-pin

4 pin mini-DIN for S-Video

5-pin

Low-voltage power supply input connector on various pieces of equipment
SONY LANC camcorder control interface (Pinout diagram)
5-pin MIDI input and output connectors used by the Creative Technology Sound Blaster X-Fi Front I/O Panel and the Creative LivedriveII (pinout diagram)
Altec Lansing ACS 45 (2.1)

6-pin

The color-coded PS/2 connection ports (purple for keyboards and green for mice)

7-pin

Example of the standard 7 pin mini-DIN connectors. These are from a Commodore 1531 datasette and its adapter.

8-pin

Sony VISCA Camera Control
Apple Macintosh Serial Port
Epson
- Epson PX-8 and Epson PX-4 RS-232 and Serial port
- Scanner TPU and automatic document feeder

9-pin

Alternate Video In Video Out (VIVO) port connector

10-pin

Sega Saturn (shows pinouts)
HANNspree monitors and televisions

Packing picture:

Advantages:

· Our salespersons will work with your time and 7*24*52 services for you.

· All of our products with ROHS, Reach 84items, CE & FCC certificate appliance.

· We test 100% of your order before delivery.

· Factory prices, absolutely competitive in the global electrical industry business.

· 1 Year warranty for anything you purchase from our factory!

Below is our certifications:

Our company is specializing in designing and manufacturing all kinds of DC plug and jack connectors, headphone charger plug connectors, earphone plug connctors, converter plug connectors, audio/video plug connectors etc.

1.Supply the packing in accordance with your requirements.

2.Professional design team and QC team ensure quick OEM order.

3.High quality and best price promise profitable products and long relationship.

4.24-hour online service guarantees timely reply about the details of any of our products.

5.we have ROHS & REACH compliance.

6.all of our products are high tech ,they are environmental friendly.

7.samples free.

8.Customized designs are acceptable, small order are accepted .

Any email will be replied with 24 hours. Thanks for your time !
