Home > Products > DC Power Connector > Orange color 5.5x1.7mm plug
Orange color 5.5x1.7mm plug
- 500 Piece / Pieces per Month
- Shenzhen Guangzhou or Hongkong
- T/T L/C D/P D/A Credit Card PayPal
- Website Selling Bnc Connector Auto Electrical Wire Connector
- Sell OnlineAutomotive Lock Wire Joint Connector
- OEM/ODM Factory Direct 2Mm Wire To Board Connector
- Experienced Factory Automotive Jst Connector Wire To Wire
- China Professional Automotive 2 Pin Male Female Jst Connector
- Custom Product Wire Spring Socket Connector
Product Details
Place of Origin: | Guangdong, China | Brand Name: | WUJI | Model Number: | 5517TV23L orange |
Type: | Other, DC | Application: | Power | Gender: | Male |
Product Description
Specifications
dc power plug sizes1.Durability: Over 5,000 cycles.
2.High Promotion Factory Prices.
3.High or low volume is OK

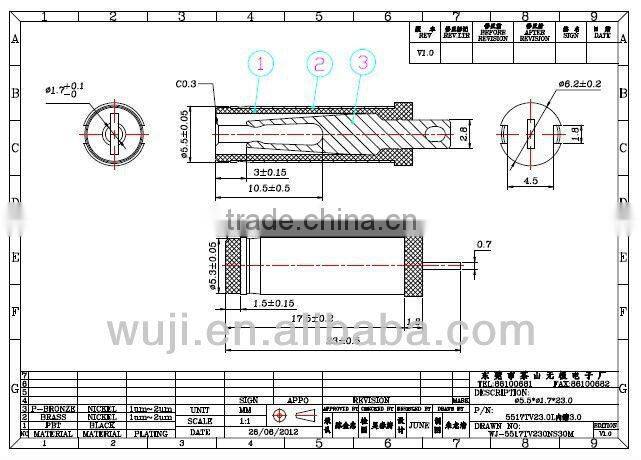

muticolor 5517 dc power plug sizes 5.5mm * 1.7mm 23L for laptop
Specifications:
1.Materials: | Copper rod (59%), POM plastic, phosphor bronze clip. |
2.Environmental friendly: | ROHS and REACH 84 items, CE & FCC certified approval. |
3.Technical index: | |
Temperature: | -20°C--+115°C |
Rated Voltage & Current: | AC500V, 0.5MA |
Insulation resistance: | >100 MΩ |
Insertion force: | 0.3-3KG |
Durability: | Over 5,000 cycles |
Salt spray test: | >24 hours |
4.Admittance: | No shorting & No breaking down. |
Tin soldering: | Temperature is about 350°C±10°C, 2-3 seconds. |
5.Save: | Under room temperature in dry area. |
6.Monthly output: | 50,000,000 pcs. |
Packages for shipment
Advantages:
. Our sales person will work with your time and 7*24*52 services for you.
· All of our products with ROHS, Reach 84items, CE & FCC certificate appliance.
· We test 100% of your order before delivery.
· Factory prices, absolutely competitive in the global electrical industry business.
· 1 Year warranty for anything you purchase from our factory!
Below is our certification:
company profile:
Dongguan Chanshan Wuji Electrical Factory is a manufacturer specializing in producing all kinds of DC plug and jack connectors, headphone charger plug connectors, earphone plug connctors, converter plug connectors, audio/video plug connectors. Our prodcts are widely useded in headphone charger connector, earphone hands free cable, car charger & car mounted charger, car audios, digital cameras & computers, the wiring plug and jack on other electrical appliances, also we make 100% according to custonmers request. our products are sold to all around China and export some of them to the world, enjoying a high reputation in the Yangtze River Delta and Pearl Delta electronic production areas.
We are adhering to the principle of"Customer first, Credit First, Quality First".
Wish can cooperate with more widely customers around the world to create a mutual benefit & friendly business relation in the future.
Contact Us
- Dongguan Chashan Wuji Electrical Factory
- Contact nameXiaofeng Li
- Phone86-0769-81859157
- AddressChaolang Industrial Zone, Chashan Town Dongguan,Guangdong
