EverExceed Solar Water Pumping System

Solar pump is a pumping device powered by solar energy,which consists of solar pumping inverter and pump, and is mainly
applied to agricultural irrigation, desert control, pasture animal husbandry, city waterscape, seawater desalination and
fresh water supply, etc.

Features:

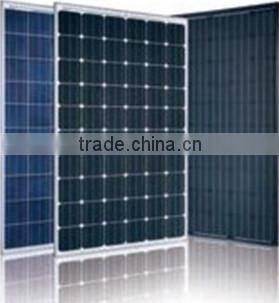

• Hight module conversion efficiency(up to 17%),through superior manufacturing technology
• Long sevice life
• Special Aluminum Frame Design
• High Transmission,low iron tempered glass
• Advanced cell encapsulation class
• Easy installation and handing for various applications
• Entire module certified to withstand high wind loads(2400 Pa) and snow loads(5400 Pa)
• ISO 9001, OHSAS 18001, ISO 14001

Features:

• Powered by solar energy, preventing grid infrastructure investment;
• Automatic operation, maintenance-free;
• Easy to install and relocate, highly optimized for general usage;
• Clean and economical, high overall benefits.

Describtion:

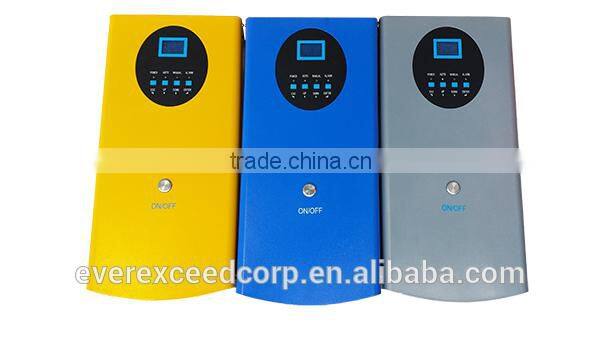

Solar pumping inverter can implement the control of the whole system operation, which drives the pump by converting DC power produced by the PV array to AC power. This inverter can adjust the output frequency according to the solar radiation
intensity in real time to implement the MPPT(maximum power point tracking).

Features:

• Compatible with 3-phase induction motors;
• Dynamic VI maximum power point tracking(MPPT)algorithm and optimized SPWM control method. Faster speed of response
• and good stability;
• Fully automatic operation. Free setting speed range based on practical situation of the system. Storage capacity for 8 years
• operational data;
• Intelligent power module used in main circuit. High reliability. 98% conversion efficiency;
• Full motor protection functions. Optional water level detecting and control circuit for overflow and idle running prevention;
• Anodized aluminum case. IP52 protection grade. Ambient temperature:-10~+50℃

EverExceed Group was established in 1980s and has its headquarter in Shenzhen, China, and subsidiaries in Singapore, UK and operations in six continents. We are manufacturing and supplying worldwide reliable power solutions with continuous innovative technologies, cost-effectiveness and good service, including industrial batteries (lead acid batteries, NiCad batteries, Lithium-ion batteries), solar power systems, UPS systems and DC power systems.

EverExceed attained the certificates of ISO9001 & ISO14001, and our products are accredited with TUV / VDE/ CE/ IEC/ UL/ RoHS/ DEKRA. Our advanced technology, professional technique, automatic equipment, experienced staff and strict operation system assure high level product quality. By now, reliable products with our brand “EverExceed” have been exported to more than 60 countries all over the world.

Warmly and sincerely welcome you to join us, and become a distributor and a partner in the future.
