CNC Cold Formed Steel Wall Panel Roll Forming Machine Making Metal Tile
|
|
Huachen is FACTORY which manufacture machine and also do export. |
We have exported over 70 countries, and familiar with your require. | |
Suitable to GI, PPGI, aluminum and Zinc coil. | |
Free 1 year gurantee, and life long service. |
Intruduction:

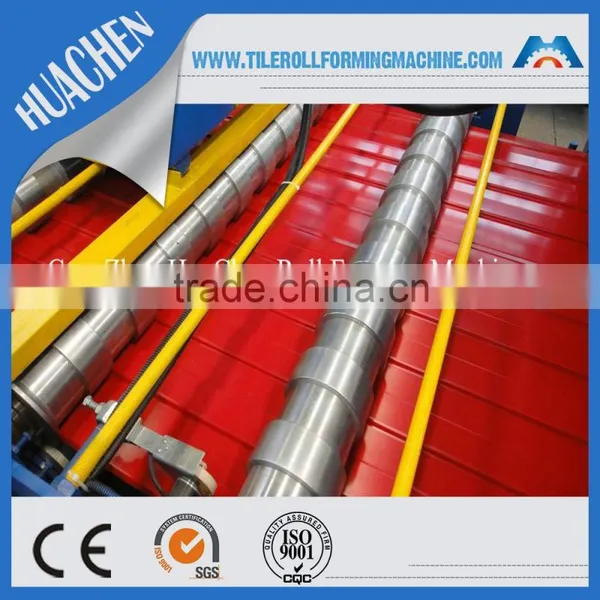

Machine consisit of uncoiler and its base, coil sheet guilding equipment, roll forming system, cutting system, hydraulic station, controling system and supporter table.
Application:

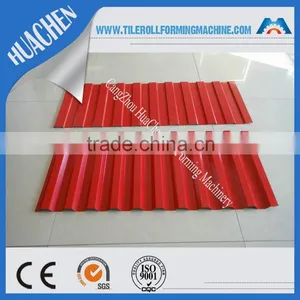

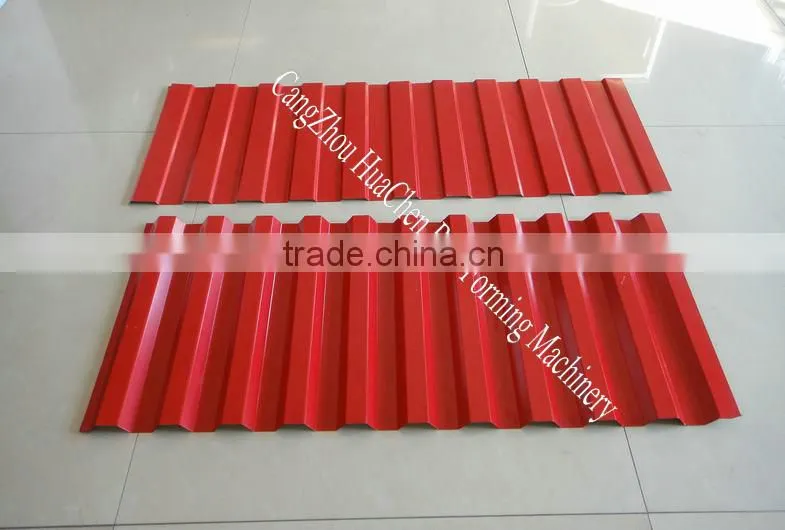

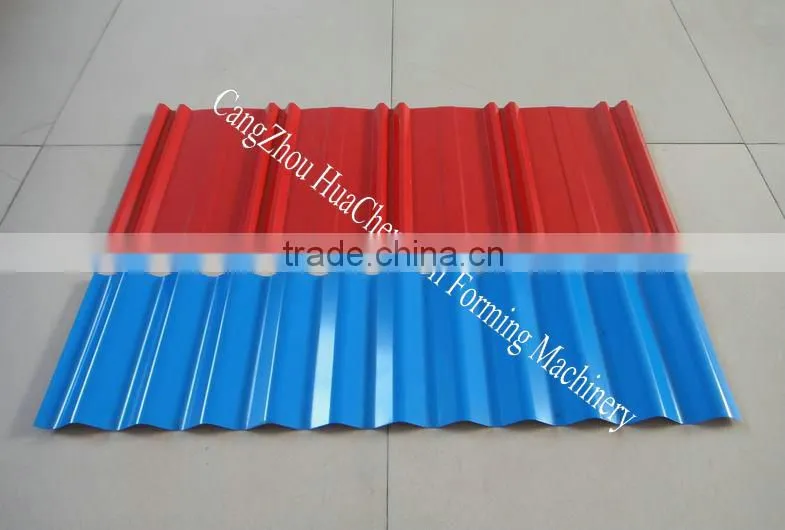

This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer with limit area or site

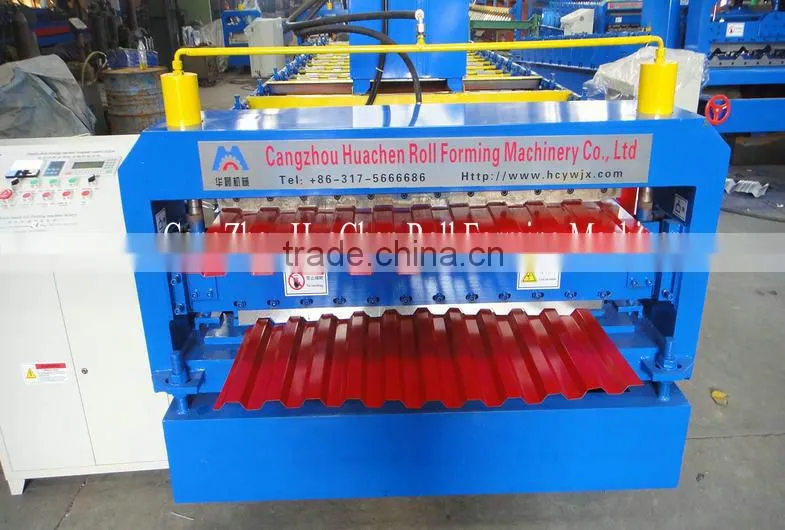

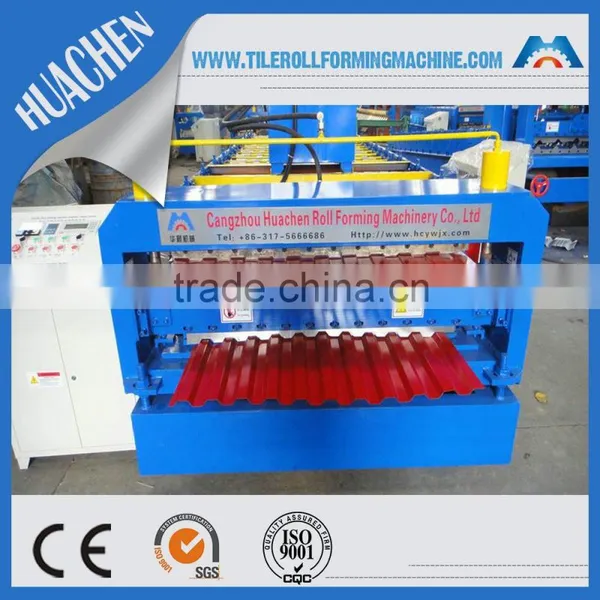

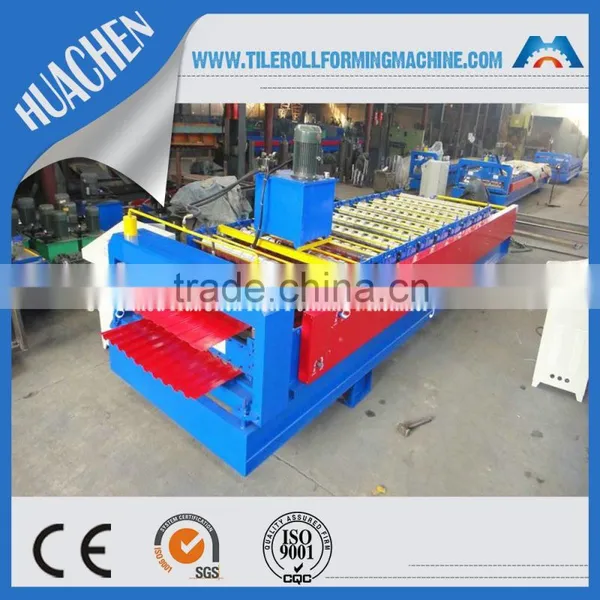

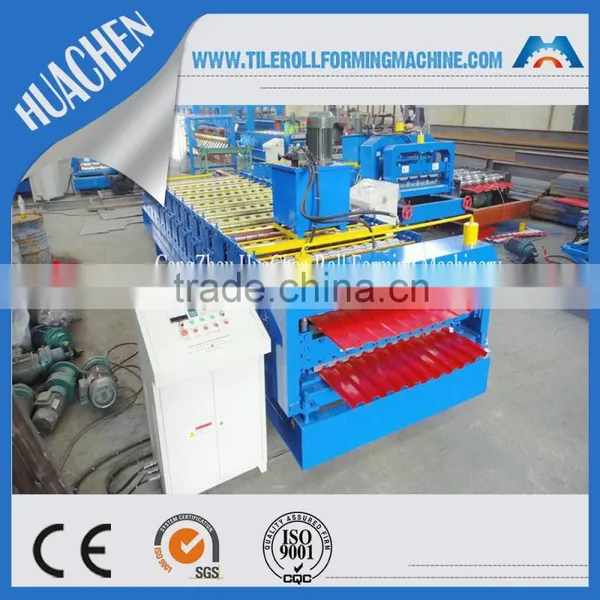

This is The Whole Line of wall panel machine
Manual Uncoiler—Roll Forming Machine—Computer Control System— Hydraulic Control System—Form Cutter
The Main Parameter For The Roll Forming Machine
No. |
main parameter of Wall Panel Bending Machine |
|
1 |
Suitable to process |
Color steel plate |
2 |
Width of the plate |
1250mm |
3 |
Roller |
Up layer:10 rows Down layer:14rows |
4 |
Dimensions |
7800*1550*1910mm |
5 |
Power |
4+4kw |
6 |
Thickness of the plate |
0.3-0.6mm |
7 |
Productivity |
15-20m/min |
8 |
Material of the cutting blade |
Cr12 |
9 |
Diameter of the roller |
Φ70mm |
10 |
Weight |
About 5.9T |
11 |
Voltage |
380V 50Hz 3phases |
14 |
Control system |
PLC control |

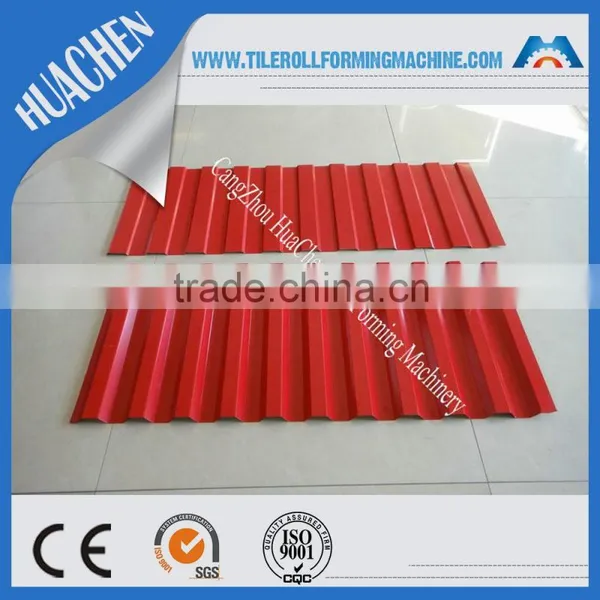

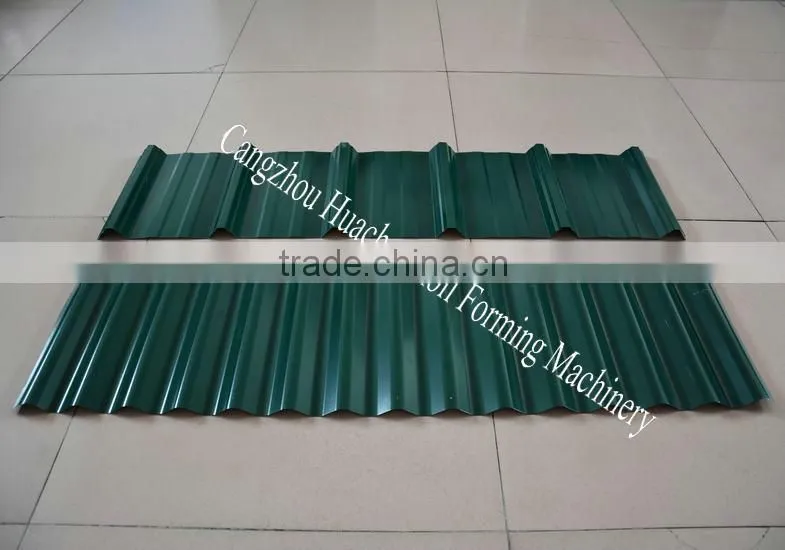

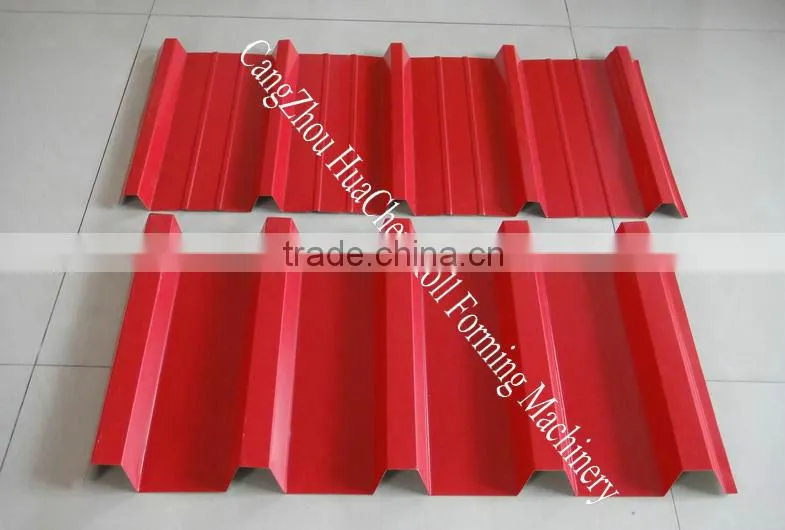

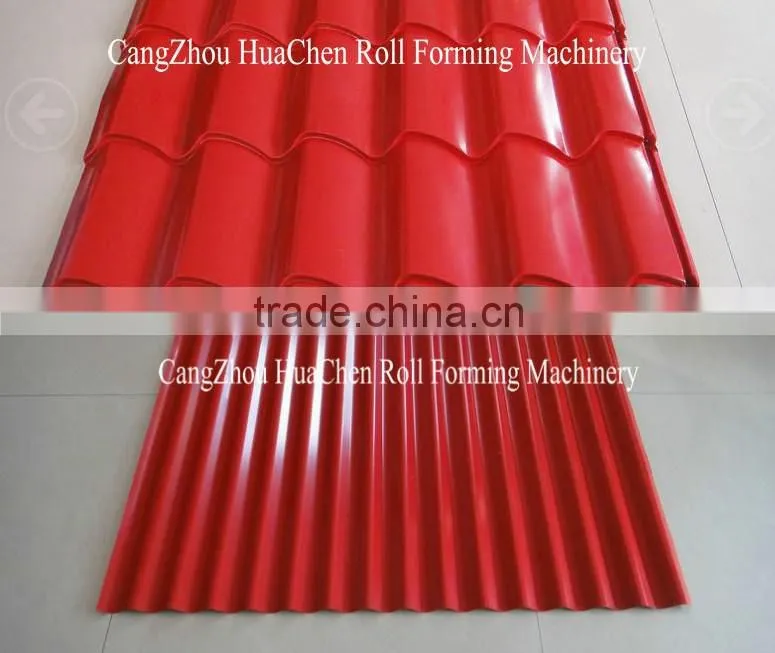

Check If The Roll Forming Machine Profile Suitable to You.
Did Not Find What You Want? We Have More Here!
The Following Parts Are FREE!
I Think You May Need These Useful Accessory.
Why Not Choose Some Hydraulic Device To Save Labours?
We have CE certification and ISO certification.
