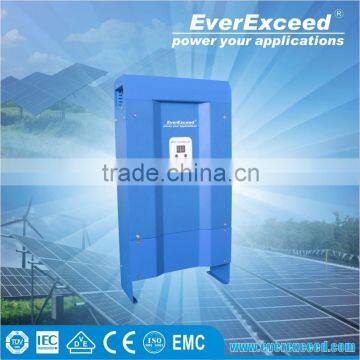

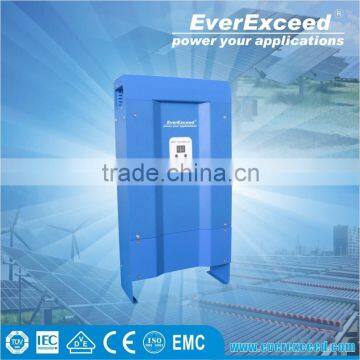

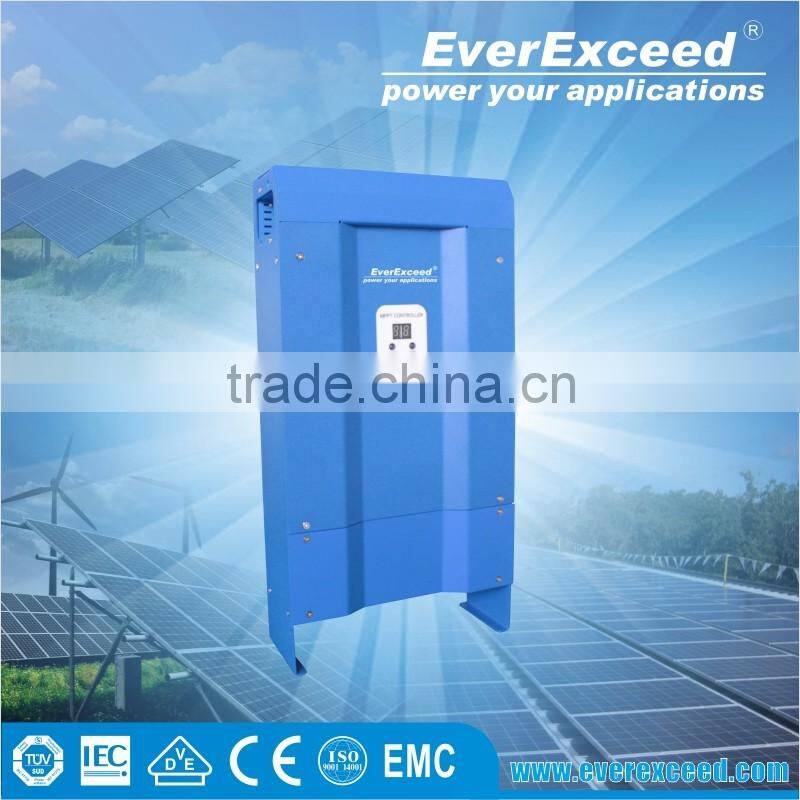

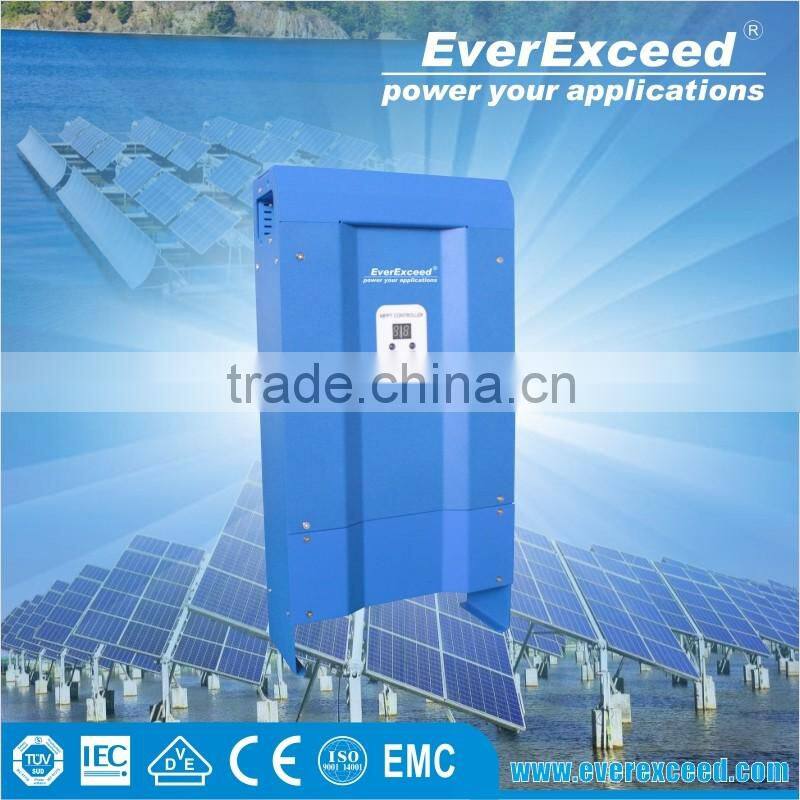

EverExceed solar charge controller with MPPT T20
Titan MPPT Solar Controller
The EverExceed Titan MPPT solar charge controller sets new standards in the area of Maximum Power Point trackers. Outstanding efficiency along with unique safety features make it a universal top-grade charge controller.
With an input voltage of up to 100 V, all kinds of solar modules can be used in various connection schemes. This charge controller combines high flexibility, maximum yields, professional battery care and an appealing design on the basis of advanced technology.
- Voltage and current regulation
- MPPT control
- Temperature compensation
- Monthly maintenance charge
- Adjustable cut-off voltages
- Battery type: gel/liquid lead battery, NiCd battery
- Integrated, automatic module swith
- Controller can be connected in unilimited parallels
- Overcharge protection
- Reverse polarity protection of module and battery
- Automatic electronic fuse
- Open circuit protection without battery
- Reverse current protection at night
- Overtemperature and overload protection
- PE connection
| Model | T15 | T20 | T25 | T30 | T40 |
| Charge mode | MPPT | ||||
| Charge stage | Constant current(MPPT), Constant voltage, floating | ||||
| System efficiency | 0.965 | ||||
| MPPT work voltage | 14-100V (12V) | ||||
| 30-100V (24V) | |||||
| 60-100V (48V) | |||||
| Low input voltage protection point | 14V (12V) | ||||
| 30V (24V) | |||||
| 60V (48V) | |||||
| Low input voltage recovery point | 18V (12V) | ||||
| 34V (24V) | |||||
| 65V (48V) | |||||
| High input voltage protection point | 110V (12/24/48V system) | ||||
| High input voltage recovery point | 100V (12/24/48V system) | ||||
| Maximum PV power | 213W(12V) | 284W(12V) | 355W(12V) | 426W(12V) | 568W(12V) |
| 426W(24V) | 568W(24V) | 710W(24V) | 852W(24V) | 1136W(24V) | |
| 852W(48V) | 1136W(48V) | 1420W(48V) | 1704W(48V) | 2272W(48V) | |
| Max charging current | 15A | 20A | 25A | 30A | 40A |
| Dimension | 373*193*72.5 mm | ||||
| Net weight | 3.58 kg | ||||
Displays
Multifunction graphical LCD display with backlighting
Configuration via display unit
Accessories
External temperature sensor
RS232 communication cable for connected with PC
