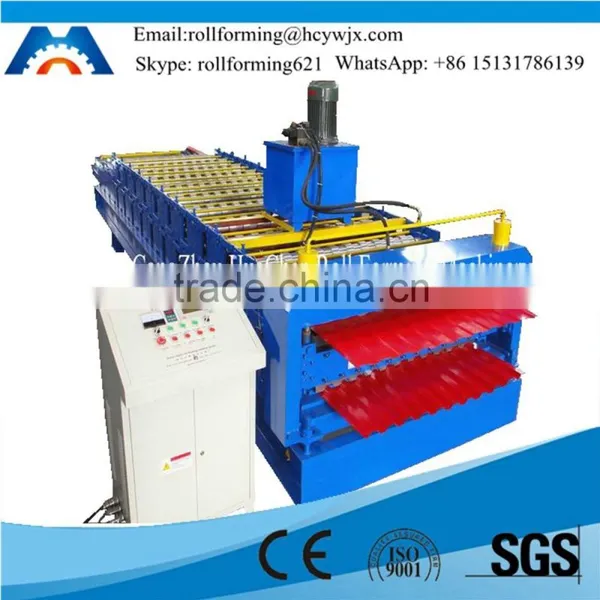

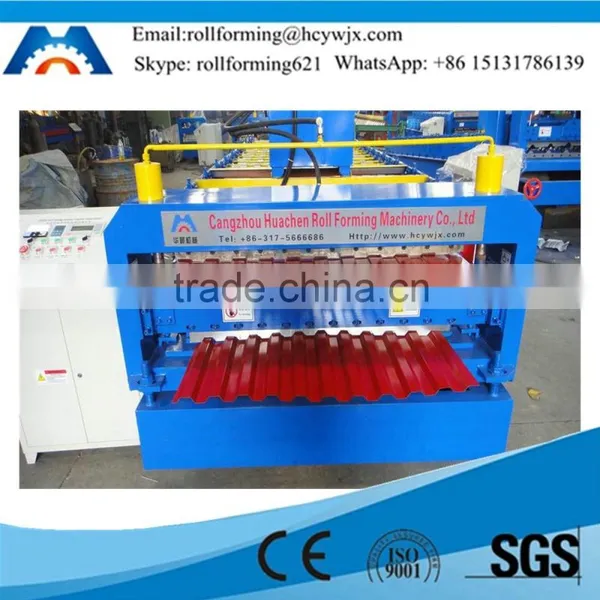

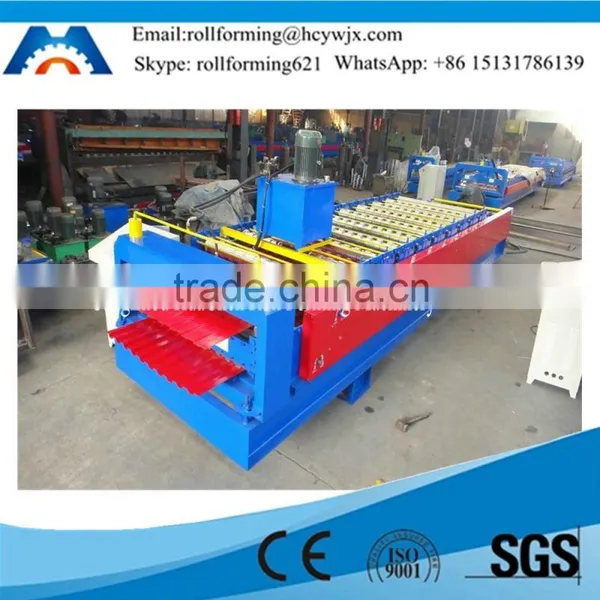

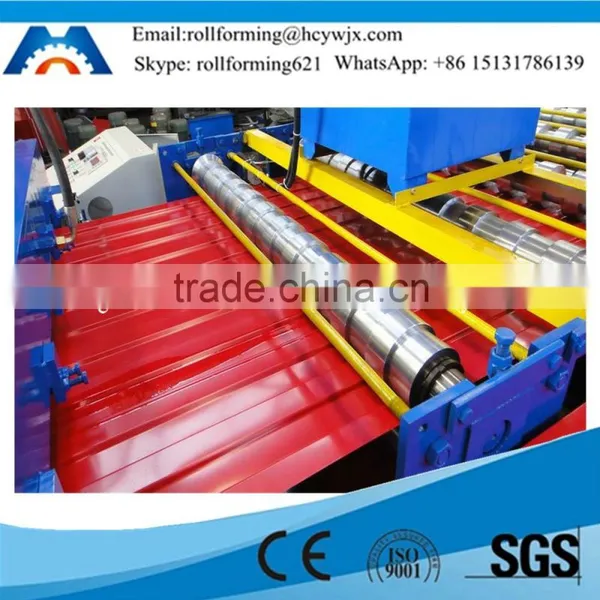

Color Steel Iron Wall Panel Making Machine Production Line
Application
This wall panel bending machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer with limit area or site.
1.Working Flow: Color Steel Iron Wall Panel Making Machine Production Line
Manual Uncoiler- Wall Panel Bending Machine - Computer Control System - Hydraulic Control System - Cutting
2. Main parameters: Color Steel Iron Wall Panel Making Machine Production Line
No. |
main parameter of Wall Panel Bending Machine |
|
1 |
Suitable to process |
Color steel plate |
2 |
Width of the plate |
1250mm |
3 |
Roller |
Up layer:10 rows Down layer:14rows |
4 |
Dimensions |
7800*1550*1910mm |
5 |
Power |
4+4kw |
6 |
Thickness of the plate |
0.3-0.6mm |
7 |
Productivity |
15-20m/min |
8 |
Material of the cutting blade |
Cr12 |
9 |
Diameter of the roller |
Φ70mm |
10 |
Weight |
About 5.9T |
11 |
Voltage |
380V 50Hz 3phases |
14 |
Control system |
PLC control |

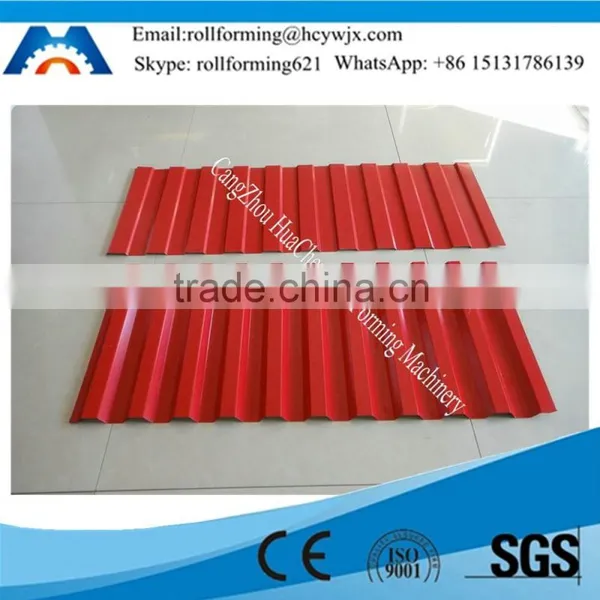

3. Product Sample: Color Steel Iron Wall Panel Making Machine Production Line

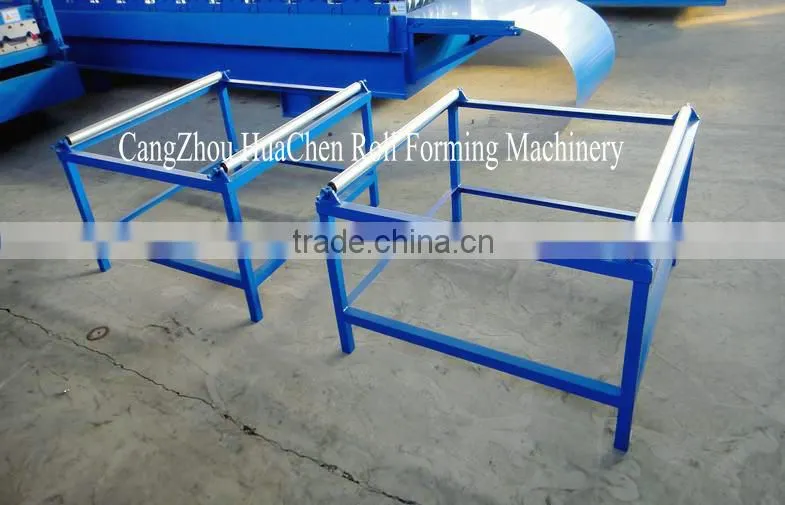

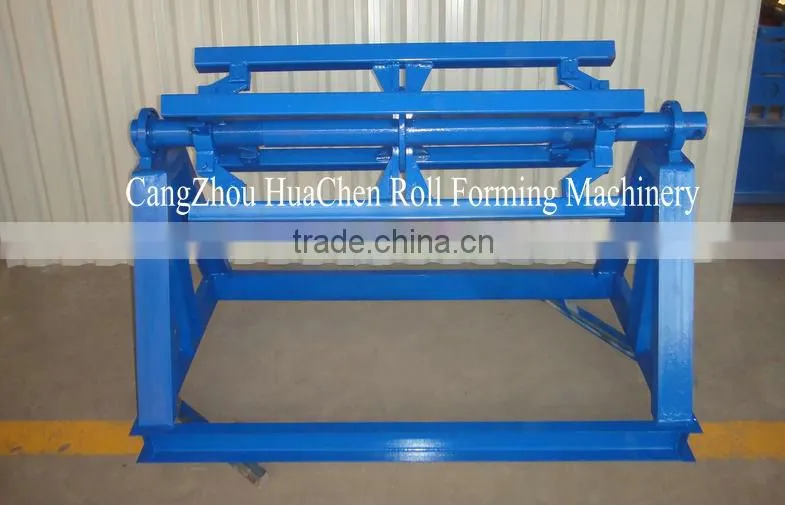

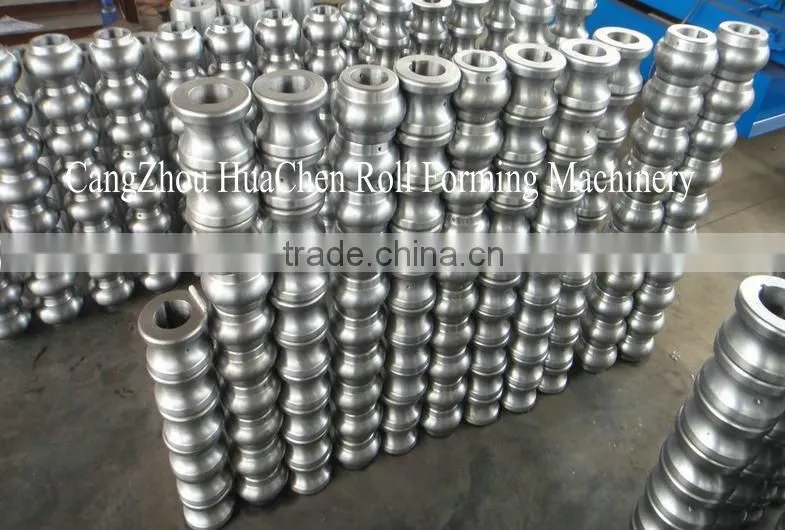

4. Parts: Color Steel Iron Wall Panel Making Machine Production Line
5. About Our Factory: Our factory specilized in roll forming equipment and automatic production line. We have years of export experience and we have exported prodects for more than 70 countrys. We have a professional design team and will design and manufacture according to customer's requirement.
6. Certification:
We have CE certification and ISO certification.
7. Customer Abroad:
At present, our products has been exported to moren than 70 countries and regions over the world.
8. Way To Visit Us:
From Beijing(Tianjin): High speed train From Beijing South to Cangzhou West (1 hour).
From Shanghai (Wuxi, Hangzhou): High speed train From Shanghai Hongqiao to Cangzhou West(4.5 hours).
If any questions,you can call me mobile phone at any times:0086-15131786139
Name Card:
Thank you for your attention about our products. Your support is our progressive force
Hoping have a chance to cooperate with you. Thanks
