Place of Origin Guangdong, China
Brand Name EverExceed
Model Number ESCC-48V200-A
Specification Normal
Application Commercial

EverExceed reliable, safe and green Solar energy products:

1. Solar panels / solar modules : monocrystalline solar panels / crystalline solar pales for on-grid and off-grid residential and commercial systems.

2. Solar charge controller: high-quality PWM solar charge controller / MPPT solar charge controller with competitive package to provide an economical controller for PV array systems.

3. Solar Inverter: on-grid solar inverter / off-grid solar inverter / single phase solar inverter / three phase solar inverters for customers worldwide.

Why choose us?

1) Nearly 30 years leading manufacturer;

2) Worldwide brand registered in more than 70 countries;

3) Comprehensive certificates approval: TUV / VDE / CE / ISO / IEC / DEKRA / ROHS

4) Strict management system and quality control, 100% inspection

5) A professional experienced team to provide you high-quality service.

EverExceed 48V/220V/348V 100A~200A Off-grid Multiple Solar Charge Controller

ESCC-48VXX-A

ESCC-220VXX-A

ESCC-348VXX-A

EverExceed 48V 200A Off-grid Multiple Solar Charge Controller

Describtion

This PWM solar charge controller offers smart charging circuit with competitive package to provide an
economical controller for PV array systems.

Features
  • Multiple solar arrays input control
  • Adopting sectional sequential current limiting charging mode, automatically control PV array to connect or disconnect
  • Adopting MOSFET with low loss and long life as the main switching component of controller
  • Accurate measurement of PV power generation amount display
  • With the battery over voltage, low voltage dry contact, diesel machine start up, control fault dry contact etc. function
  • User can set the working parameter of the system, every item display parameter setting
  • With historic records and password protection function
Option Function
  • Diesel machine starting dry contact function
  • Second time power off function optional
  • 48V solar controller standard configuration PV input, battery, loading with breaker, the other series controllers without above breaker

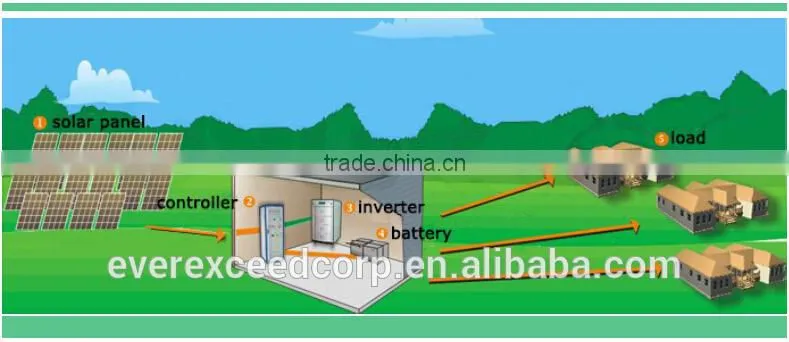

User Diagram

EverExceed 48V 200A Off-grid Multiple Solar Charge Controller

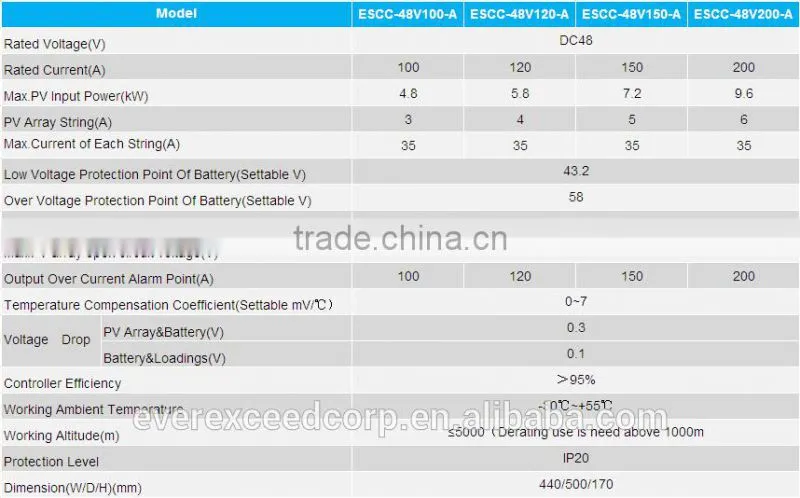

Specification

EverExceed 48V 200A Off-grid Multiple Solar Charge Controller

EverExceed 48V 200A Off-grid Multiple Solar Charge Controller

EverExceed 48V 200A Off-grid Multiple Solar Charge Controller
