Help CenterSolar Panel Material PV Ribbon Wire for Solar Cell Soldering
Related Products
-
Solar PV Busbar Used in Solar Module ManufacturingUS$ 16.5 - 21MOQ: 1 Kilogram -
Sn60 Pb40 Interconnection Ribbon 4mm Width .0.2mm ThicknessUS$ 10 - 40MOQ: 1 Kilogram
-
Solar PV Busbar,PV RibbonUS$ 10 - 40MOQ: 1 Kilogram
-
Sn62 Pb36Ag2 Interconnection Ribbon 5mm Width .0.3mm ThicknessUS$ 10 - 40MOQ: 1 Kilogram
-
Photovoltaic Solar Tab Wire for Solar Panel ManufacturingUS$ 16.5 - 21MOQ: 1 Kilogram
Specifications
1.Raw material TU1 Cu>99.95%2.TUV ISO9001 approved
3.Rich stock
4.Yield strength<70MPa
Mechanical Property:
1,Elongation: E-Soft>=20% U-Soft>=15%
2,Tensile strength:>=170MPa
3,Side camber: L<=7mm/1000mm
4,Soldering tin melting point: 180−230°c
Electric Resistivity of Copper:
TU1<=0.0618 Ω • m m2/m; T2<=0.01724 Ω•m m2/m
Core Copper of TU1 Off-Cu or ETP1:
1,Copper Purity >=99.97%, Oxygen<=10ppm
2,Resistivity:ρ20<=0.017241Ω • m m2/m
Electric Resistivity of Ribbon:
(2.1−2.5)X10-2 • mm2/m
Composition of Plated Material:
1) Lead series products:
A,Sn 60%, Pb 40%
B,Sn 63%, Pb 37%
C,Sn 62%, Pb 36%, Ag 2%
D,Sn 60%, Pb 39.5%, Ag 0.5%
2) Lead-free series products:
A.Sn 96.5%, Ag 3.5%(Bi)
B.Sn 97%, Ag 3% and so on
Specification
| 0.35*6.0 | 0.35*8.0 |
| 0.29*6.0 | 0.20*8.0 |
| 0.30*6.0 | 0.20*5.0 |
| 0.40*6.0 | 0.29*5.0 |
| 0.20*6.0 | 0.25*5.0 |
| 0.25*7.0 | 0.24*3.8 |

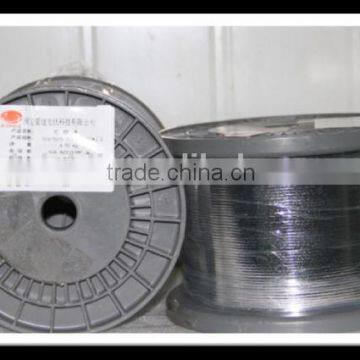

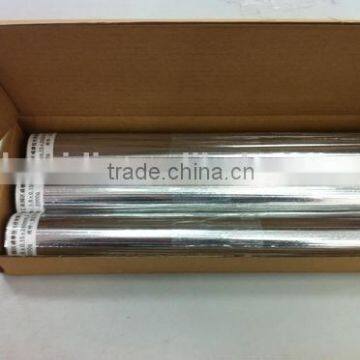

1. 4.5kgs per spool with vacuum packing.4 spoolsin a carton box with shockproof &waterproof for transportation.
2. Cutting packing
Delivery detail: samples can be delivered out witnin 5 workdays upon receiving payment via DHL/Fedex/EMS
BAODING EDEL PHOTOVOLTAIC TECHNOLOGY CO.,LTD is a high-tech enterprises which specializes in photovoltaic products research and development ,production and sales.The main products are tabbing wire and bus bar.
