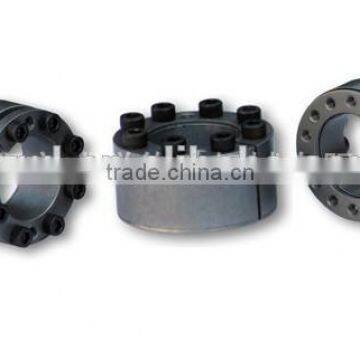

Z Series-Keyless Locking device Z8:
1.Shaft collar selection method
Choose shaft collar according to load
1.select the shaft collar should meet:
a. transmitted torque Mt ≥ M
b. axial force:Ft ≥ Fx
c. transfer force:Ft ≥ F2X+(M X10-3)2
d. radial force Pt ≥ Fr/d.1 X103
2,the rated load of a connection which to use numerous shaft sleeve.
When Rated load of a shaft sleeve is less than required transfer load, then can set more than two shaft sleeves in series, the total rated load:
Mtn=m.Mt
Type in: Mtn - n shaft sleeve’s rated load:M - load coefficient (m value shown in chart A)
|
Num. Of shaft collar N
|
m |
||
Z1shaft collar |
Z2, Z3,Z4,Z5shaft collar |
Z12, Z15,Z17,Z18 shaft collar |
|
1 |
1.00 |
1.0 |
1.0 |
2 |
1.56 |
1.8 |
1.8 |
3 |
1.86 |
2.7 |
- |
4 |
2.03 |
- |
- |

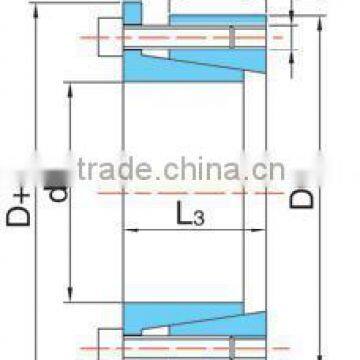

2.picture show
Mark example:
Inner diameter=20mm, outer diameter=47 Z8type shaft locking device; shaft locking device Z8-20 x 47 JB/T7934-1999

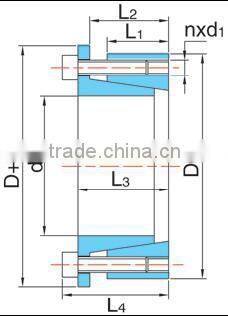

Z8 Type 's basic size and parameter
| basic size | n | nominal load | surface press between sleeve and coupling Pf N/mm2 | screw tighting torque MA N·M | weight kg | |||||||
| d | D | L1 | L2 | L3 | L4 | d1 | axial force Ft | torque | ||||
| kN | Mt | |||||||||||
| mm | kN·m | |||||||||||
| 20 | 47 | 17 | 22 | 28 | 34 | M6 | 5 | 30 | 0.29 | 220 | 17 | 0.25 |
| 22 | 0.32 | 200 | ||||||||||
| 24 | 50 | 0.37 | 200 | 0.27 | ||||||||
| 25 | 6 | 36 | 0.45 | 215 | ||||||||
| 28 | 55 | 0.5 | 200 | 0.32 | ||||||||
| 30 | 0.54 | 190 | 0.35 | |||||||||
| 32 | 60 | 8 | 48 | 0.77 | 215 | 0.37 | ||||||
| 35 | 0.84 | 190 | 0.34 | |||||||||
| 38 | 65 | 0.91 | 195 | 0.4 | ||||||||
| 40 | 0.96 | 190 | 0.38 | |||||||||
| 45 | 75 | 20 | 25 | 33 | 41 | M8 | 7 | 77 | 1.75 | 230 | 41 | 0.63 |
| 50 | 80 | 1.93 | 210 | 0.68 | ||||||||
| 55 | 85 | 8 | 88 | 2.45 | 215 | 0.73 | ||||||
| 60 | 90 | 2.7 | 190 | 0.78 | ||||||||
| 63 | 95 | 28 | 41 | 9 | 100 | 3.18 | 205 | 0.89 | ||||
| 65 | 95 | 33 | 41 | 3.25 | 200 | 0.83 | ||||||
| 70 | 110 | 24 | 30 | 40 | 50 | M10 | 8 | 141 | 5 | 220 | 83 | 1.33 |
| 75 | 115 | 5.25 | 200 | 1.4 | ||||||||
| 80 | 120 | 5.6 | 190 | 1.48 | ||||||||
| 85 | 125 | 9 | 159 | 6.75 | 200 | 1.55 | ||||||
| 90 | 130 | 7.1 | 190 | 1.63 | ||||||||
| 95 | 135 | 10 | 176 | 8.35 | 200 | 1.7 | ||||||
| 100 | 145 | 26 | 32 | 44 | 56 | M12 | 8 | 205 | 10.3 | 210 | 145 | 2.6 |
| 110 | 155 | 11.25 | 190 | 2.8 | ||||||||
| 120 | 165 | 9 | 231 | 13.9 | 210 | 3 | ||||||
| 130 | 180 | 34 | 40 | 52 | 64 | 12 | 308 | 20 | 190 | 4.6 | ||
| 140 | 190 | 54 | 68 | M14 | 9 | 317 | 22.25 | 180 | 230 | 4.9 | ||
| 150 | 200 | 10 | 352 | 26.3 | 190 | 5.2 | ||||||
| 160 | 210 | 11 | 287 | 31 | 190 | 5.5 | ||||||
| 170 | 225 | 44 | 50 | 64 | 78 | 12 | 422 | 35.9 | 150 | 7.75 | ||
| 180 | 235 | 38 | 145 | 8.15 | ||||||||
| 190 | 250 | 15 | 528 | 50.1 | 170 | 9.5 | ||||||
| 200 | 260 | 15 | 52.8 | 160 | 9.9 | |||||||
