Z Series-Keyless Locking device Z6:
1.Shaft collar selection method
Choose shaft collar according to load
1.select the shaft collar should meet:
a. transmitted torque Mt ≥ M
b. axial force:Ft ≥ Fx
c. transfer force:Ft ≥ F2X+(M X10-3)2
d. radial force Pt ≥ Fr/d.1 X103
2,the rated load of a connection which to use numerous shaft sleeve.
When Rated load of a shaft sleeve is less than required transfer load, then can set more than two shaft sleeves in series, the total rated load:
Mtn=m.Mt
Type in: Mtn - n shaft sleeve’s rated load:M - load coefficient (m value shown in chart A)
Num. Of shaft collar N
| m | ||
Z1shaft collar | Z2, Z3,Z4,Z5shaft collar | Z12, Z15,Z17,Z18 shaft collar | |
1 | 1.00 | 1.0 | 1.0 |
2 | 1.56 | 1.8 | 1.8 |
3 | 1.86 | 2.7 | - |
4 | 2.03 | - | - |

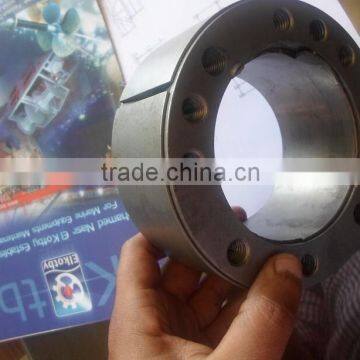

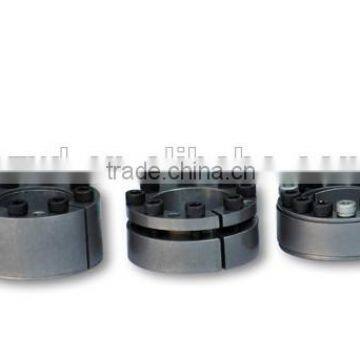

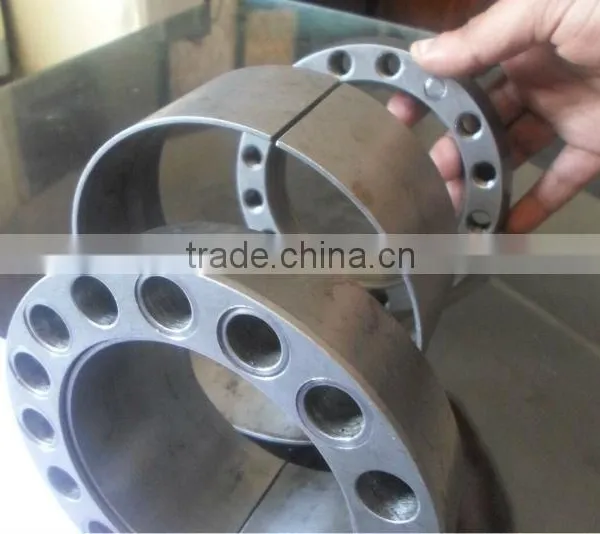

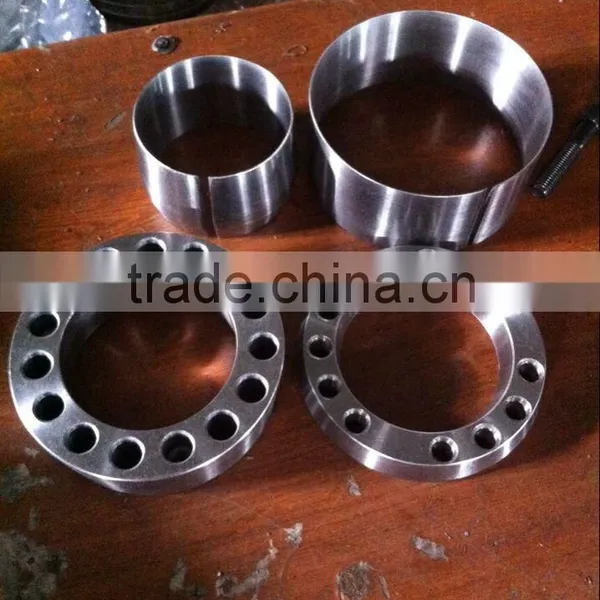

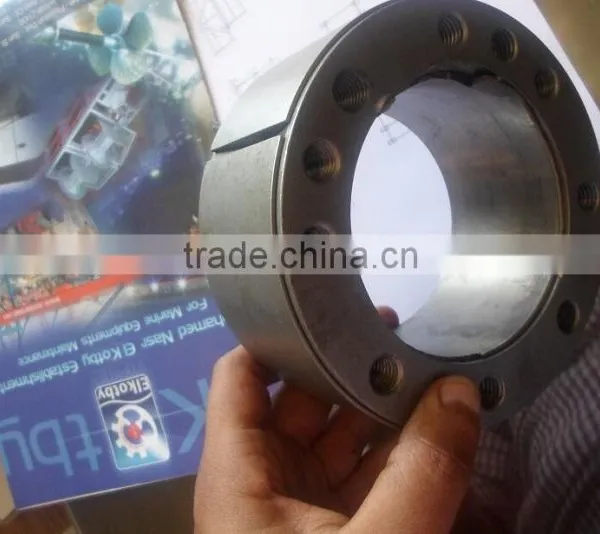

2.picture show
Mark example:
Inner diameter=20mm, outer diameter=55mm Z6sahft collar; shaft collar Z6-20 x55
GB/T7934-1999
Z6 type shaft collar basic size and parameter
| basic size | nominal load | oket head cap screw | Press between sleeve and shaft Pf | Press between sleeve and Oldham Coupling Hub Pf | Mass Kg | |||||||||
| d | D | I | L | L1 | d1 | L | Mt kN·m | d1 | n | MA | ||||
| Ft | ||||||||||||||
| kN | N·M | |||||||||||||
| 14 | 55 | 17 | 30 | 22 | 62 | 38 | 18 | 127 | M8 | 3 | 25 | 208 | 52.5 | 0.48 |
| 16 | 55 | 17 | 30 | 22 | 62 | 38 | 18 | 142 | M8 | 3 | 25 | 181 | 52.5 | 0.47 |
| 18 | 55 | 17 | 30 | 22 | 62 | 38 | 18 | 157 | M8 | 3 | 25 | 161 | 52.5 | 0.46 |
| 19 | 55 | 17 | 30 | 22 | 62 | 38 | 18 | 165 | M8 | 3 | 25 | 152 | 52.5 | 0.46 |
| 20 | 55 | 17 | 30 | 22 | 62 | 38 | 18 | 172 | M8 | 3 | 25 | 145 | 52.5 | 0.45 |
| 22 | 55 | 17 | 30 | 22 | 62 | 38 | 25.5 | 285 | M8 | 3 | 35 | 186 | 75 | 0.44 |
| 24 | 55 | 17 | 30 | 22 | 62 | 38 | 25.5 | 307 | M8 | 3 | 35 | 170 | 75 | 0.42 |
| 25 | 55 | 17 | 30 | 22 | 62 | 38 | 25.5 | 315 | M8 | 3 | 35 | 163 | 75 | 0.41 |
| 28 | 55 | 17 | 30 | 22 | 62 | 38 | 31.5 | 435 | M8 | 3 | 41 | 175 | 89 | 0.39 |
| 30 | 55 | 17 | 30 | 22 | 62 | 38 | 31.5 | 472 | M8 | 3 | 41 | 163 | 89 | 0.37 |
| 24 | 65 | 17 | 30 | 22 | 72 | 38 | 37.4 | 440 | M8 | 5 | 30 | 244 | 90 | 0.62 |
| 25 | 65 | 17 | 30 | 22 | 72 | 38 | 37.4 | 460 | M8 | 5 | 30 | 234 | 90 | 0.61 |
| 28 | 65 | 17 | 30 | 22 | 72 | 38 | 43.6 | 600 | M8 | 5 | 35 | 243 | 105 | 0.58 |
| 30 | 65 | 17 | 30 | 22 | 72 | 38 | 43.6 | 640 | M8 | 5 | 35 | 227 | 105 | 0.56 |
| 32 | 65 | 17 | 30 | 22 | 72 | 38 | 43.6 | 690 | M8 | 5 | 35 | 213 | 105 | 0.55 |
| 35 | 65 | 17 | 30 | 22 | 72 | 38 | 52.5 | 910 | M8 | 5 | 41 | 234 | 126 | 0.51 |
| 38 | 65 | 17 | 30 | 22 | 72 | 38 | 52.5 | 990 | M8 | 5 | 41 | 216 | 126 | 0.48 |
| 40 | 65 | 17 | 30 | 22 | 72 | 38 | 52.5 | 1050 | M8 | 5 | 41 | 205 | 126 | 0.46 |
| 30 | 80 | 20 | 33 | 25 | 87 | 41 | 52.4 | 780 | M8 | 7 | 30 | 232 | 87 | 1.01 |
| 32 | 80 | 20 | 33 | 25 | 87 | 41 | 52.4 | 830 | M8 | 7 | 30 | 217.5 | 87 | 0.99 |
| 35 | 80 | 20 | 33 | 25 | 87 | 41 | 61 | 1060 | M8 | 7 | 35 | 232 | 102 | 0.96 |
| 38 | 80 | 20 | 33 | 25 | 87 | 41 | 61 | 1150 | M8 | 7 | 35 | 214 | 102 | 0.92 |
| 40 | 80 | 20 | 33 | 25 | 87 | 41 | 61 | 1220 | M8 | 7 | 35 | 203 | 102 | 0.89 |
| 42 | 80 | 20 | 33 | 25 | 87 | 41 | 73.5 | 1540 | M8 | 7 | 41 | 233 | 122 | 0.86 |
| 45 | 80 | 20 | 33 | 25 | 87 | 41 | 73.5 | 1650 | M8 | 7 | 41 | 217 | 122 | 0.82 |
| 48 | 80 | 20 | 33 | 25 | 87 | 41 | 73.5 | 1760 | M8 | 7 | 41 | 203 | 122 | 0.76 |
| 50 | 80 | 20 | 33 | 25 | 87 | 41 | 73.5 | 1830 | M8 | 7 | 41 | 195 | 122 | 0.73 |
3.packaging
China Lowest price Z6 Keyless Locking Assembly,Tighten screws Fasteners,set screw with nut lock
China Lowest price Z6 Keyless Locking Assembly,Tighten screws Fasteners,set screw with nut lock
China Lowest price Z6 Keyless Locking Assembly,Tighten screws Fasteners,set screw with nut lock
China Lowest price Z6 Keyless Locking Assembly,Tighten screws Fasteners,set screw with nut lock
