metal roof ridge cap roll forming machine, ridge cap tile roll forming machine
- 20 Set / Sets per Month
- Tianjin New Port
- T/T L/C D/P D/A Credit Card PayPal
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- Jotun JT-SDJ Industrial Automatic Metal Sheet Surface Polishing Machine
- Large Metal Sheet Metal Workpiece Processing Deburring Chamfering Plane Belt Polishing Machine
- Heavy Duty Automatic Wide Belt Metal Sand Deburring Machine
- Metal Plate Deburring and Rust Removal Machine Steel Plate Sand Belt Drawing and Polishing Equipment Flat Polishing Machine
- Metal Flat Sheet Laser Cutting Parts Deburring Grinding Polishing Machine Manufacturer
Product Details
Place of Origin: | Hebei, China | Brand Name: | Huachen | Model Number: | HC298-475 Roll Forming Machine |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

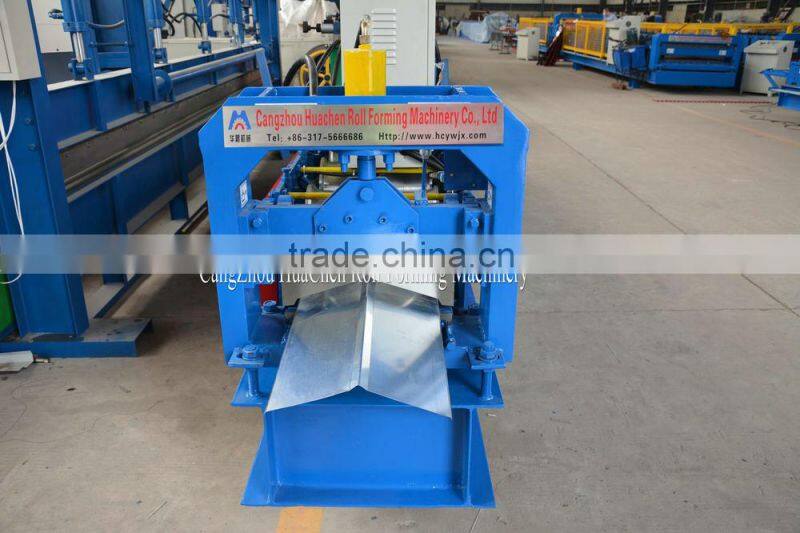

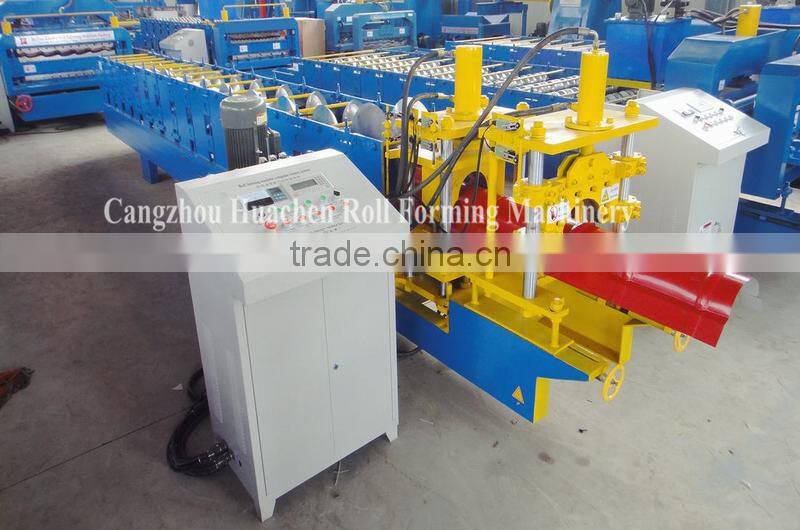

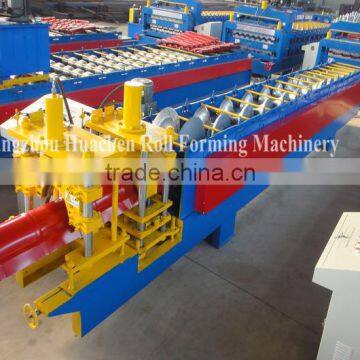

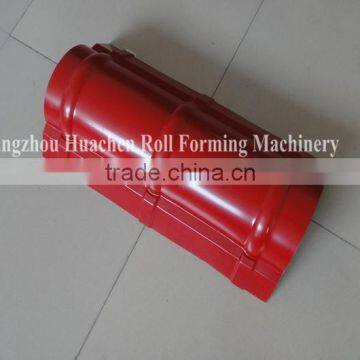

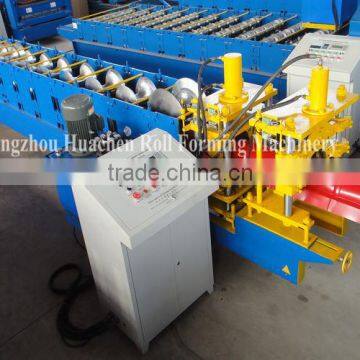

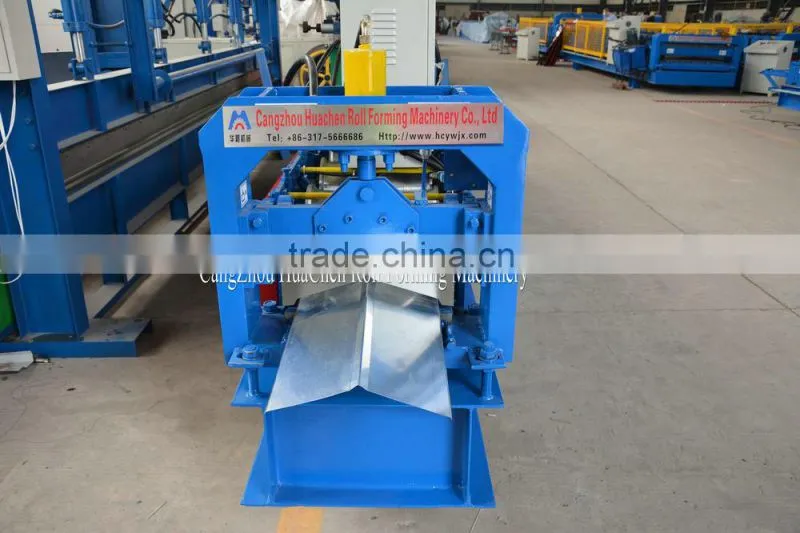

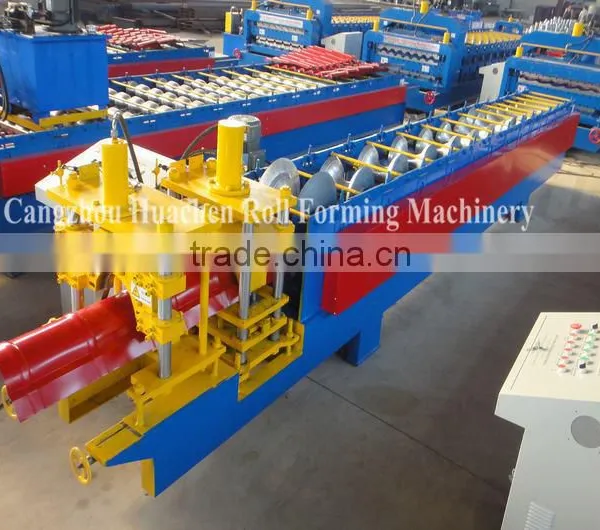

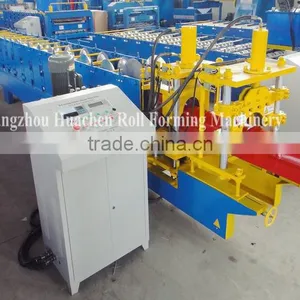

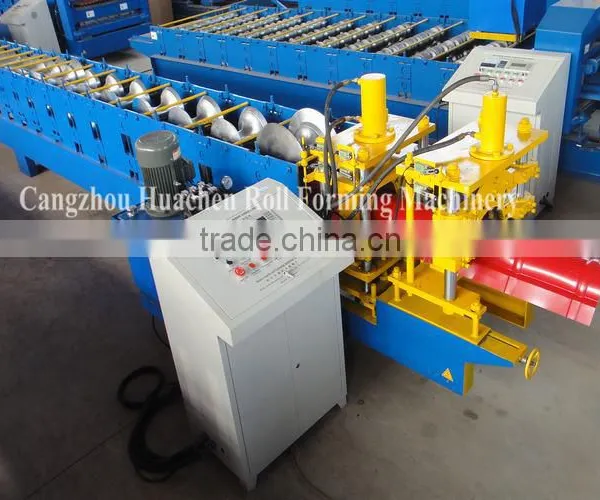

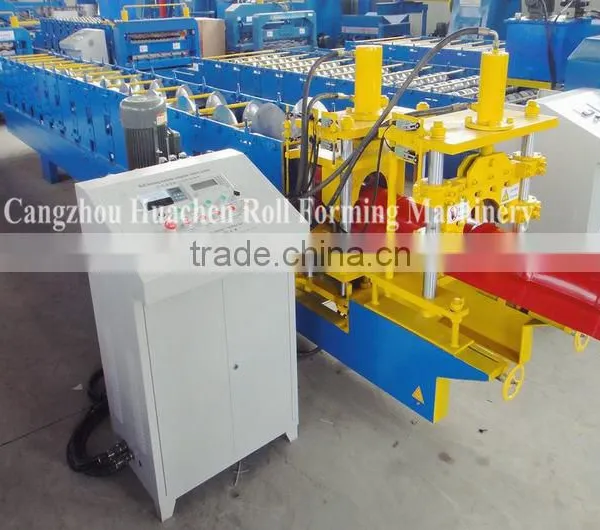

1.Pictures of ridge cap roll forming machine

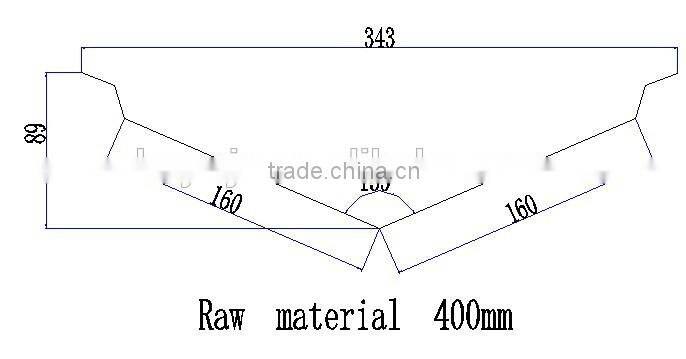

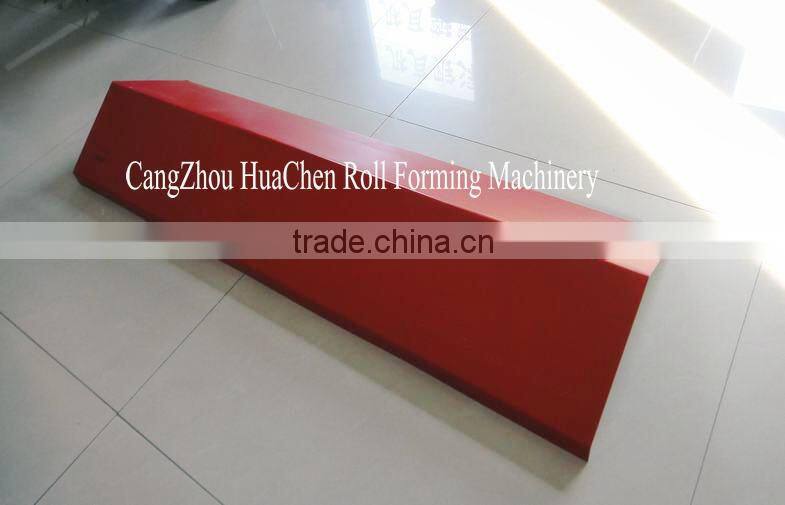

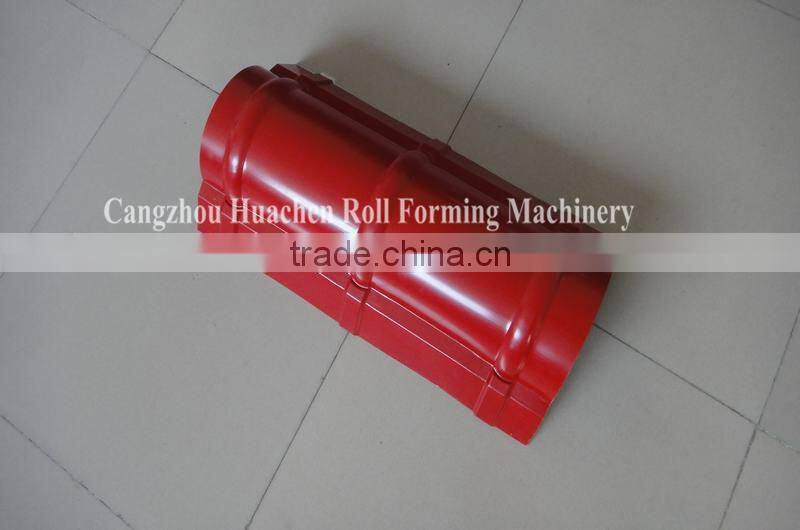

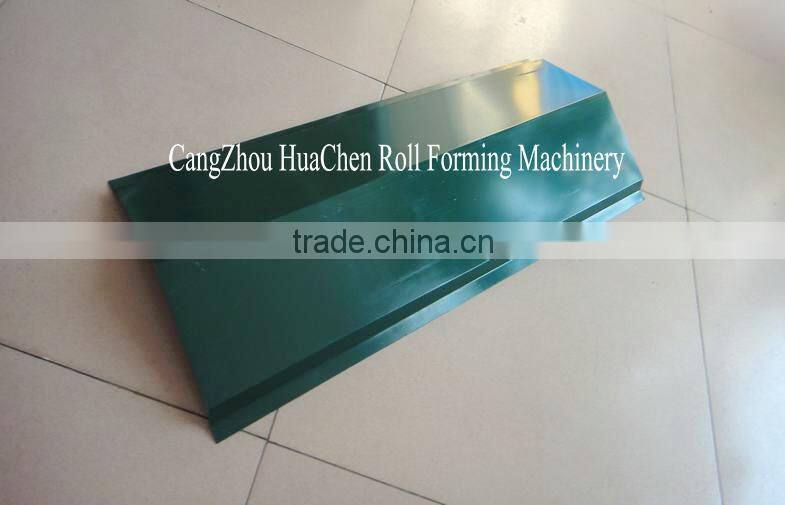

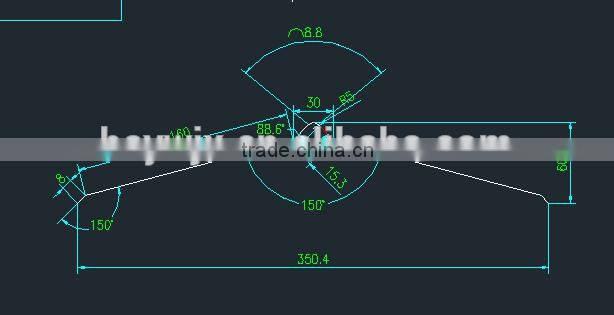

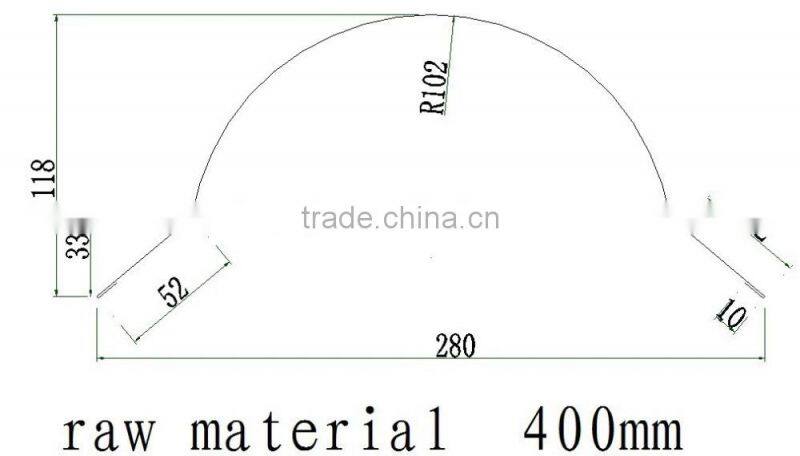

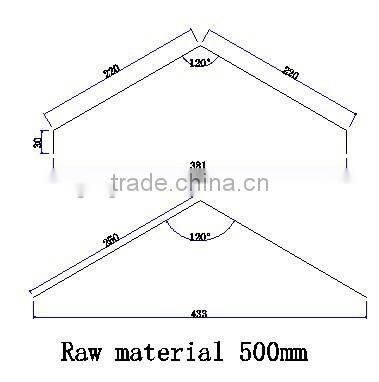

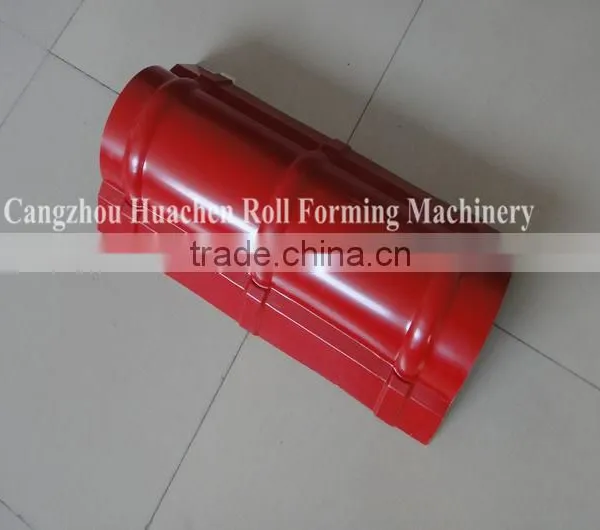

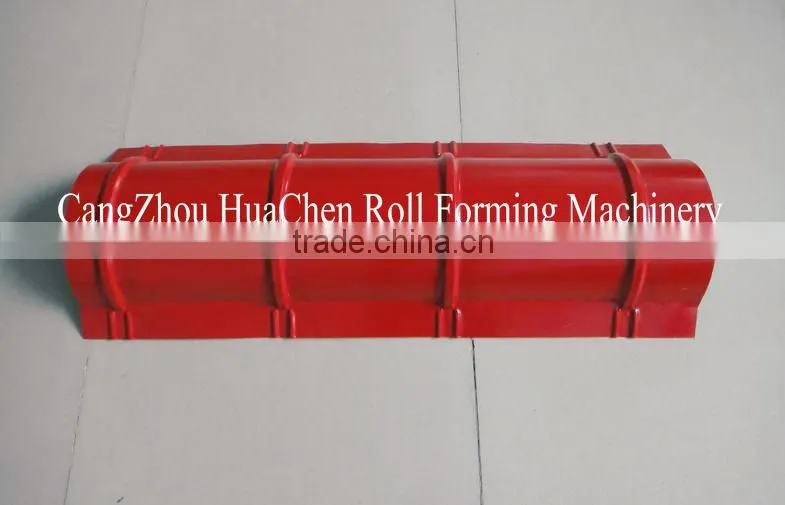

2.other profiles of ridge cap roll forming machine
3.Profile Technical Specification of color steel tile ridge cap roll forming machine
NO | Model | HC color steel ridge cap tile roll forming machine |
1 | Suitable Material | color steel sheet, galvanized steel sheet, aluminium sheet |
2 | Width of Material | as you required |
3 | Thickness of Material | 0.3-0.6mm or as your needs |
4 | Working Speed | 8-10m/min |
5 | Main Motor Power | 3 KW with cycloidal reducer |
6 | Hydraulic Station Power | 3 KW |
7 | Electrical Control System | PLC control system |
8 | Shaft Diameter | 70mm |
9 | Roller Station | 12 rows or depends on profile drawing |
10 | Dimension | 6120*1500*1510mm |
11 | Weight | about 2T |
12 | Voltage | 380V 3phase 50HZ or as the customer's requirements |
13 | Material of Roller | high grade 45# forged steel plated with hard chrome plating |
14 | Material of Cutting | Cr12 mould steel with quenched treatment |
15 | Working Time | can be 24 hours |
16 | Workers | 1-2 only |
4. The Chart of Process Flow of color steel tile ridge cap roll forming machine
Manual Uncoiler—Roll Forming Machine—Computer Control System—Hydraulic Control System —Pressing—Form Cutter

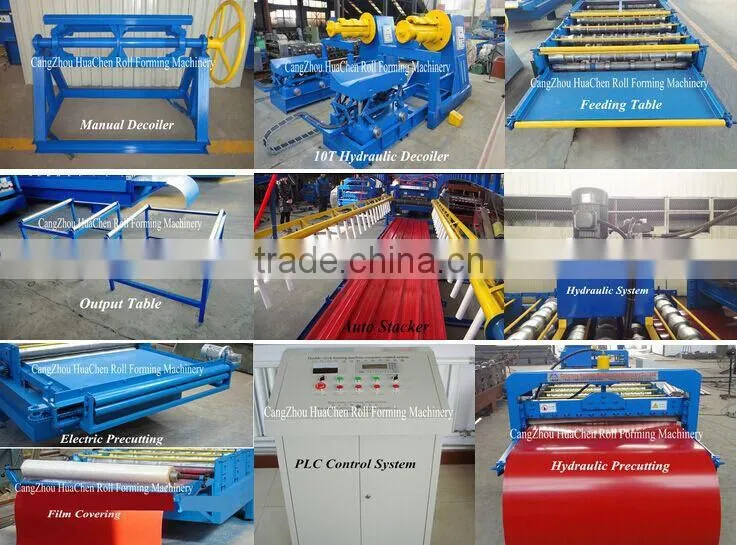

5.Specification of Components of ridge cap tile roll forming machine
No | Components | Technical Specification & Remark |
1 | Manual Uncoiler
| Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:5T Inner diameter: 450-508mm |
2 | Main Roll Forming Machine
| Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
|
3 | Hydraulic System
|
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job. Power:4kw |

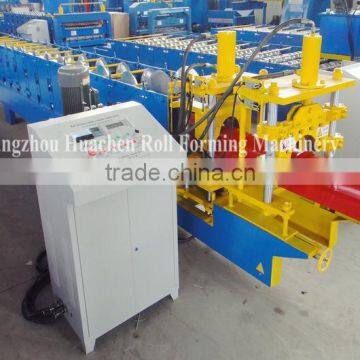

4 | Computer Control Cabinet
|
The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use PLC:EURA |

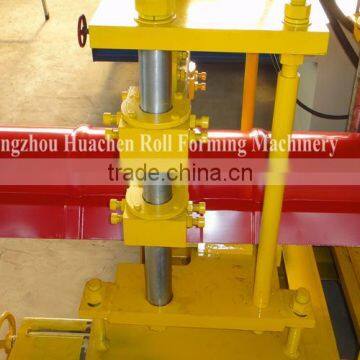

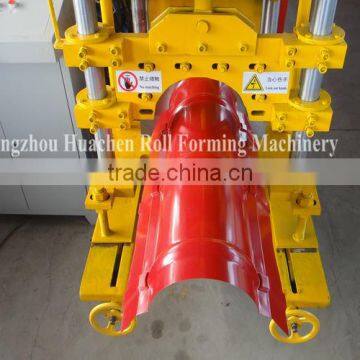

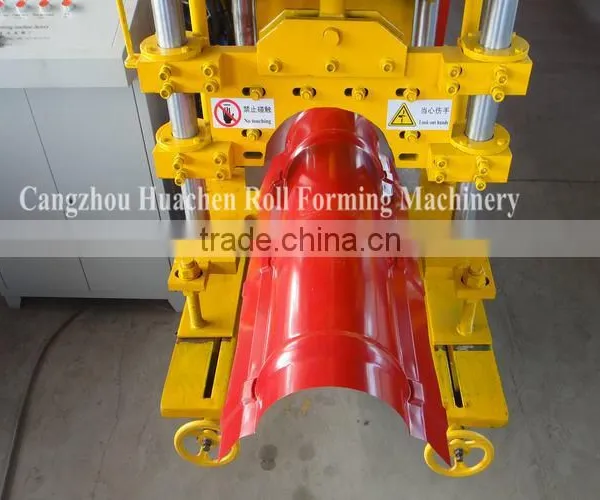

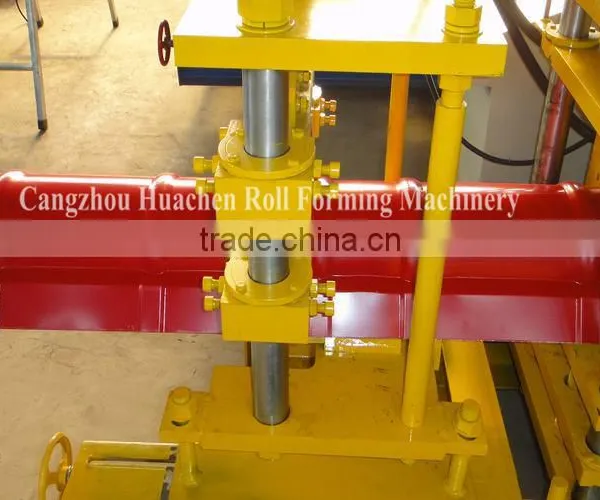

5 | Shearing Mechanism
| It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12,quenching treatment |
6 | Spare Parts | One box |
