BX-C series automatic granite bridge saw for sale
We have manufacturing stone processing machine since the year 1992, so we have enough experience in
providing you high quality and matured machines
We provide:1. stone cutting, polishing, calibrating, profile making machine and so on. 2. artifcial marble stone and quartz stone producing machine line. 3. Stainless steel polishing machine
we can send our engineer to your factory to install and explain how to use these machines, we also have
oversea agent.

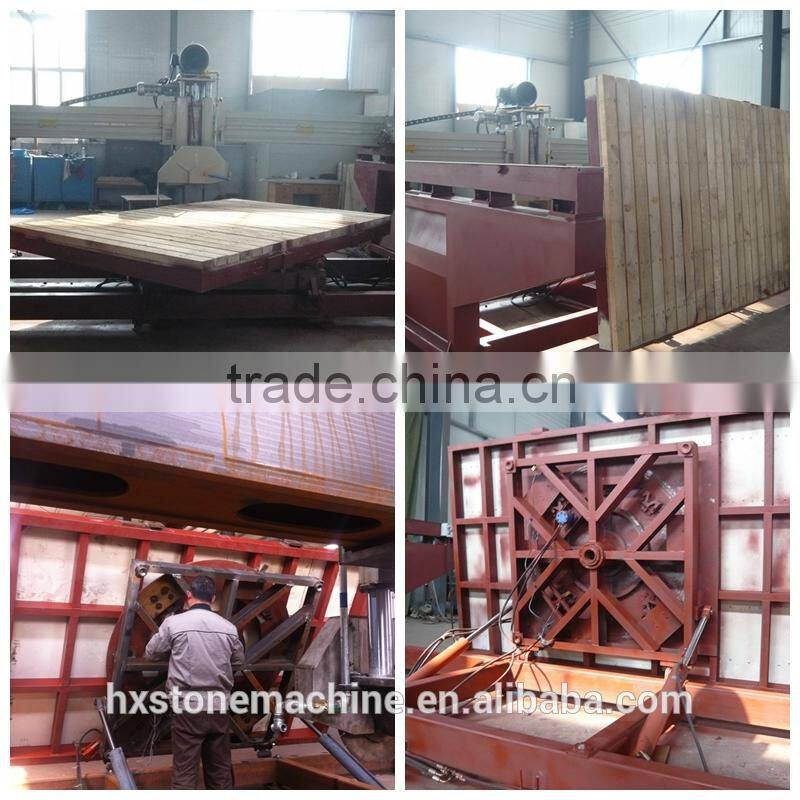

Wood packing or waterproof membrance for BX-C series automatic granite bridge saw for sale

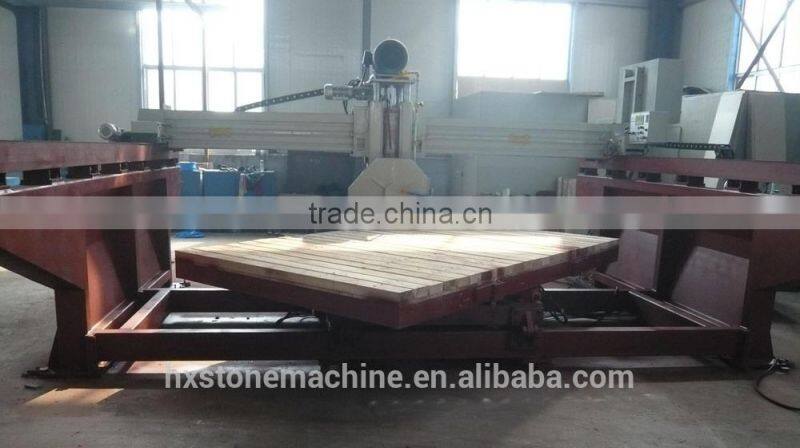

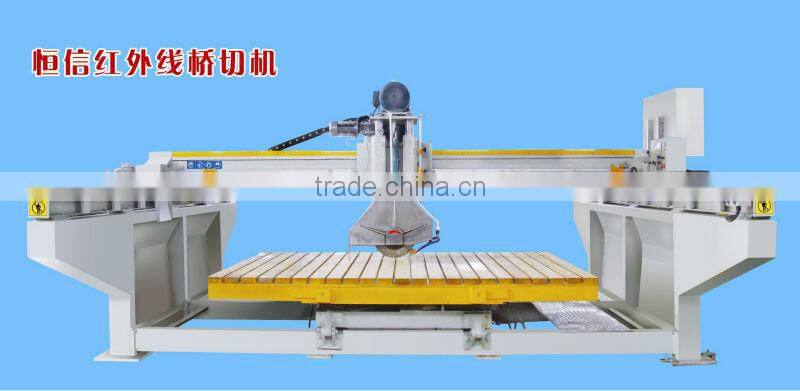

BX-C series automatic granite bridge saw for sale

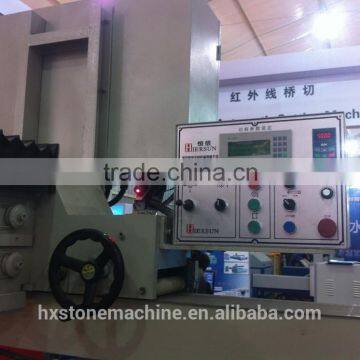

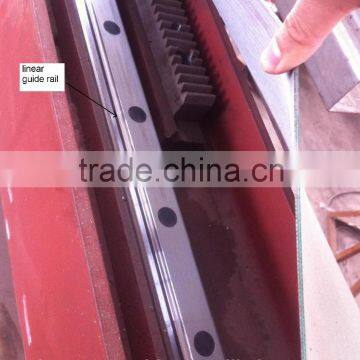

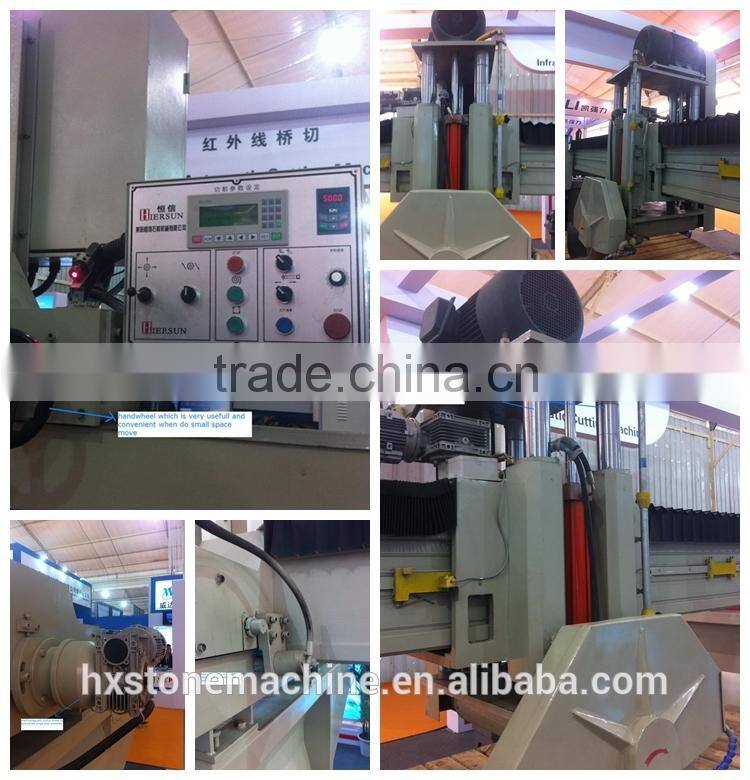

The Infrared Automatic Bridge Cutting Machine is used for cutting marble,granite,quartz stone slab.This machine is controlled with PLC controlling system.The machine is with Programmable controller, frequency converters, touch screen display, linear guide from TAIWAN,laser for tool setting, magnetic scale for fixing the position,This machine is easily operated,fixing position accurate, stabilize.The table can rotary 360 degree and lean 85 degree.All the buttom is brand Schneider from Germany and PLC is Siemens.
Adopted laser device positioning system and CPU controlling system, with reliable function, precise cutting and easy operation, this equipment carries out high efficient cutting by slow cutting and quick return.
Model |
BX-400 |
BX-600 |
Max disc diameter |
400mm |
600MM |
Max cross stroke |
3200mm |
3200mm |
Max longitudinal stroke |
3200mm |
3200mm |
Max cutting thickness |
90mm |
190mm |
Table rotating degree |
360degree |
360(0, 45, 180, 270)degree |
Table size |
3250x2000mm |
3250x2000mm |
Ruise rail of side beam and |
straight guide rail |
straight guide rail |
Main motor power |
15kw/2 |
15kw/4 |
Machine size |
5700x4500x3200mm |
5700x4500x3200mm
|
