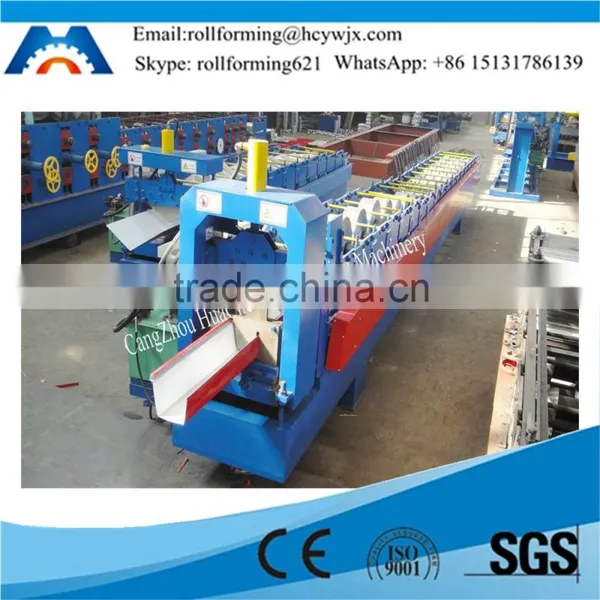

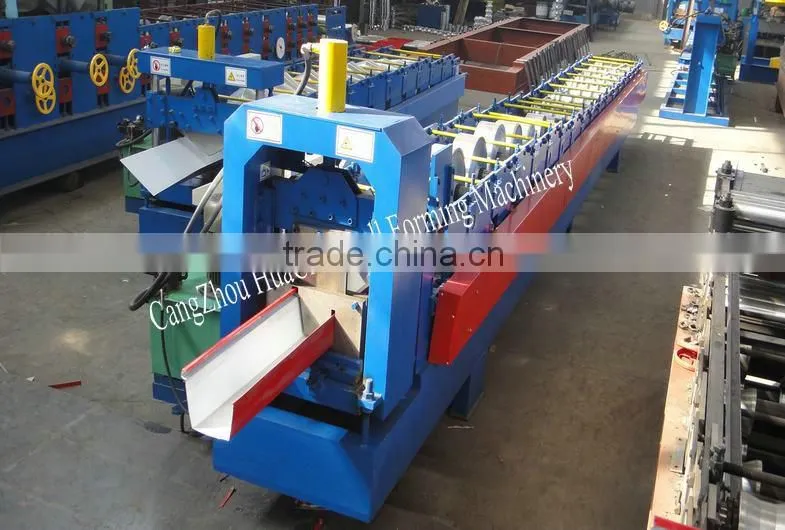

sheet metal folding machine making gutter
Roofing Sheet Making Machine Corrugated Sheet Making Machine Double Layer Roll Forming Machine
Glazed Tile Forming Machine Glazed Tile Roll Forming Machine Glazed Tile Forming Machine
Glazed Tile Roof Machine Glazed Tile Forming Machine Glazed Tile Forming Machinery
CE Double Layer Roof Machine IBR & Wave Forming Machine Double Roof Tile Forming Machine
Hydraulic Uncoiler Hydraulic Stacker Roof Sheet Ridge Cap Machine
Roof Tile Ridge Cap Machine Rolling Shutter Door Forming Machine Shutter Door Slats Forming Machine
U Type Gutter Machine Round Downpouts Machine K Type Gutter Machine
C Purlin Machine Metal Stud And Track Machine Steel Door Frame Forming Machine
Floor Deck Machine Roof Sheet Hydraulic Arch Machine Steel Coil Slitting-Cutting-Recoiling Line
|
|
Huachen is FACTORY which manufacture machine and also do export. |
We have exported over 70 countries, and familiar with your require. | |
Suitable to GI, PPGI, aluminum and Zinc coil. | |
Free 1 year gurantee, and life long service. |
Intruduction:
Machine consisit of uncoiler and its base, coil sheet guilding equipment, roll forming system, cutting system, hydraulic station, controling system and supporter table.
Application:
The gutter machine product is more durable than the tranditional ppc pipe, and not easy to aging. It will make the project more integrate, and help enhancing the image of all project.
1). The Main Parameter For making machine
No. |
main parameter of gutter making machine |
|
1 |
Suitable to process |
Color steel plate |
2 |
Width of the plate |
410mm |
3 |
Roller |
18 rows |
4 |
Dimensions |
8600*750*1210mm |
5 |
Power |
3+3kw |
6 |
Thickness of the plate |
0.3-0.6mm |
7 |
Productivity |
10m/min |
8 |
Material of the cutting blade |
Cr12 |
9 |
Diameter of the roller |
Φ66mm |
10 |
Weight |
About 2.5T |
11 |
Voltage |
380V 50Hz 3phases |
14 |
Control system |
PLC control |

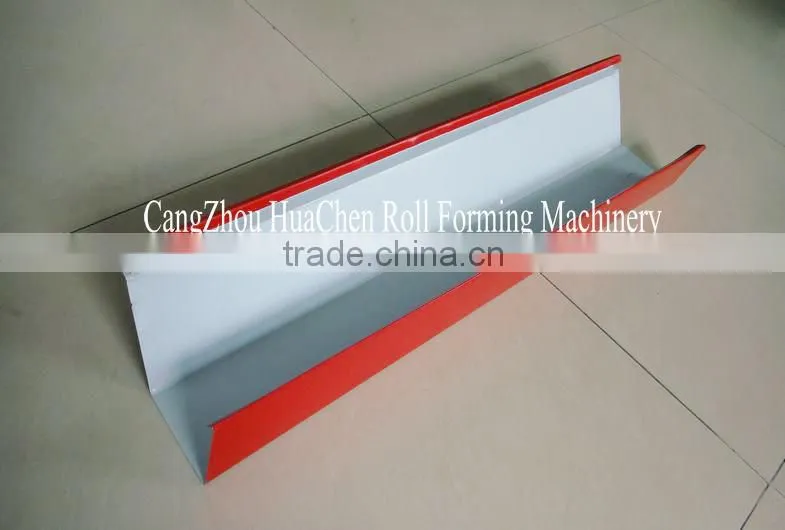

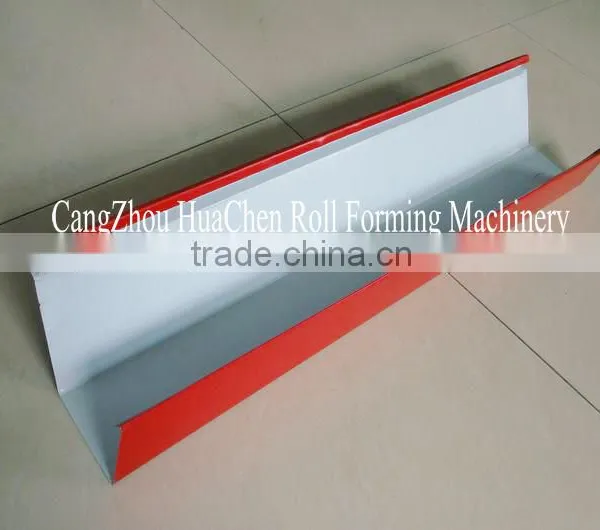

2). Check If gutter making machine Profile Suitable to You.

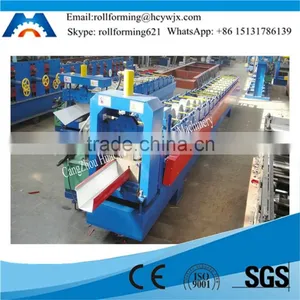

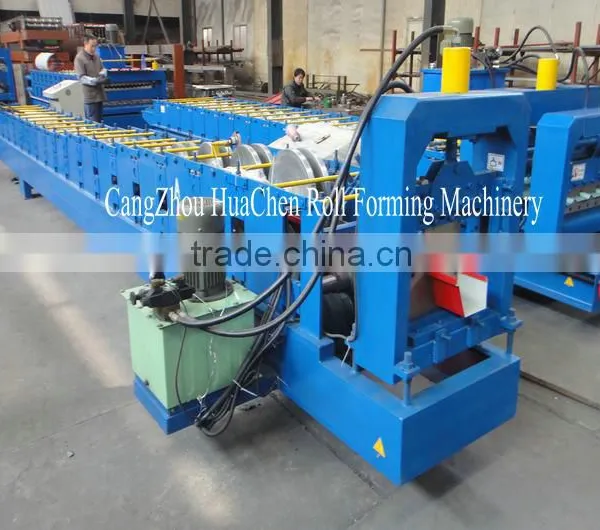

3). This is The Whole Line of gutter making machine
Manual Uncoiler—Gutter Making Machine—Computer Control System—Hydraulic Control System—Form Cutter
4). Components and Technical Specification
1. Manual Uncoiler
Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:5T
Inner diameter: 500-508mm
2. Feeding Table
Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.
3. Hydraulic System
Power:4kw,Hydraulic oil: 40#
hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
4.Computer Control Cabinet
The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.
PLC:EURA
5.Cutting System:
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12,quenching treatment

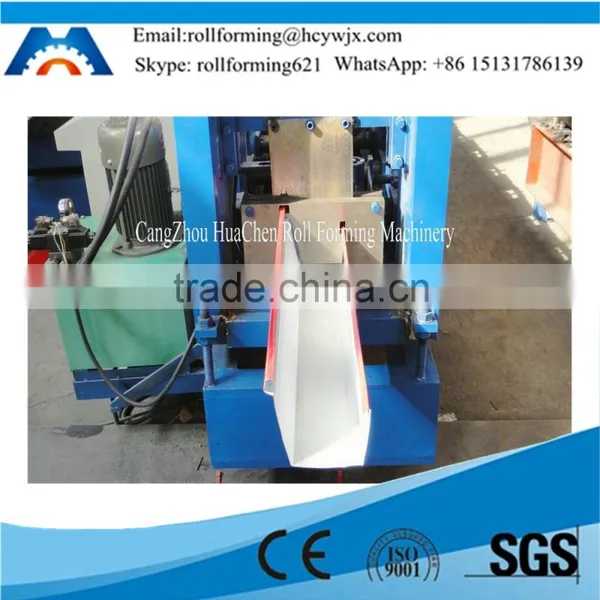

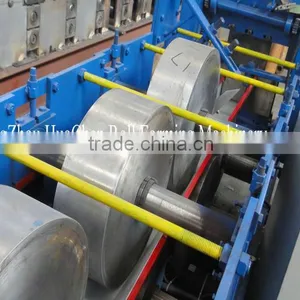

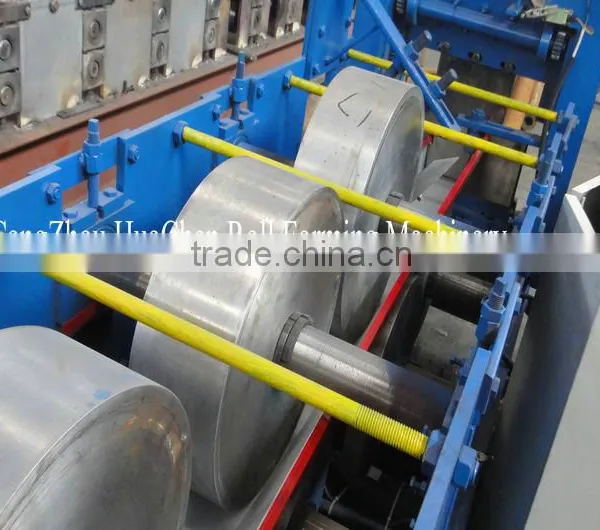

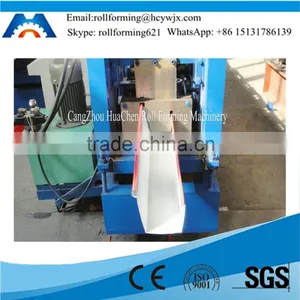

6.Main Roll Forming Machine:
7.Output Table

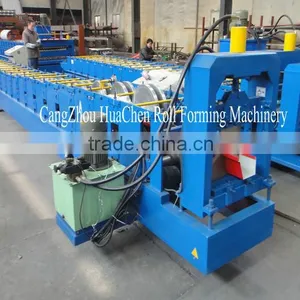

Detail Pics:
We have CE certification and ISO certification.
