Specifications
Auto steel downspout pipe roll forming machine1.High functionality
2.Precise engineered
3.Corrosion resistance
4.ISO

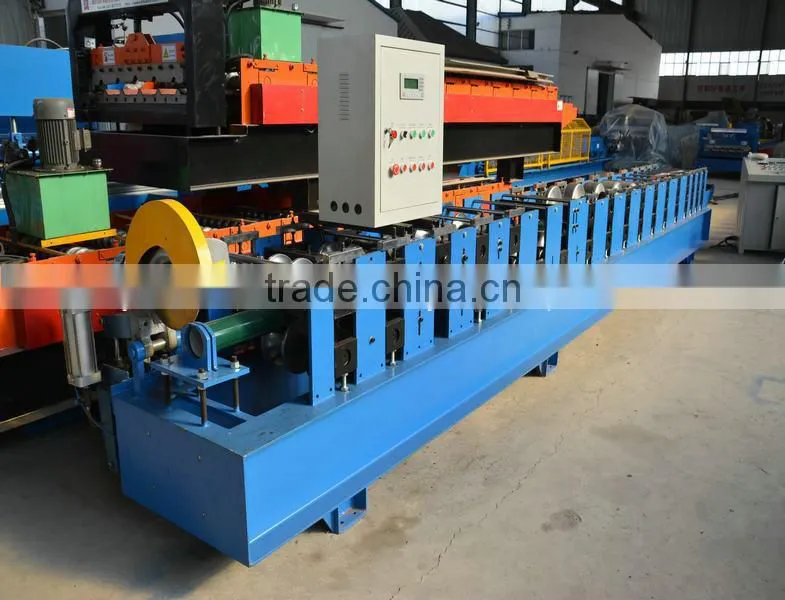

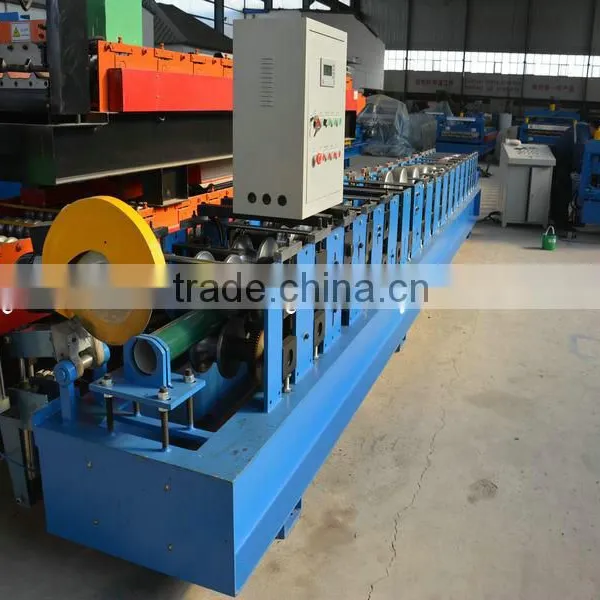

Auto steel downspout pipe roll forming machine
Auto steel downspout pipe roll forming machine Parameter:
1.Suitable to process:Colored Steel plate, galvanized board
2.Width of the plate:330mm
3.Roller stations:17rows
4.Rolling material: Forging Steel 45#
5.Rolling galvanization thickness:0.05 mm
6.Material of the cutting blade :Cr12
7.Hydraulic oil :40#
8.Dimensions: 7.8*1.35*1.91m
9.Motor:5.5+4kw
10.Thickness of the plate:0.4-0.6mm
11.Productivity:8-10m/min
12.Diameter of the roller:65mm
13.Weight:About 3.4 T
14.Voltage:380V 50Hz
15.Processing precision : within 1.00mm
16.Transportation:one complete machine need one 40feet container to hold
17.Payment term:30%deposit,and balance before delivery
18.Standard components: Chain 1 pcs, Hydraulic oil pipes: 2 pcs, electromagnetism valves 1 pcs. limit switch:2 pcs
19.This machine is composed of feeding table,forming machine, cutting device, hydraulic system,computer control system,discharge table.
Optional devices have manual uncoiler,hydraulic uncoiler,auto stacker and so on.
20.Our products are widely used in various industrial factory, civilian building, warehouse and easy steel building manufacturing, and have features such as nice appearance and durable.
1.Main forming machine and un-coiler is naked(If you need we can also packed with water-proof plastic)
2. PLC contral system and motor pump are packed with water proof paper coverag
We are actively engaged in manufacturing and supplying qualitative assortment of roll forming machine, Curving Machine, Hydraulic Bending Press Machine,channel forming machine,door frame forming machine,roller shutter door forming machine,gutter forming machine,downspout forming machine etc. These are manufactured using optimum quality raw material and latest technology. The offered range is designed with high precision in order to meet the set international quality standards.
In addition to this, we also offer customized profile roll forming machine to you in committed time frame at rock bottom prices.
1.Q: Where is your factory located? How can I visit there?
A: Our factory is located in Botou, Hebei province. We could pick you up from Cangzhou Station or Beijing or tianji airport when you come.
2.Q:How about your payment terms?
A:30% deposit by T/T in advance and 70% balance after inspect confirmation before shipment.
3.Q:What is your contact info?
A:Contact name:Rebecca Yang
Skype:rollforming11
Mobile: 86-18233766102
