Can't find a reliable manufacturer for fully automatic Corrugated metal roof sheet making machine ?
Huachen Roll Forming Machinery is your best choice:

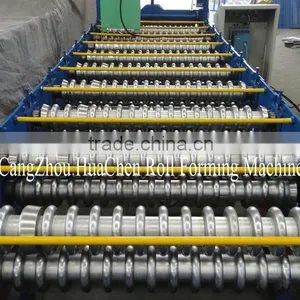

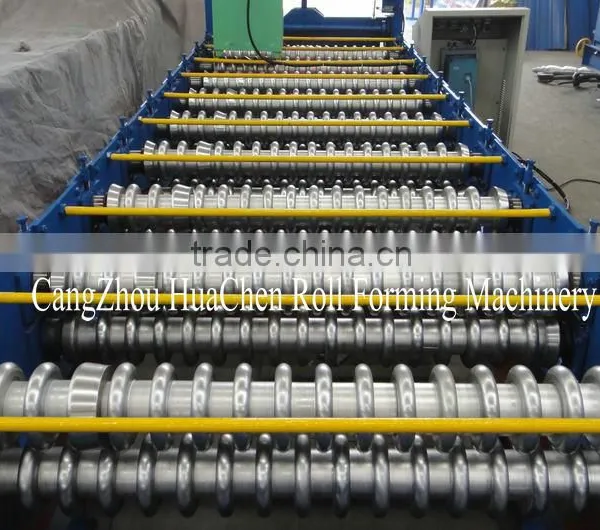

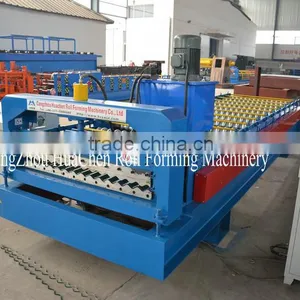

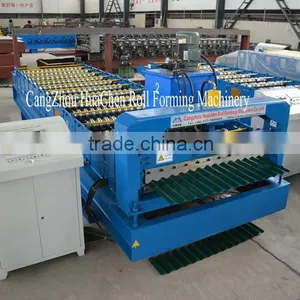

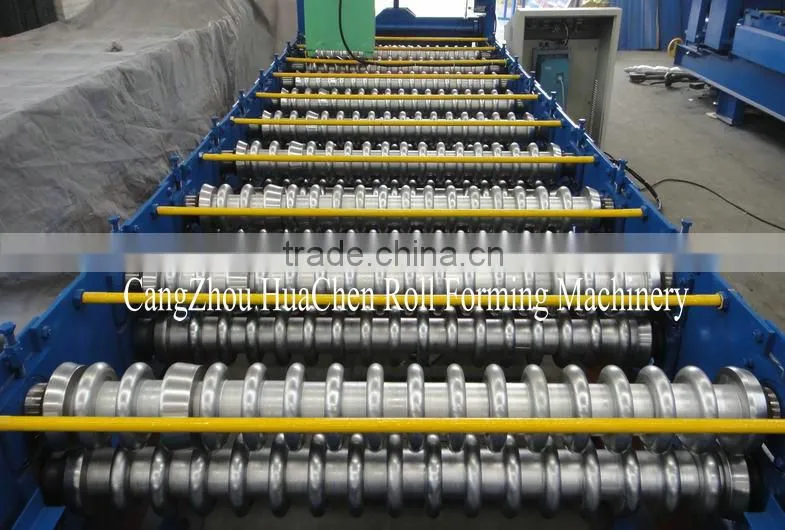

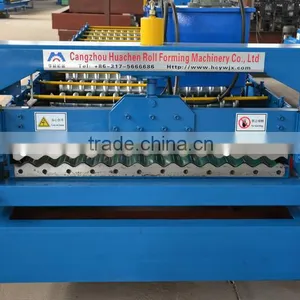

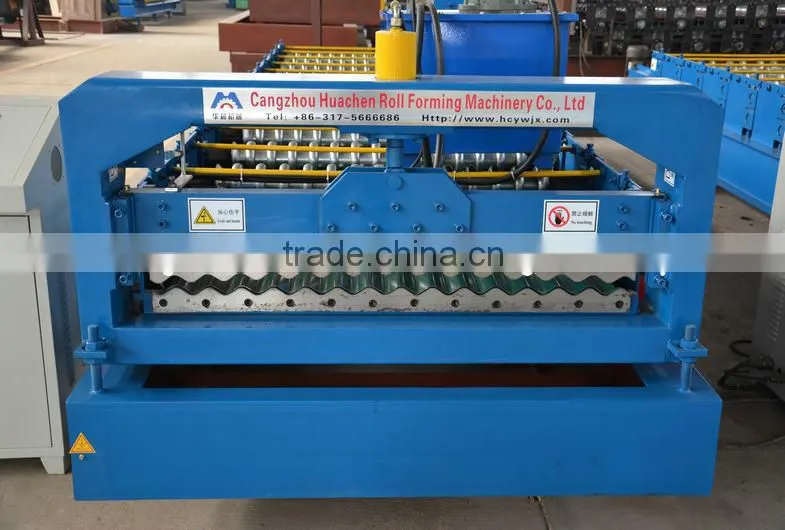

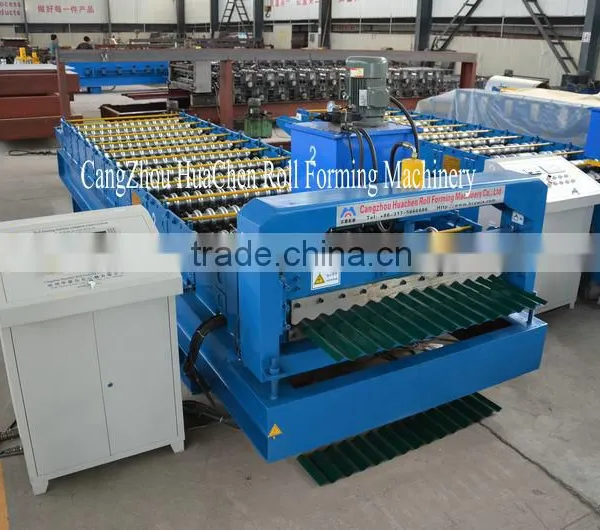

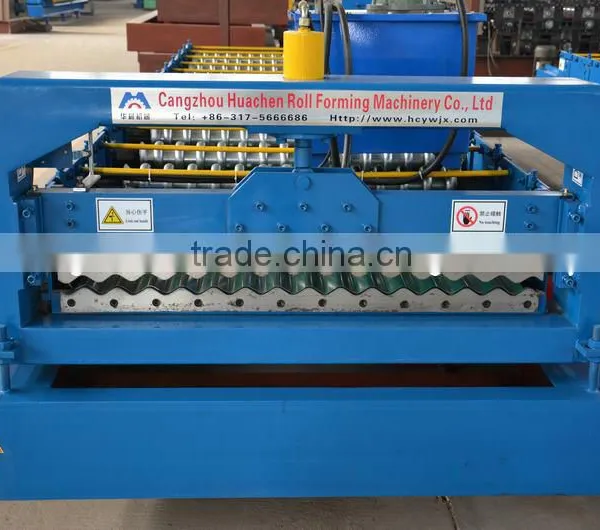

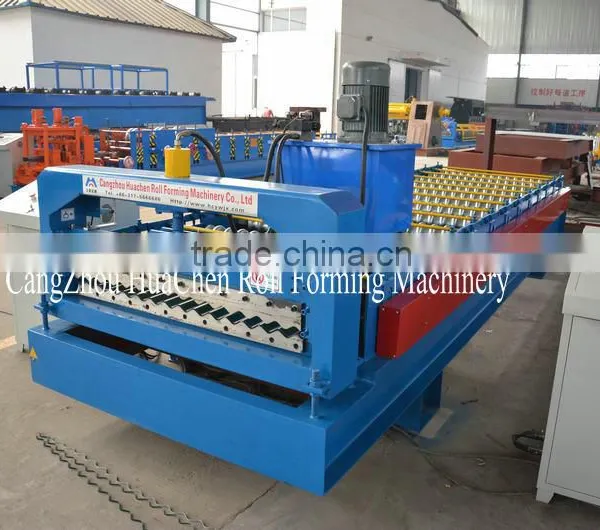

Want to see detailed picture for fully automatic Corrugated metal roof sheet making machine ?

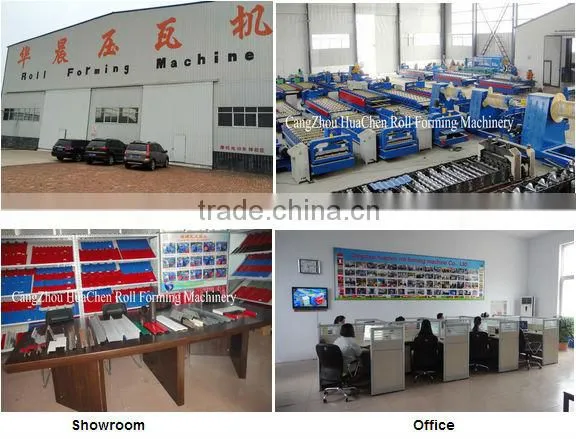

When roll forming machine finished,we take pictures and keep the finished sheets to our showroom.We test our machine strictly to make sure every customer get it satisfied. Your profile drawing is welcomed and acceptable. We can also design the roll forming machine as your requirement.
Technical parameters for fully automatic Corrugated metal roof sheet making machine , need to make some change ? Just tell me.
No. |
fully automatic Corrugated metal roof sheet making machine |
|
1 |
Suitable material |
Color steel sheet ,galvanized steel sheet, aluminium sheet |
2 |
Width of material |
1200mm or as you required |
6 |
Thickness of material |
0.3-0.6mm or as your needs |
2 |
Working speed |
8-10m/min, can be 20m/min |
3 |
Main motor power |
4kw with cycloidal reducer |
4 |
Hydraulic station power |
4kw |
5 |
Electrical control system |
PLC control system |
7 |
Shaft diameter |
70mm |
8 |
Roller station |
12 rows Depends on profile drawing |
10 |
Dimension |
6200x1500x1510mm |
11 |
Weight |
About 3.8 T |
12 |
Voltage |
380V 3phase 50HZ or as the customer's requirements |
13 |
Material of roller |
High grade 45# forged steel plated with hard chrome plating |
14 |
Material of cutting |
Cr12 mould steel with quenched treatment |
15 |
Working time |
Can be 24 hours |
16 |
Workers |
1-2 only |
Clear about the working process about fully automatic Corrugated metal roof sheet making machine ?
Decoiling→Feeding & Guiding→Roll Forming→Cutting→Finished Products To Support Table

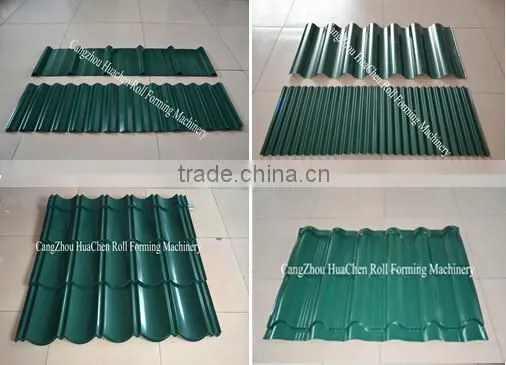

Not interested in this profile design ? Here are other formats for your reference.

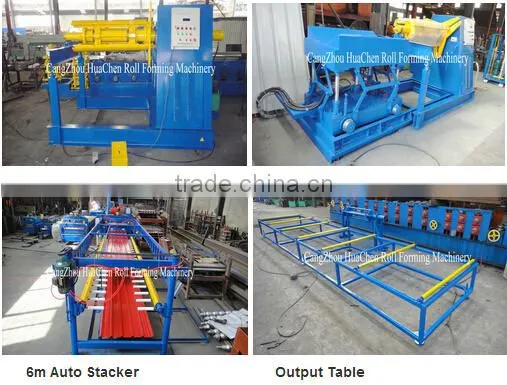

Want more automatic production line to save labour cost ? Option device may help you.

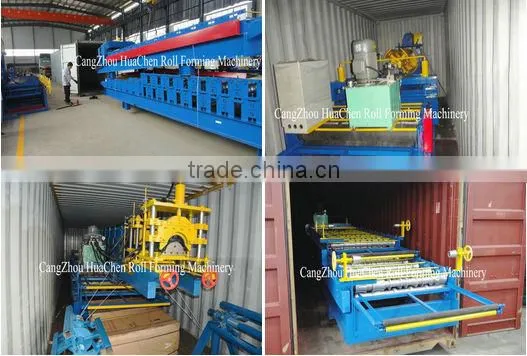

Worry about Packing and delivery ?
1.Main fully automatic Corrugated metal roof sheet making machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40' container to shipping.
What's your Payment Terms and Delivery?
30% deposit by T/T in advance and 70% balance after your inspection machine and confirmation before delivery.
Of course your payment terms are acceptable.
After we get down payment, we will arrange production . About 30-45 days for delivery.
Why choose Huachen ?
1.Q: Do you have after sales support?
A: Yes, we are happy to give advice on machine operating and maintenance. we also have skilled technicians available abroad to help you.We need your machines running in order to keep your business running.
2.Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly .We need to make gress to move forward.
3.Q: How does your factory do regarding quality control?
A: Quality is priority.To all Huachen people,the concept "Control every process and perfect all products" is curved in mind. Every product will be fully assembled and carefully tested before it's packed for shipment.
4.Q: Do you sell only standard machines?
A: No, most of our machines are designed according to customers specifications,we offer OEM service.
5.Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. welcome to come and check your machine after finished, or we will show you machine working video for confirm. Then delivery. We are gold member on alibaba, you can also confirm with them.
About Huachen
Cangzhou Huachen Roll Forming Machinery Co., Ltd is the manufacturer specilized in metal roofing roll forming machine. We provide an extensive line of products, which includes roll forming machine,roof sheet making machine, roof tile machine,glazed tile roll forming machine,C Z purline forming machine, floor decking machine,gutter forming machine,roller shutter machine etc.
Where is your factory located ? How can I visit you ?
Huachen Roll forming machinery is located at Industrial Zone of Botou , Hebei Province of China. Welcome to visit us by:
1.Fly to BEIJING or TIANJIN Airport, then take high speed train from BEIJING NAN to CANGZHOU XI, about 1 hour, I will pick up you there.
2.Fly to SHANGHAI Airport, then take high speed train from SHANGHAI HONGQIAO to CANGZHOUXI, about 4.5 hour,I will pick up you there.
Want a free quotation to make budget? Just send me inquiry now
