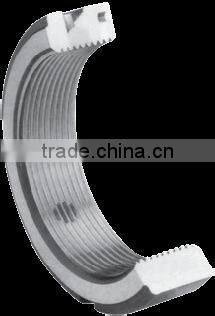

YJS tooth flanks bearing lock nut

1. product description

Lock method

is the screw thread half Angle of 30 ° Angle, the three-point locking, this product is a standard products of the company,Its superior lock design, can make the screw thread which fixed on copper, completely fit on the male threads, to make its locking effect more perfect, because of its design of the 30 °Angle, then it can reduced the torque caused by lock screw.(if this moment overload more than the axial load)

material: SCM440 (42 crm04) conditioning

hardness: HRC28 ° - 32 °

accuracy of thread: ISO 4 h precision grinding

deflection of plane: 0.002 mm

accuracy of thread: ISO 6 h precision turning

deflection of plane: 0.005 mm

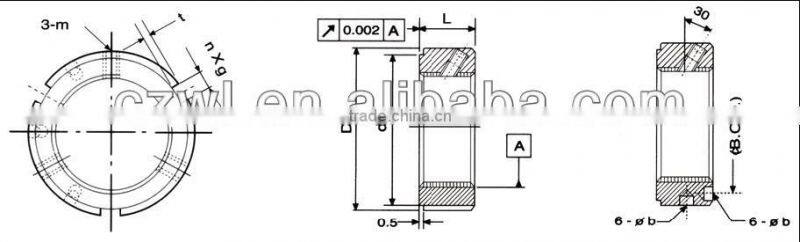

2. lock nut structure
China Lowest price YJS Series Steel Seal&Lock Nut Bearing Sleeve Tighten nut,hub lock nut

  3. Product Specifications



nut typeDLdnXg/bt/cmMAX•Nm
YJS M 14×1.53014253×4/-2 m54.5
YJS M 15×12
YJS M 16×1.52
YJS M 17×13216272
YJS M 18×1.52
YJS M 20×138332
YJS M 20×1.52 m68
YJS M 22×1.52
YJS M 24×1.5183×5/-2
YJS M 25×1.52
YJS M 27×1.540352
YJS M 30×1.545402
YJS M 33×1.550452
YJS M 35×1.552472 m818
YJS M 36×1.52
YJS M 39×1.55820523×6/-2.5
YJS M 40×1.52.5
YJS M 42×1.562562.5
YJS M 45×1.565592.5
YJS M 48×1.570642.5
YJS M 50×1.52.5
YJS M 52×1.57322683×7/Φ6363
YJS M 55×1.57565
YJS M 56×265
YJS M 60×2807370
YJS M 64×2857875
YJS M 65×275
YJS M 68×29224843×8/Φ63.581
YJS M 70×281
YJS M 72×2948683
YJS M 75×2989087
YJS M 76×287
YJS M 80×2105963×8/Φ793
YJS M 85×21101026×8/Φ798
YJS M 90×2120261086×10/Φ74105
YJS M 95×2125113110
YJS M 100×2130118115m8
YJS M 105×2140281256×10/Φ7 123m10
YJS M 110×2145132128



Note: (1) the above data is only for reference;(2) = 10.2 Nm KGF. Cm = 0.73 Ib. Ft

 4.packaging


Company Information

Our Mainly Product:



Hot sales product Single Plate Coupling

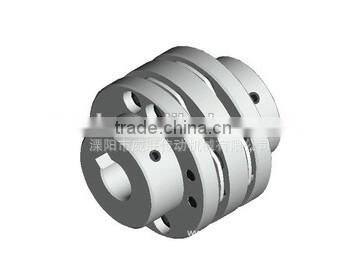

Hot sales product Double Disc Coupling

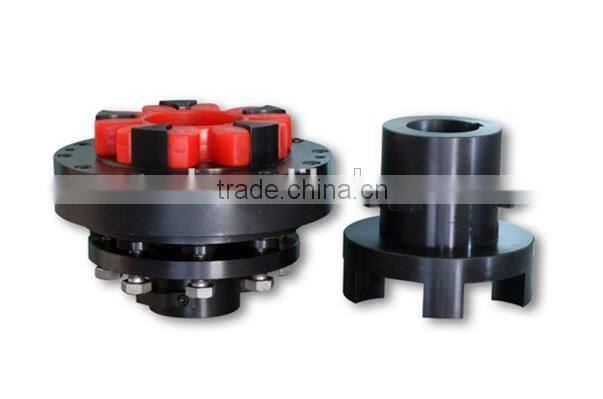

Hot sales Zero Backlash Jaw Coupling

Hot sales Clamp Type Disc Coupling

Hot sales Jaw Flexible Coupling

Hot sales product Grid Coupling

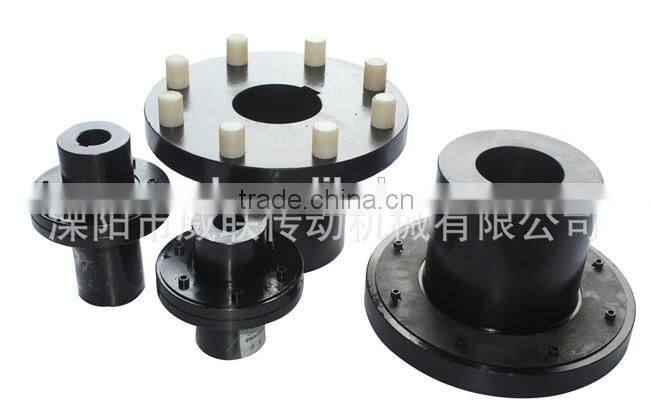

Hot sales Flexible Pin Coupling

Hot sales Friction Torque Limiter

Hot sales Bearing Lock Nut

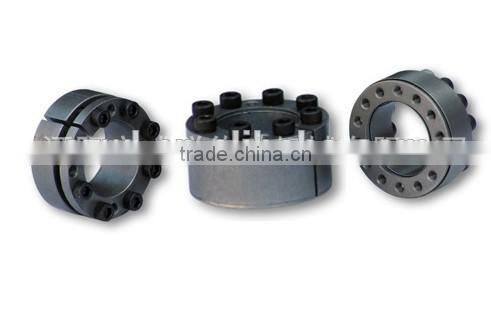

Hot sales Shaft Locking Device
