Specifications

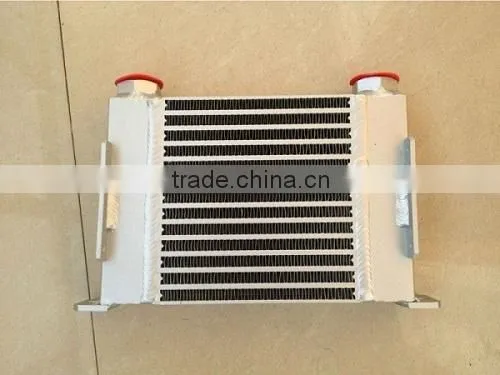

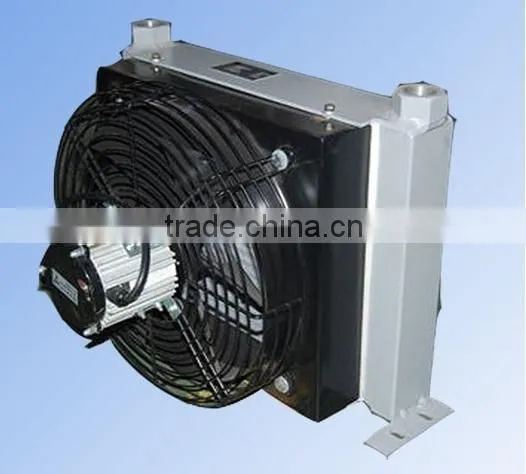

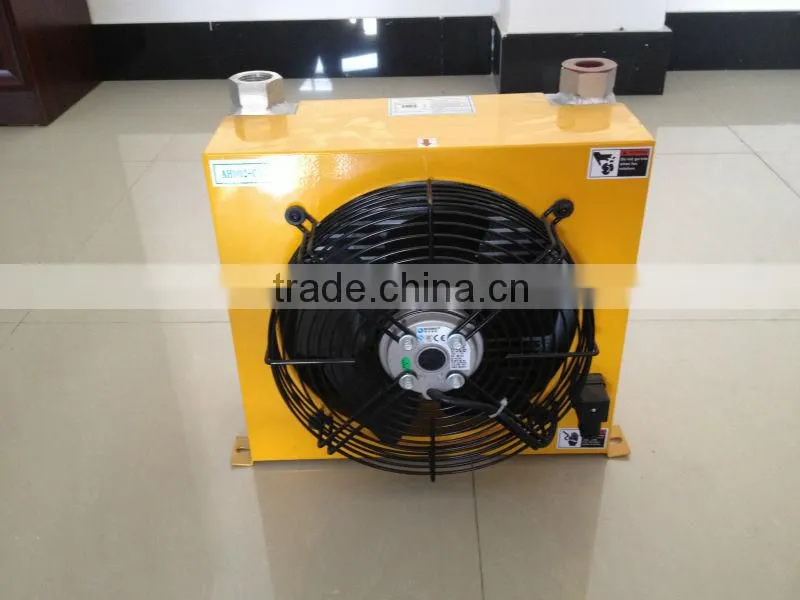

Efficient,compact&light oil coolerAH&AW series hydraulic oil coolers with fan
Popular used on hydrauli oil cooling system
Pictures
Description

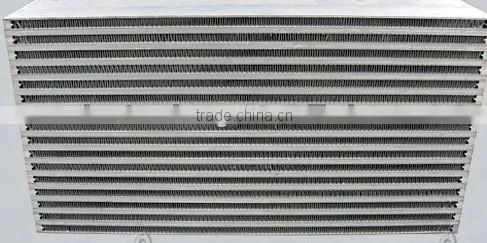

AH series plate-fin aluminum oil coolers are made of light aluminum which has highly resistant to vibration and is a high efficient heat exchanger, that can used in hydraulic oil system,lubrication system,transmission system,marine hydraulic oil system,vehicle hydraulic oil system,electrical power system,etc.
Full types of fins
Fin Type |
Pitch(mm/FPI) |
G(mm) |
H(mm) |
Louvered Fin |
2.5~5mm/10~20FPI |
0.1~0.17 |
6.5~18 |
Wavy Fin |
2.5~8mm/6~20FPI |
0.1~0.35 |
2.5~12 |
Flattop Fin |
2.1~10mm/5~20FPI |
0.1~0.2 |
2.5~12 |
Offset Fin1 |
4.5~8mm/6~16FPI |
0.15~0.5 |
1~5 |
Offset Fin2 |
4~8mm/6~13mm |
0.12~0.2 |
5~18 |

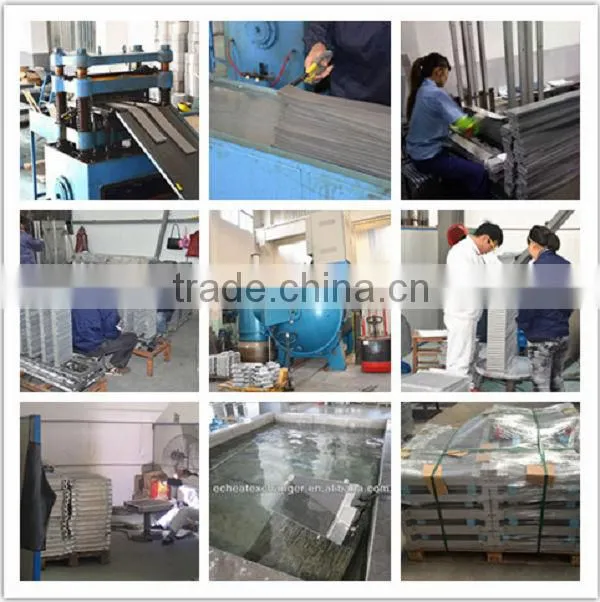

Processing ,Equipments and Packing for Hydraulic Oil Coolers
Process flows: Blanking -> Fin Punching - > Cleaning - > Core Assembly - >Vacuum Brazing
->Part Machining -> Welding -> Pressure Test -> Drying ->Overall Inspection -> Painting -> Packaging

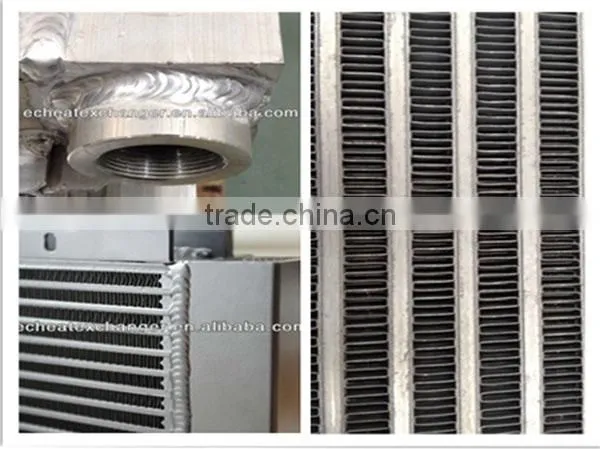

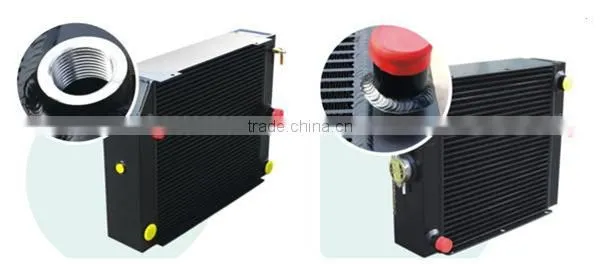

Parts details for Hydraulic Oil Cooling System-Oil Coolers with Fan
Company Profile

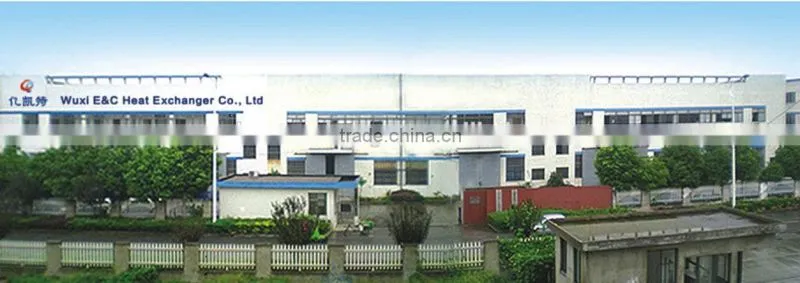

Wuxi E&CHeat-exchanger Manufacturing Co.,Ltd. is a professional manufacture of aluminum bar-plate heat exchangers.E&C Heat Exchanger was established by a group of highly skilled experts enjoying ten years of experience in designing and manufacturing of heat exchangers.
Our aluminu plate-fin heat exchngers are widely used in air compresssor,construction machiney(also farm and foestry machinery),hydraulic oil systems,vehicles,locomotives,petro/diesel engines,wind power generator,etc. The mainly products category is as follow:
For air compessor :oil cooler, after cooler, combined oil cooler/after cooler and oil-air heat exchanger.
For construction machinenry, diesel: engine oil cooler, charge air cooler, air cooling-oil heat exchanger,concrete mixer oil cooler.
For hydraulic oil system,lubrication system,transmission system,marine hydraulic oil system,vehicle hydraulic oil system,electrical power system,etc.
We are sincerely ready to offer serive to you,and appreciate you to give us a chance to cooperate.
International Market
E&C coolers are well exported to more than 30 countries,they are sold well in Italy, Germany, the United States,Brazil, Australia, Russia,Turkey, Iran, India etc.And some of our customers are leading manufacturers in their field.
Certification-ISO9001&CE
We look forward our initial cooperation.
Welcome to contac me: Fanny Zhou
Mobile:086-13665160967
Skype:fannyzhou22
