Suzhou LANScientific Co., Ltd.: Suzhou, Jiangsu, China; Main products: handheld XRF analyzer, XRF alloy analyzer, XRF ROHS analyzer, XRF mining analyzer, XRF soli analyzer

Home > Products > others > XRF Spectrometer X-ray Fluorescence Spectrometer XRF handheld analyzer TRUEX800

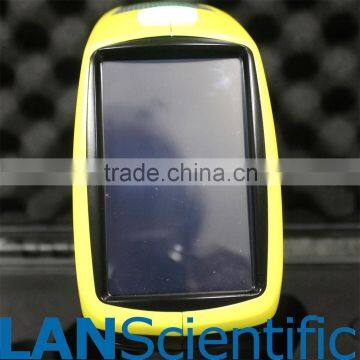

XRF Spectrometer X-ray Fluorescence Spectrometer XRF handheld analyzer TRUEX800

Name: XRF Spectrometer X-ray Fluorescence Spectrometer XRF handheld analyzer TRUEX800
Brand: Lanscientific
Availability: InStock

FOB Price

USD $15,000 - $25,000 / Set

1 Set(Min.Order)

Supply Ability 10 Set / Sets per Month
Port Shanghai
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	Lanscientific
Model Number	Truex	Power	Electronic
Usage	Auto Testing Machine

Product Description

Product Application

XRF Handheld analyzer is applicable to any fields that elements or compounds from Na to U are to be analyzed. It is suitable for analysis in building materials (cement, glass, ceramics), metallurgy(steel, and non-ferrous metals), petroleum (trace elements such as S, Pb, etc.), chemistry, geological mining, to commodity inspection, quality inspection and trace elements analysis of human body.

Model list
1	TrueX 800	Handheld Alloy analyzer	Can analyze Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Se, Zr, Nb, Mo, Rh, Pd, Ag, Cd, Sn, Sb, Hf, Ta, Re, Pb, and Bi,totaling 25 elements.
2	TrueX 860	Handheld Alloy analyzer	Can analyze Mg, Al, Si, P, S, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Se, Zr, Nb, Mo, Rh, Pd, Ag, Cd, Sn, Sb, Hf, Ta, Re, Pb, and Bi,totaling 30 elements.
3	TrueX 900	Handheld mining analyzer	Can analyze K,Ca,Ti,V,Cr,Mn,Fe,Co,Ni,Cu,Zn,As,Se,Rb,Sr,Y,Zr,Nb,Mo,Ag,Cd,Sn,Sb,Hf,Ta,W,Au,Hg,Pb,Bi.
4	TrueX 960	Handheld mining analyzer	Can analyze Mg,Al,Si,P,S,Cl,K,Ca,Ti,V,Cr,Mn,Fe,Co,Ni,Cu,Zn,As,Se,Rb,Sr,Y,Zr,Nb,Mo,Ag,Cd,Sn,Sb,Hf,Ta,W,Au,Hg,Pb,Bi.
5	TrueX ROHS	TrueX ROHS Handheld analyzer	Pb, Hg, Cd, Cr, Br,AS
6	TrueX Gold	TrueX ROHS Handheld analyzer	Can analyzeFe,Co,Ni,Cu,Zn,Se,Ru,Rh,Pd,Ag,Cd,In,Ir,Pt,Au,Pb
7	TrueX 800L	Handheld Alloy analyzer	Can analyze Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Se, Zr, Nb, Mo, Rh, Pd, Ag, Cd, Sn, Sb, Hf, Ta, Re, Pb, and Bi,totaling 25 elements.
8	TrueX 700	Handheld Soil analyzer	Can analyze K，Ca，Ti，V，Cr，Mn，Fe，Co，Ni，Cu，Zn，As，Se，Rb，Sr，Y，Zr，Nb，Mo，Ag，Cd，Sn，Sb，W，Re，Pd，Au，Hg, Pb，Bi，Cs，Ba，Th，U,totaling 34 elements.
9	TrueX 760	Handheld Soil analyzer	Can analyze Mg，Al，Si，P，S，Cl，K，Ca，Ti，V，Cr，Mn，Fe，Co，Ni，Cu，Zn，As，Se，Rb，Sr，Y，Zr，Nb，Mo，Ag，Cd，Sn，Sb，W，Au，Hg, Pb，Bi，Ba，Th，U，Sc，Cs，Te，Pd，Hf，Ta，Re，Ge，Tl，I, totaling 47 elements.

Main Features

1. High-speed processing chip, advanced algorithm and high-responsive software, resulting in even faster analysis.
2. High-performance X-ray Tube, Ultra-high Resolution Detector combined with Digital Multi-channel Processing Technology, yielding super-high detection resolution.
3. Indicator lights flash on both sides for safety purposes during measurement, i.e., the built-in double beam technology will automatically sense whether there is a sample at the measurement window.
4. TrueX's new algorithm optimizes the spectral resolution, so lower detection limits can be achieved, which are comparable with even large-scale lab instruments
5. TrueX Ultra-short optical™ path design can significantly improve light element excitation effects, without the fall/fill condition.
6. CPU running over 1 GB which make instrument working faster
7. 32GB memory which other companies can’t come to this
8. Full completely Preloaded Grade Library such as industry Grade Library(petroleum Grade Library, Precious Metals Grade Library, steel Grade Library, tooling Grade Library and so on) , different country Grade Library standers and also you can customize your own Grade Library.
9. I COULD service which can do the testing, maintenance and repaired through remote control.

Technical parameters

Weight	1.6Kg（with battery）
Dimensions	254 x 79 x 280 mm（L x W x H）.
Excitation source	50KV/200μA maximum pipe pressure pipe flow can be adjusted freely,Agtarget (standard),Au,W,Rh target(optional).
Detector	BOOST Si-PIN detector/SDD detector
Range of detection	All elements between Mg and U.
Display system	Industrial resistive touch screen with screen size of 4.3". Multiple languages including English and Chinese. And it automatically adjusts display brightness according to the environment brightness.
Heat dissipation	Equipped with a dedicated T-shaped radiator to dissipate the heat；no need to wait for cooling of detector time again.
System Processor	The Android 4.2 operating system/80MHZ ADC digitalpulse processor/4096 MCA channel , 32GB memory
Data storage	Built-in 32gb memory, 300,000 spectral data and spectrumcan be stored
Operating Temperature	-20℃~+50℃
Operating Humidity	≤90%Limit of Detection: PPM
Safety	Built-in double beam technology can automatically sense whether there is a sample at the measurement window. This is also a safety and protection feature.
Power supply system	Intelligent battery management through MSBUS bus, real-time monitoring of the residual capacity of battery and backup battery. The battery complies with air transport regulations of dangerous goods. A single battery can last 8 hours.

Packing & Delivery

Packaging
Size	254 x 79 x 280 mm（L x W x H）
Weight	1.6Kg（with battery）
Packaging Details	The normal package is carton box (Size:504020cm，8kg).

Our Service

1. Quality warranty:

LANScientific commits that TrueX handheld spectrometer is fabricated with fine grade materials and top notch workmanship. It is brand new, never used, and in full compliance with the quality provision of this Contract. TrueX warranty is 12 months starting from the date of final acceptance of the goods/commissioning of machine.

2. Technical training:

Operating Manual of TrueX Handheld Spectrometers

Maintenance Manual of TrueX Handheld Spectrometers

3. After-sale service

Over the years, LANScientific has sold XRF instruments to many global users. In order to provide better technical support and service, it shall be committed to.

Trade shows

CLSILE 2016 in Beijing

We held the CLSILE 2016 exhibition successfully in Beijing of May 2016.

Our new products XRF Handheld analyzer meet various customers' interest.
