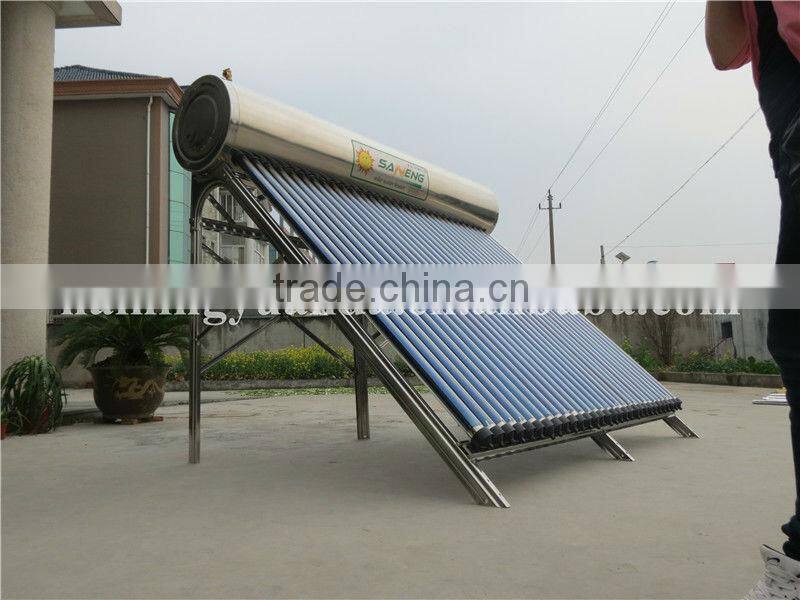

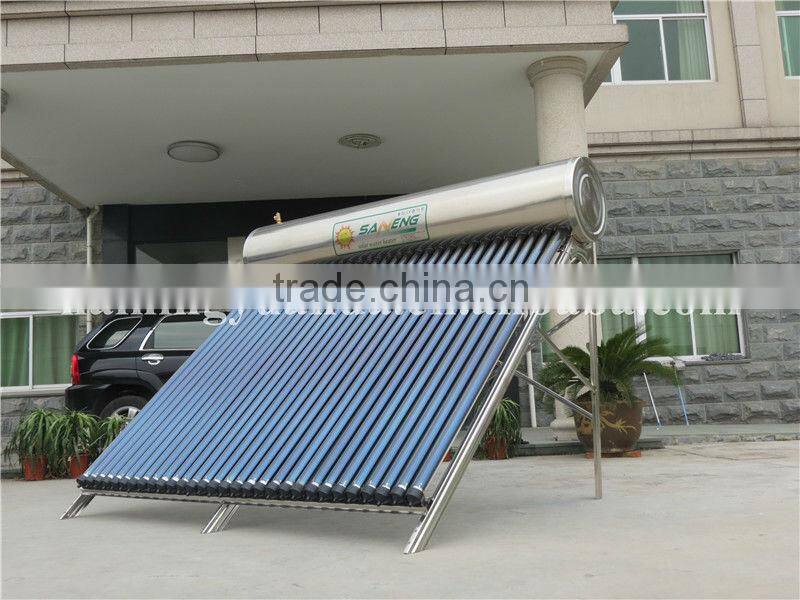

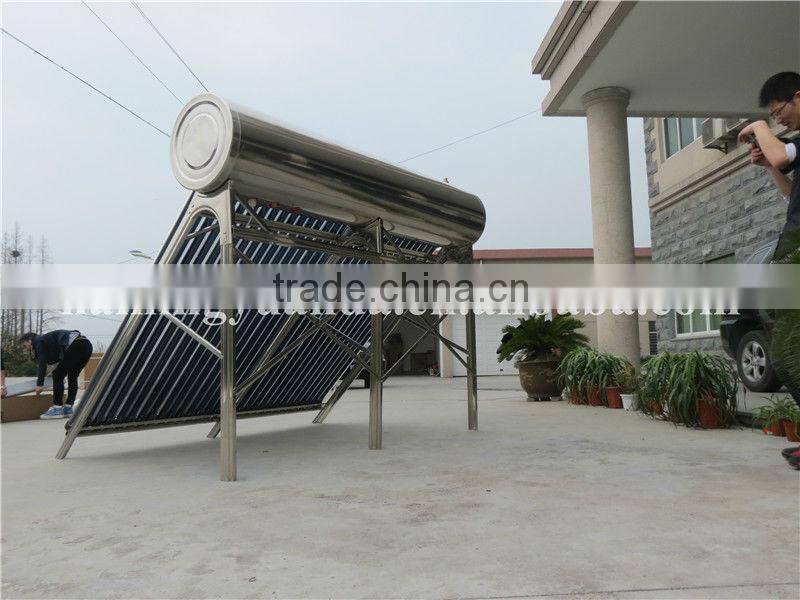

High Quality Compact Pressurized Solar Water Heater
Model: IP6022

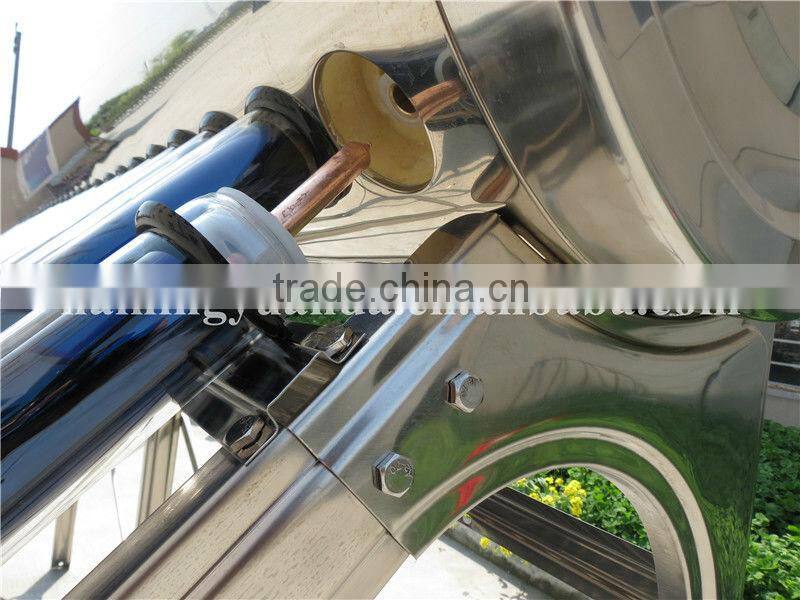

Working Principle
The selective coating on the inner cover of the evacuated tubes converts solar energy into heat energy and transfers heat to the heat pipes by aluminum fins,
the liquid in the heat pipe changes into vapour which rises to the condenser. The heat then passes through the heat exchanger and the vapour becomes liquid,
returning to the base of the heat pipe. The heat conducts to the heat transfer liquid(ante-freezing liquid or water) via a copper pipe. This transference of heat into the liquid creates a continuous circulation as long as the collector is heated by the sun.
Features
1. It can withstand pressure of tap water when it works.
2. There is no need to wait.
3. Completely automatic operation.
4. Drinking water quality to promote life quality.
5. Temperature preservation can last for 80hours.
6. Without volatile tubes.
7. Without encrusting, long usage life
Advantages
1. Highly efficient absorber of high performance with daily average efficiency over 50%;
2. Start up quickly, heat pipe transfer the heat energy into the storage tank in one direction.
3. Withstand pressure of 6 Bar, can be connected directly with city water.
4. No water inside the evacuated tubes; The solar water heater can still in service even with several tubes breakage;
5. Highly efficient insulation with polyurethane foam;
6. Simple structure, easy to assembly and install, diffuse flat plate reflector can be assembled easily with its module structure;
7. Can be used all year round in the cold climate;
8. Can be used together with Auxiliary electric boost;
9. Long service life, can be used as long as 15 years.
Product Model |
Tubes Qty. |
Tank (L) |
Absorbing Area (m 2 ) |
Weight (KGS) |
Dimension (L×W×H) |
Qty. per 20FT/40FT/40HQ |
IP470-1800/58-18 |
15 |
150L |
1.37 |
93 |
1830*1690*1600 |
35 / 70 / 85 |
IP470-1800/58-20 |
16 |
160L |
1.52 |
103 |
1830*1850*1600 |
32 / 64 / 78 |
IP470-1800/58-24 |
18 |
180L |
1.83 |
125 |
1830*2170*1600 |
27 / 55 / 67 |
IP470-1800/58-30 |
20 |
200L |
2.29 |
156 |
1830*2650*1600 |
23 / 46 / 55 |
IP500-1800/58-18 |
22 |
220L |
1.37 |
98 |
1830*1690*1630 |
34 / 69 / 83 |
IP500-1800/58-20 |
24 |
240L |
1.52 |
109 |
1830*1850*1630 |
31 / 63 / 76 |
IP500-1800/58-24 |
25 |
250L |
1.83 |
132 |
1830*2170*1630 |
26 / 54 / 65 |
IP500-1800/58-30 |
30 |
300L |
2.29 |
164 |
1830*2650*1630 |
22 / 45 / 53 |

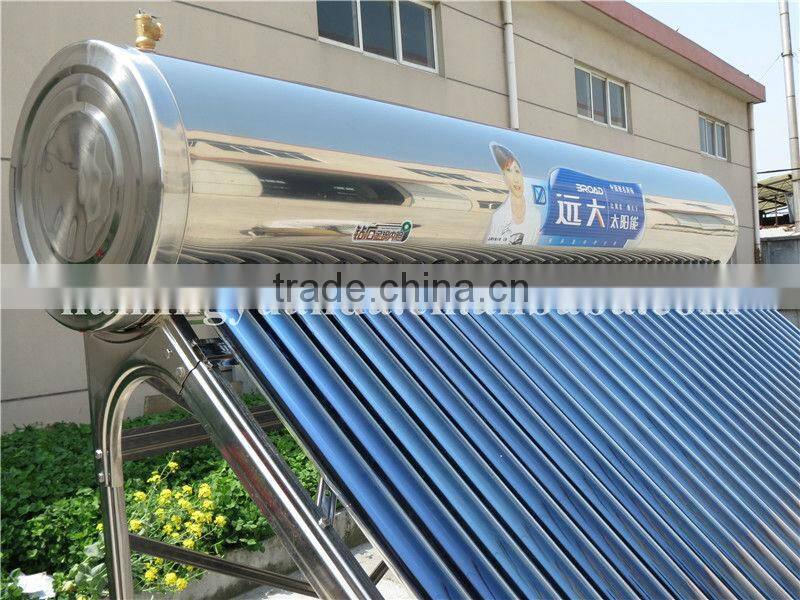

1. Inner tank: 1.2mm food grade stainless steel304, Outer tank: 0.4mm color steel /stainless steel
2. Insulation: 50-55mm polyurethane,heat preservation 72hours/3days
3. Capacity: From 100L To 500L
4. Pressurized tank, working pressure 6 bar, Max resistance 12 bar.
5. Copper heat pipes for rapid heat transfer, No water through the tube, So it can good working in winter without freeze.
6. Daily efficiency: ≥ 55% (≥ 42% in winter)
7. Working temperature: 60 Degree Celsius -35 Degree Celsius

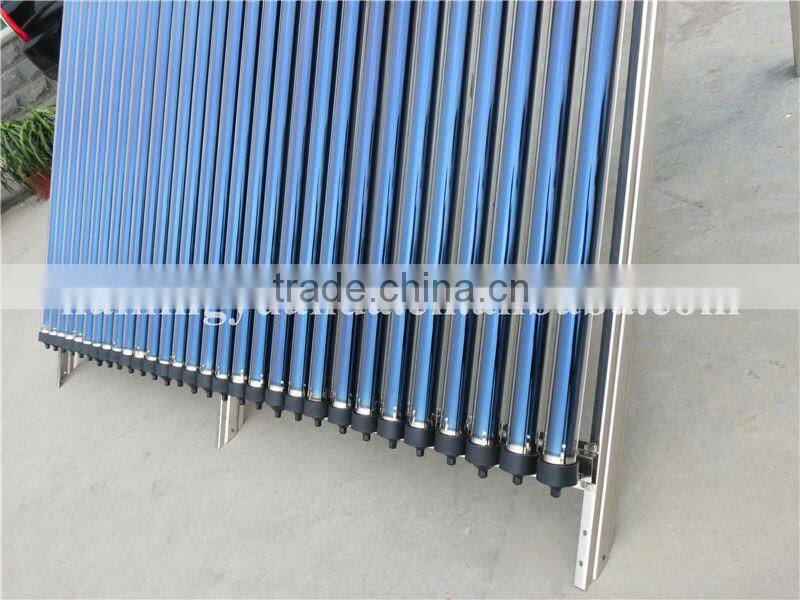

8. Vacuum tube specifications: 58mm*1800mm
9. Lifetime: 15 years
Remark
Delivery time: 7-15days
Payment term: T/T, L/C, Western Union
Warranty: 5 Years for the full system, 15 Years for the vacuum tube, and 1year for the accessories
Delivery term: FOB preferred, CFR and CIF acceptable

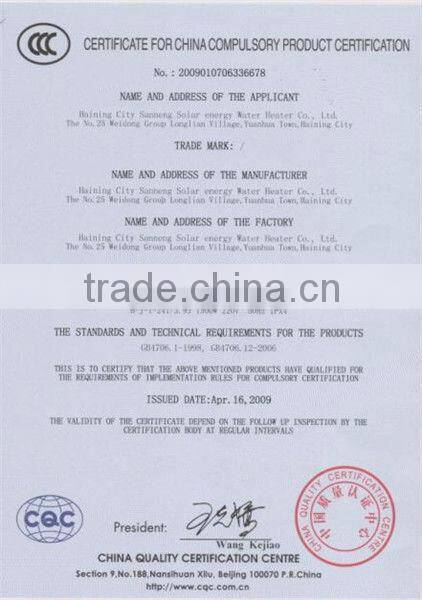

Certificates: CE,ISO,CCC
