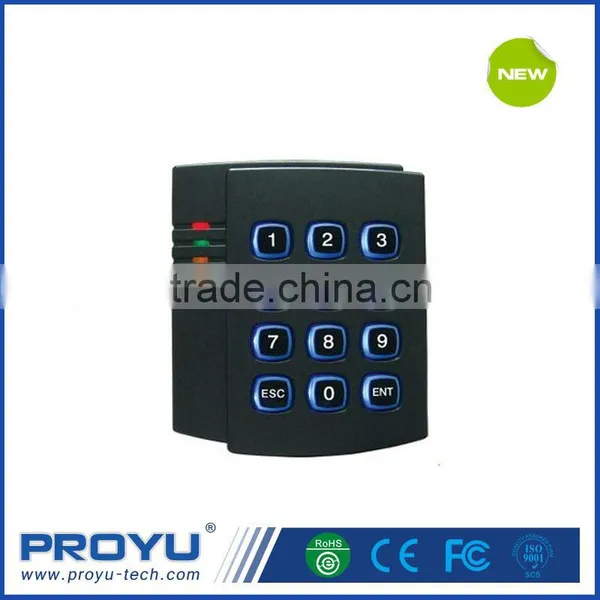

Brilliant Single Door RFID Access Control With Blue Backlight

Name: Brilliant Single Door RFID Access Control With Blue Backlight
Brand: PROYU
Price: USD $16 - 26 / Piece

FOB Price

USD $16 - $26 / Piece

10 Pieces(Min.Order)

Supply Ability 300 Piece / Pieces per Month
Port SHEN CHINA
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Guangdong, China

Brand Name:

PROYU

Model Number:

PY-AC116

Product Description

Specifications

1.rfid access control support 500 user,read EM card,
2.Support continuum adding cards,with blue backlight

Brilliant Single Door RFID Access Control With Blue Backlight PY-AC116

FEATURES

This models look generous, stable performance, use for the office, office buildings and so on. 500 cards has adequate capacity to meet users need, a variety of ways to open the door allows you to set permissions arbitrary.

Working environment: Voltage: DC +8 V-+15 V (standard 12V) Current:when Do not drive electric lock ≤ 70mA Temperature: 0 °C -70 °C Humidity: 30% -90%	5 kinds of open-door mode : card to open the door Password to open the door card + password to open the door card + card to open the door password + password to open the door
Wiring port definition and performance: +12 V: powersupply anode, the effective range: DC +8 V-+12 V GND: power supply cathode, public land ALM: alarm output and alarm output low level ST: STATUS door magnetismterminal BT: BUTTON go button terminal, low-level unlock DO: Weigand 26 reader data lines (data 0) D1: Weigand 26 reader data lines (data 1) NC: normally closed relay points, current load capacity DC1A/120V NO: normally open relay point, current load capacity DC1A/120V	Features: 500 people registered capacity, high cost performance, digging every hardware resources. Quick issuers mode, whether it is registered general card or the card with a password can be registered, passwords input setup by cardholders their own input in the first time door state detection, only after close stable then start locking signal, preventing the door in the swing when the latch, resulting in on the impact of electric locking bolt. with door magnetism interface, with the alarm when open the door violence.
Indicator: Red light: Power instructions the red Power is red light means normal. Green light: the green light, said unlock, put out that state lock. Yellow light: yellow light flashing, said waiting for keyboard input, always yellow light open said that the programming mode.	Note: A machine does not have this feature different models registered capacity from 100 to 5,000 range.

Contact Us

Shenzhen Proyu Technology Co., Limited: Contact nameSunny Xiong; Phone86-755-82778062; Address5#307 Jinfanghua No.2 Xinhe, Hebei, Bantian Street, Longgang District,Shenzhen China Shenzhen,Guangdong
