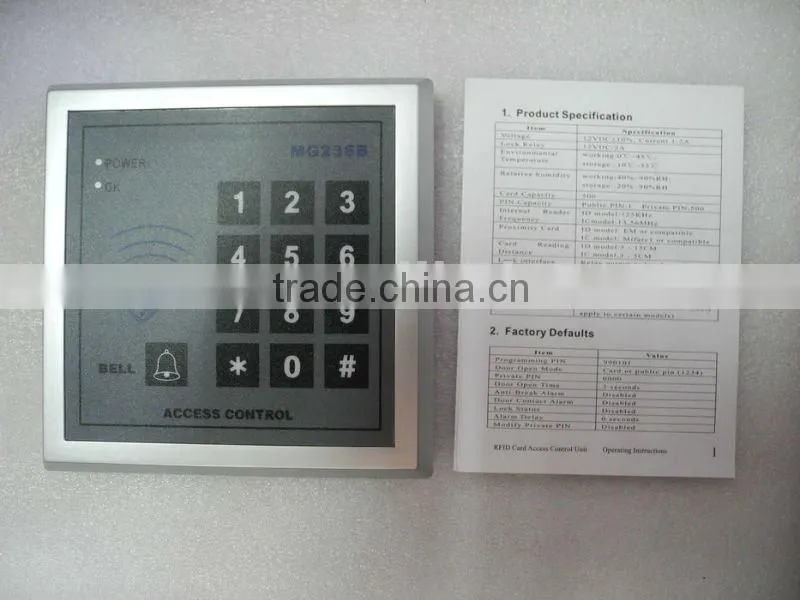

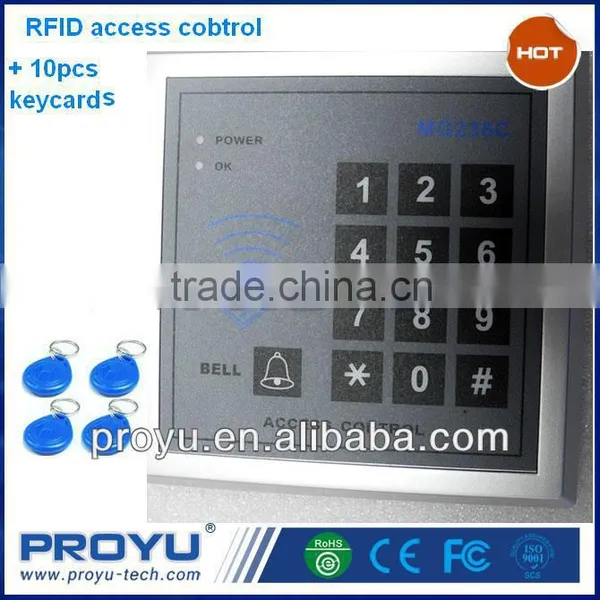

Hot RFID Card digital keypad access Control with door bell PY-MG236C
Technical Specification:
1. power supply: 12V DC, Electrical current: 150mA
2.Temperature: work: 045,storage: -1055
3. Relative hunidity: work: 40%RH90%RH,storage: 20% RH90% RH

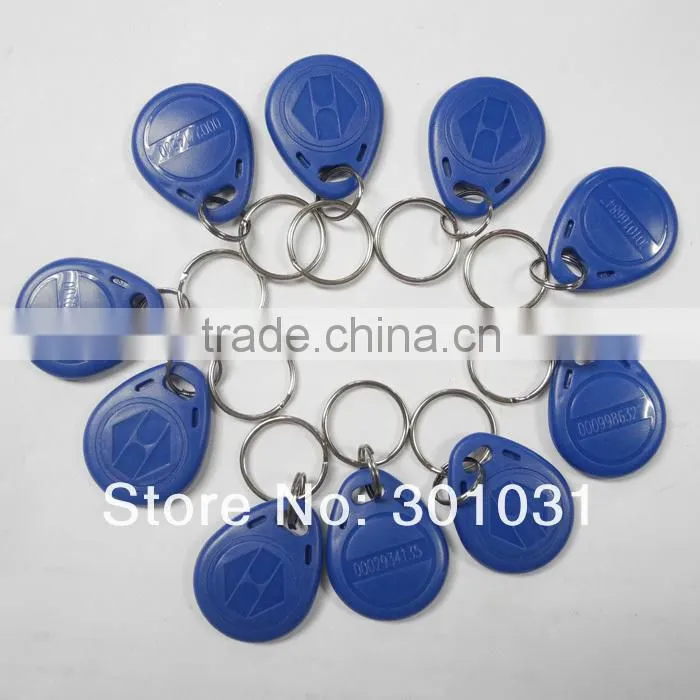

4.Inside card reader: ID type:125Kz, EM or compatible card;
5.MIFARE® type: MIFARE® Classic 1K or compatible card
6. Availability capability of card: 10000pcs
7.Currency password: 1 group
8.Open door mode: by card or Currency password; by card with Currency password
9.Alarm mode: overtime but the door still not closed; to compel the door closed.

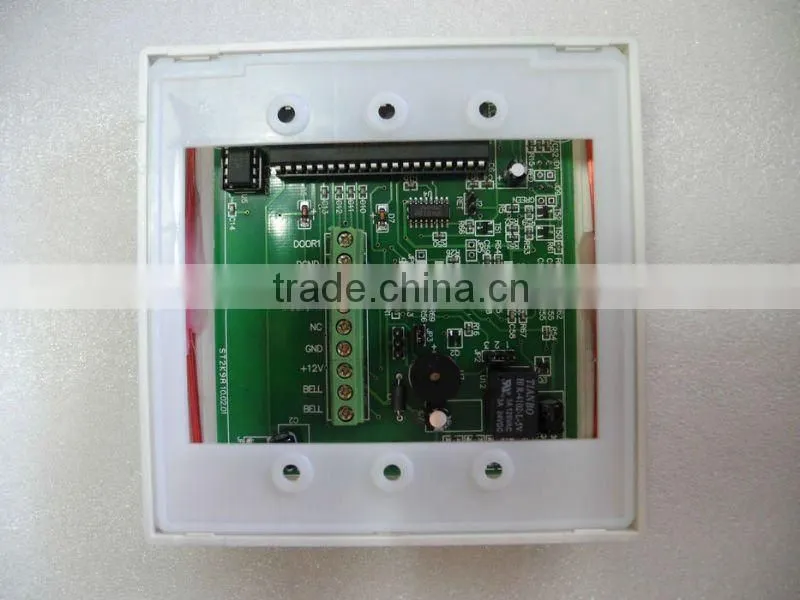

10. Peripheral equipment connector: electronic lock(contain the relay output and PWL level 11.output); door magnetism,doorbell,door button.
12. Programme mode: keyboard
13.Plus and minus mode: continuum induction adding,continuum card number adding,single card delete.
14.Dimension: 116mm x 116mm x 21mm
User Manual :
Status type |
Red LED |
Green LED |
Yellow LED |
Buzzer |
Normal Working State |
on |
|
flash |
|
Authorized Card Read /Valid PIN/Exit Button Pressed |
on |
on |
|
a short beep |
Wrong PIN Entered |
on |
|
flash |
a long beep |
Non Authorized Card Read |
on |
|
flash |
a long beep |
Acceptable Key Pressed |
on |
|
flash |
a short beep |
Door Sensor, Anti-Break Sensor Alarmed |
on |
|
flash |
continuous beeps |
Programming Mode |
on |
on |
flash |
2 short beeps |
Key In Right Programming Instruction |
on |
on |
flash |
2 short beeps |
Key In Wrong Programming Instruction |
on |
on |
flash |
3 short beeps
|
