Specifications
1.rfid card metal access control with digital keypad2.backlight,fashion silver finish
3.Short-circuit protect,Wiegand output.

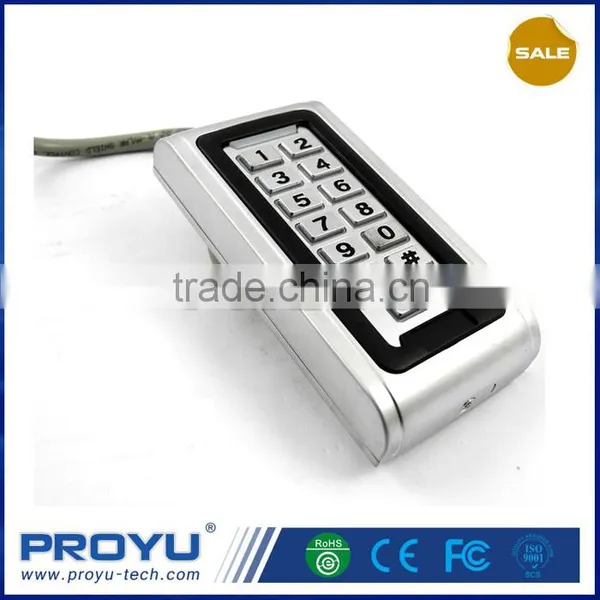

Standalone rfid card metal access Controller with backlight,digital keypad PY-S600
Features:
1. Perfect disign, with backlight and fashion silver finish.
2. Waterproof design for outdoor use.
3. strong standalone function device, can be used as WG26 reader alone.
4. Capacity:2000 user’s cards,2000 codes;
5.. Access ways : cards ,code,card +code.
6, Low power :static current less than 30mA.
7, Support only keypad ,
8, users can reset private passwords
9, Search fast less than 0.1s .
10, Wiegand output Wg26 for card and Wg34 for codes.
11, use keypad to delete lost cards for safety.
12, Short-circuit protect : when relay or alarm output short circuit, it will shut up output in 100μS.
Technical parameters:
Work Voltage: DC9-28V
Static Current: ≤30mA
Reading Range: 3~8cm
Capacity: 2000 users
Environment Temperature: -25°C~60°C
Environment Humidity: 10%~90%
Electric lock output: ≤3A
Alarm output: ≤20A
Output short-circuit protection time: ≤100μS
Open-door time: 0 ~ 99 seconds (adjustable)
Size: 120 *56*18mm
Products types:
Model no |
Card style |
frequency |
Reading range |
S600EM |
EM |
125KHz |
5-15CM |
S600MF |
RFID IC |
I3.56MHz |
3-10CM |
