Specifications
1.Metal Case with Luminous keypad, anti-vandal2. Waterproof Rating IP68.
3, waterproof keypad access control

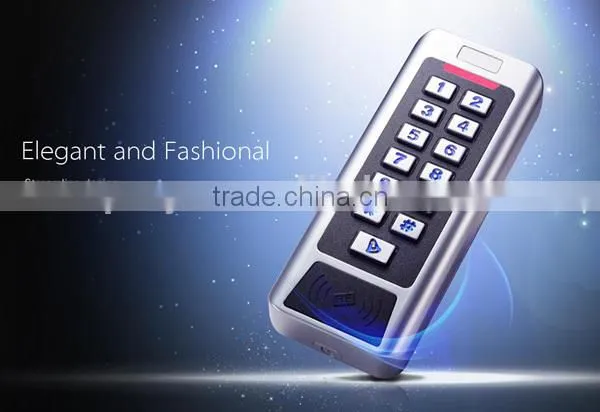

Metal Wiegand output standalone Waterproof keypad access Control
1. Features
· 2 Relays
· Zinc alloy case, waterproof IP68
· Working voltage:12V±10% AC/DC
· Zinc Alloy case, anti-vandal
· Luminous keypads
· Idle Current:25±5mA
· backlit keys, the back light can be set for Normal ON,Normal OFF or Human-Approach ON
· Wiegand 26-37 bits input for connecting with a reader
· Wiegand 26 output for connecting to a controller
· Capacity: 2,000 users, support Card, PIN, Card + PIN
· Standalone for single door or standalone for two doors
· Two units can be interlocked
· Anti-passback
2. Specifications
Card type: RFID Card
Frequency: 125KHz
Waterproof degree: IP68
Environment Humidity: 10%~90%
Lock output: ≤3A
Working voltage: DC12V±10%
Static electricity: ≤30mA
Alarm output: ≤20A
Output short circuit protection time: ≤100μS
Card read distance: 5~8cm
Ambient temperature: -45℃~60℃
Door Opening Time: 0~99s(Adjustable)
Dimension: 145 *58*22mm

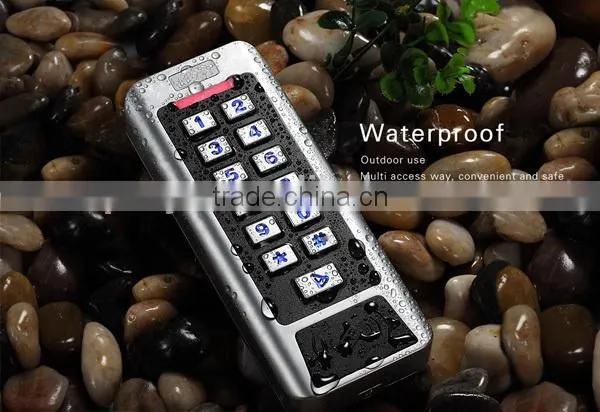

Metal Wiegand output standalone Waterproof keypad Access Control picture:
