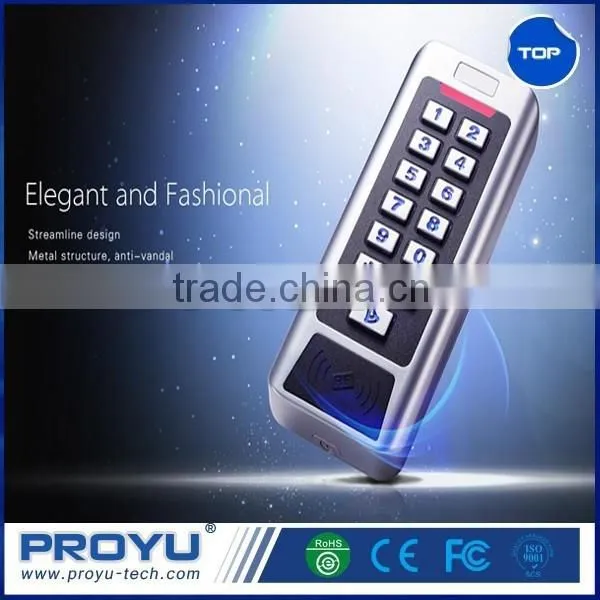

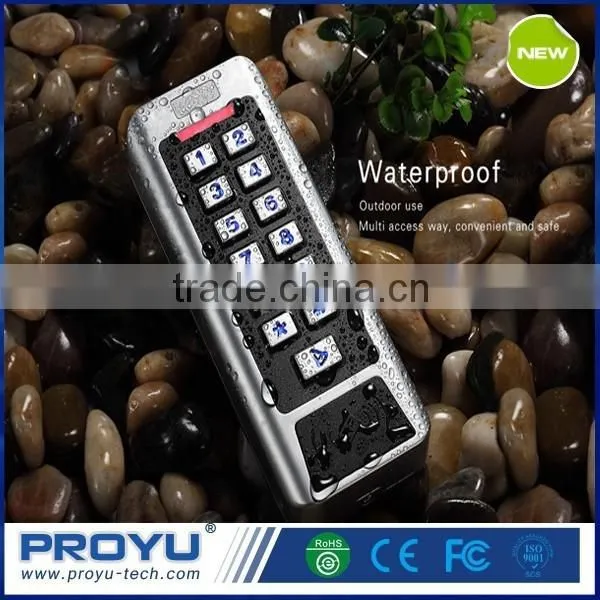

Keypad waterproof outdoor access control PY-CC1EH
With external reader for two doors
Two units interlocked for two doors
Anti-passback for single door
Anti-passback for two doors.
Feature:
* Two relays, supports up to 2000 users in total for two zones
* Have 7 working modes
1. Wiegand reader
2. Standalone for single door
1. Standalone for two doors
2. With external reader for two doors
3. Two units interlocked for two doors
4. Anti-passback for single door
5. Anti-passback for two doors.
* Waterproof structure design, fit for IP68 waterproof degree
* Digital backlit keypad, the backlit can be set to Normal ON,
* Normal OFF, or Human-approach
* Can add consecutive user cards quickly in one time
Technical Parameter:
Card type: RFID Card
Frequency: 125KHz
Waterproof degree: IP68
Environment Humidity: 10%~90%
Lock output: ≤3A
Working voltage: DC12V±10%
Static electricity: ≤30mA
Alarm output: ≤20A
Output short circuit protection time: ≤100μS
Card read distance: 5~8cm
Ambient temperature: -45℃~60℃
Door Opening Time: 0~99s(Adjustable)
Dimension: 145 *58*22mm
