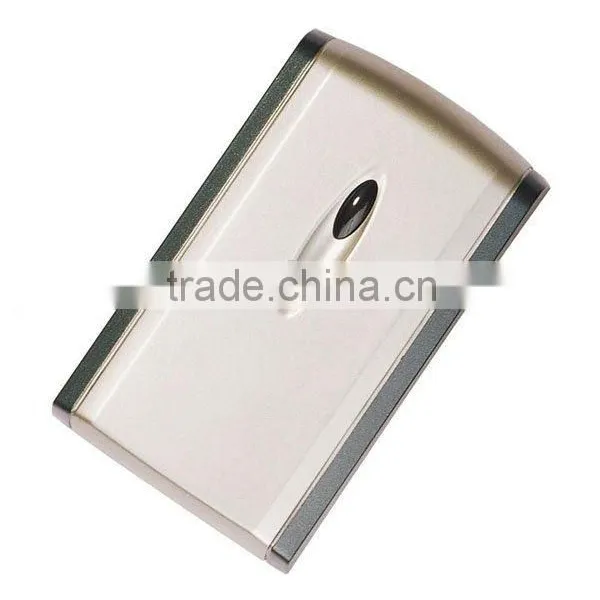

ID/IC Access Control Smart Card Reader PY-CR10

ID/IC Access Control Smart Card Reader PY-CR10 thumbnail-1
ID/IC Access Control Smart Card Reader PY-CR10 photo-1
US$ 8 - 12 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
PROYU
Model Number:
PY-PY-CR10
Contact Supplier Request Quote Chat Now
Shenzhen Proyu Technology Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name PROYU
Model Number PY-PY-CR10
                                           ID/IC access Reader PY-CR10

Product Introduction
About Use
When the card approach the reader, the red light turn into green, after glinting to turn redcolor again, the buzzer sound shows transiting data. It has 500ms proximity time distance for card proximity. After finishing card proximity, if the same ID card is still in the proximity range, reader will not send out the data, neither giving any sound hint. But for Different ID card entering Proximity Area, Reader can do response continually and send out the data.
·        Wiegand 26bits/ Wiegand34bits /ABA Standard Format Data Output
·        Less than 0.2 second Response Speed
·        Less than 0.5 seconds Proximity Time Distance:
·        2-15cm Proximity Range
·        Support UEM 4100 ID Card or compatible with it( 64bits, Manchester Code) and MIFARE®Card
·        -25°C to 75°C Ambient Temperature,10%-90% Ambient Humidity
·        Built-in Antenna
·        Built-in LED (Double Color LED)
·        Built-in Loud Speaker (Buzzer)
·        DC 12V Working Voltage,70mA Working Current
·        100 Meters Communication Distance
·        Real Time Data Transfer
·        Black Color
·        PVC Case Material (Black Resin for Water-Proof Function)
·        123.5*72*22.5(mm)
Specification
·        Wiegand 26bits/ Wiegand34bits /ABA Standard Format Data Output
·        Less than 0.2 second Response Speed
·        Less than 0.5 seconds Proximity Time Distance:
·        2-15cm Proximity Range
·        Support UEM 4100 ID Card or compatible with it( 64bits, Manchester Code) and Mifare 1 Card (13.56 MHz Frequency)
·        -25°C to 75°C Ambient Temperature,10%-90% Ambient Humidity
·        Built-in Antenna
·        Built-in LED (Double Color LED)
·        Built-in Loud Speaker (Buzzer)
·        DC 12V Working Voltage,70mA Working Current
·        100 Meters Communication Distance
·        Real Time Data Transfer
·        Black Color
·        PVC Case Material (Black Resin for Water-Proof Function)
·        123.5*72*22.5(mm)

 Notice

1. Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply
2. When external Power is used, make sure sharing the power with Controller Box or using the same GND
3. When the distance between card reader and controller is more than 50m, please use Power Line with at least 1.5 square cm Dia, or using several parallel Network wires

If you want to know more information, welcome to visit our website:
