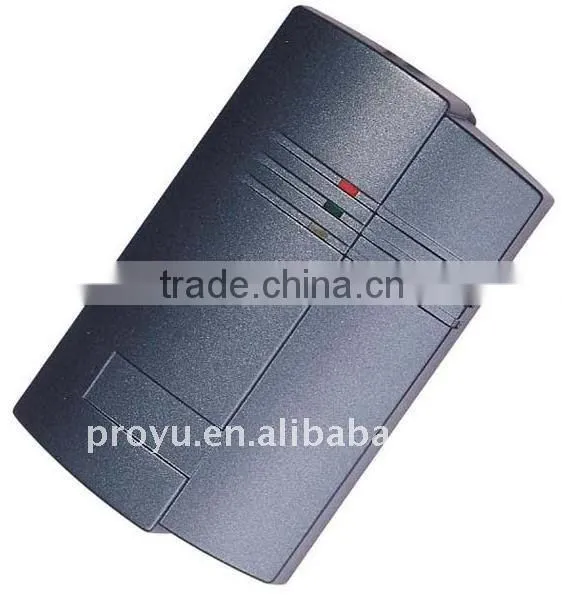

Waterproof ID Access Control Card Reader with Wiegand 26 output PY-CR5

Name: Waterproof ID Access Control Card Reader with Wiegand 26 output PY-CR5
Brand: PROYU
Price: USD $8 - 15 / Piece

FOB Price

USD $8 - $15 / Piece

1 Piece(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port Shenzhen or Hongkong
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Guangdong, China

Brand Name:

PROYU

Model Number:

PY-CR5

Product Description

Specifications

1.ID Access Control Card Reader;
2.2-15cm Proximity Range;
3.Communication:WG26(WG34 optional)

Waterproof ID IC Access Control Card Reader with Wiegand 26 output PY-CR5

About Use

When the card approach the reader, the red light turn into green, after glinting to turn redcolor again, the buzzer sound shows transiting data. It has 500ms proximity time distance for card proximity. After finishing card proximity, if the same ID card is still in the proximity range, reader will not send out the data, neither giving any sound hint. But for Different ID card entering Proximity Area, Reader can do response continually and send out the data.

Specification

· Wiegand 26bits/ Wiegand34bits /ABA Standard Format Data Output

· Less than 0.2 second Response Speed

· Less than 0.5 seconds Proximity Time Distance:

· 2-15cm Proximity Range

· Support UEM 4100 ID Card or compatible with it( 64bits, Manchester Code) and MIFARE® Classic 1K Card

· -25 to 75 Ambient Temperature,10%-90% Ambient Humidity

· Built-in Antenna

· Built-in LED (Double Color LED)

· Built-in Loud Speaker (Buzzer)

· DC 12V Working Voltage,70mA Working Current

· 100 Meters Communication Distance

· Real Time Data Transfer

· White or Black Color

· 114*76*16 (mm)

Installation

Using + type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws.

Wire Connection

Red DC 5V-16V

Black GND

Blue D1

White D0

Brown BEEP

Green LED

Yellow Alarm

Notice

1. Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply.

2. When external Power is used, make sure sharing the power with Controller Box or using the same GND.

3. When the distance between card reader and controller is more than 50m, please use Power Line with at least 1.5 square cm Dia, or using several parallel Network wires.
