White and Black Color Wiegand26 Access Control Smart Card Reader

White and Black Color Wiegand26 Access Control Smart Card Reader thumbnail-1
White and Black Color Wiegand26 Access Control Smart Card Reader photo-1
US$ 8 - 16 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
PROYU
Model Number:
PY-CR22
Contact Supplier Request Quote Chat Now
Shenzhen Proyu Technology Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name PROYU
Model Number PY-CR22

Specifications

1. Wiegand 26bits
2.smart card reader
3. DC 12V Working Voltage

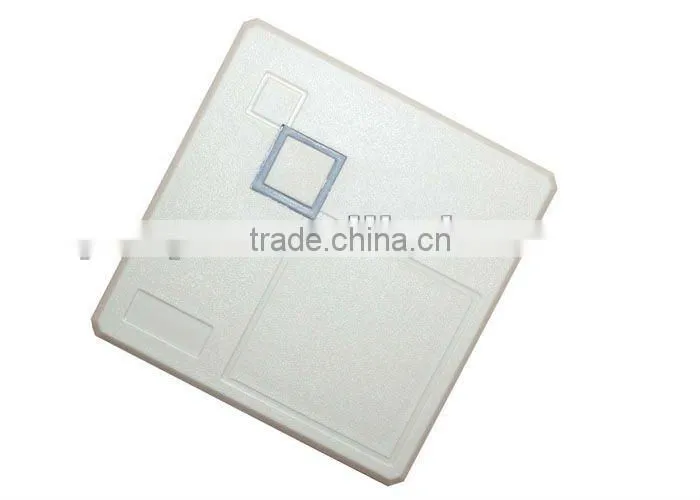

white and black color Wiegand26 access control smart card reader PY-CR22





white and black color Wiegand26 access control smart card readerwhite and black color Wiegand26 access control smart card reader





About Use

When the card approach the reader, the red light turn into green, after glinting to turn redcolor again, the buzzer sound shows transiting data. It has 500ms proximity time distance for card proximity. After finishing card proximity, if the same ID card is still in the proximity range, reader will not send out the data, neither giving any sound hint. But for Different ID card entering Proximity Area, Reader can do response continually and send out the data


smart card reader PY-CR22 Specification

·        Wiegand 26bits/ Wiegand34bits /ABA Standard Format Data Output

·        Less than 0.2 second Response Speed

·        Less than 0.5 seconds Proximity Time Distance:

·        2-15cm Proximity Range

·        Support UEM 4100 ID Card or compatible with it( 64bits, Manchester Code) and other RFID card.

·        -25°C to 75°C Ambient Temperature,10%-90% Ambient Humidity

·        Built-in Antenna

·        Built-in LED (Double Color LED)

·        Built-in Loud Speaker (Buzzer)

·        DC 12V Working Voltage,70mA Working Current

·        100 Meters Communication Distance

·        Real Time Data Transfer

·        White or Black Color

·        114*76*16 (mm)



smart card reader PY-CR22 Installation

Using + type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws.



smart card reader PY-CR22 Wire Connection

Red           DC 5V-16V
Black         GND
Blue           D1
White         D0
Brown        BEEP
Green        LED
Yellow        Alarm



Notice

1. Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply
2. When external Power is used, make sure sharing the power with Controller Box or using the same GND
3. When the distance between card reader and controller is more than 50m, please use Power Line with at least 1.5 square cm Dia, or using several parallel Network wires
