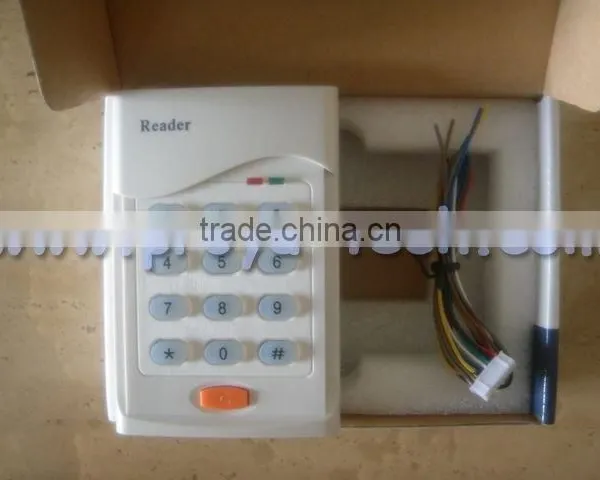

Low Price RFID Keypad Card Reader PY-CR2
US$ 8 - 16
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
PROYU
Model Number:
PY-CR2
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wiegand26(RS232/485 Customized) RIFD Card Reader With Key Pad for Access Control PY-CR6US$ 16 - 23MOQ: 1 Piece -
Full Sealed RIFD Card Reader for Access Control System With Led Indicator PY-CR5US$ 7 - 13MOQ: 1 Piece
-
Waterproof RFID Access Control Card Reader Less Than 0.2 Second Response Work With Access Controller PY-CR4US$ 8 - 15MOQ: 1 Piece
-
Full Sealed RIFD Access Control Card Reader PY-CR1US$ 7 - 12MOQ: 1 Piece
-
Access Control Keypad Card Reader PY-CR31US$ 12 - 14MOQ: 50 Pieces
Place of Origin
Guangdong, China
Brand Name
PROYU
Model Number
PY-CR2
Specifications
1.Standard Wiegand26 Format Output2.Dimension:118mm*78mm*28mm
Low price RFID keypad card reader PY-CR2
Specification
· Wiegand 26bits/ Wiegand34bits Standard Format Data Output
· Support ID (UEM 4100,125 KHz, 64bits, Manchester Code) Card or PIN Opening Door Mode.
· Less than 0.2 second Response Speed
· Less than 0.5 seconds Proximity Time Distance:
· 2-15cm Proximity Range
· -25 to 75 Ambient Temperature
· 10%-90% Ambient Humidity
· Built-in Antenna
· Built-in LED (Double Color LED)
· Built-in Loud Speaker (Buzzer)
· DC 5V-16V Working Voltage. Standard Direct Current 12V
· 70mA Working Current
· 100 Meters Communication Distance
· Real Time Data Transfer
· Black Color
· Standard Style (3×4) Keyboard Format
· PVC Case Material (Black Resin for Water-Proof Function)
· 114*76*16 (mm)
Installation
Using + type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws.
Wire Connection
Red +12V
Black Wire GND
Blue Wire DATA1
White Wire DATA0
Green Wire Green LED
Brown Wire Buzzer
