China thermal insulation ceramic fiber paper

Specifications

1. Low thermal conductivity, low thermal capacity
2. Low shot content
3. Good resistance to tearing, High flexibility

Ceramic Fiber Paper





Description

1. CT ceramic fibre paper is manufactured from high purity ceramic fibre, adopt the wet inorganic ceramic fiber mechanization to implement a continuous production
2. Advanced production techniques ensure uniform fibre distribution and close control of thickness and density
3. ceramic fibre paper adds minimum addition of carefully selected bonds, which burn out cleanly in service





Feature

1. Low thermal conductivity, low thermal capacity
2. Low shot content
3. Good resistance to tearing, High flexibility
4. Do not contain asbestos, resistance to corrosion, not react to liquid aluminum
5. Good electrical insulation and sound insulation performance
6. excellent mechanical performance



Typical Applicant

1. Industrial insulation, seal, protective materials
2. Electric heat device insulation, heat insulation materials
3. Molten metal gasket
4. Instrument equipment, electric heating element of insulation and heat insulation materials
5. Fire protection
6. Thermal barriers for vehicles
7. fillers of Expansion joints



Date sheet



Classification temperature (OC)		1260	1430
Density (kg/m3)		200±15	200±15
Organic content ( %)		6-8	6-8
Tensile strength  kpa		1mm ≥ 300; 2mm-6mm ≥ 400
Permanent linear shrinkage (OC *24h)		≤3.5 (1000°C)	≤3.5 (1200°C)
Thermal Conductivity (W/m.k)	200OC	0.075-0.085
	400OC	0.115-0.121
	600OC	0.165-0.175
Chemical composition%	AL2O3	43	32
	AL2O3+SIO2	98
	AL2O3+SIO2+ZrO2		99
	ZrO2		12

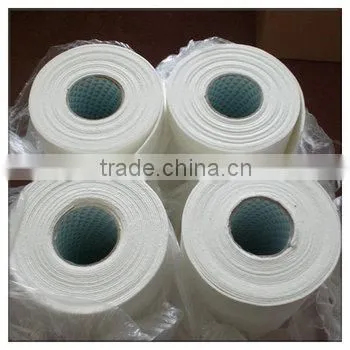

Product pictures
