LP type electric single-girder crane , LP bias rail mono beam overhead crane
Lifting weight of 3.2-12.5 t, 7.5 31.5 m span, it has ground controlling and control room manipulation of the two forms, can be work in tempeature from - 20 ~ C + 40 ℃ .
The main characteristics:
1), Electric hoist is located in the main girder side, increasing the service space of the hook, which can reduce the cost of plant height and cost.
2), The trolley wheel base is big, smooth operation.
3), The Crane use double speed motor drive, stable starting running, dock accurately.
4), Traveling mechanism as a separate component, it is conducive to processing, assembly and maintenance. 7 gear accuracy using QS series triple reducer, low noise, long life.
5), Good-looking appearance

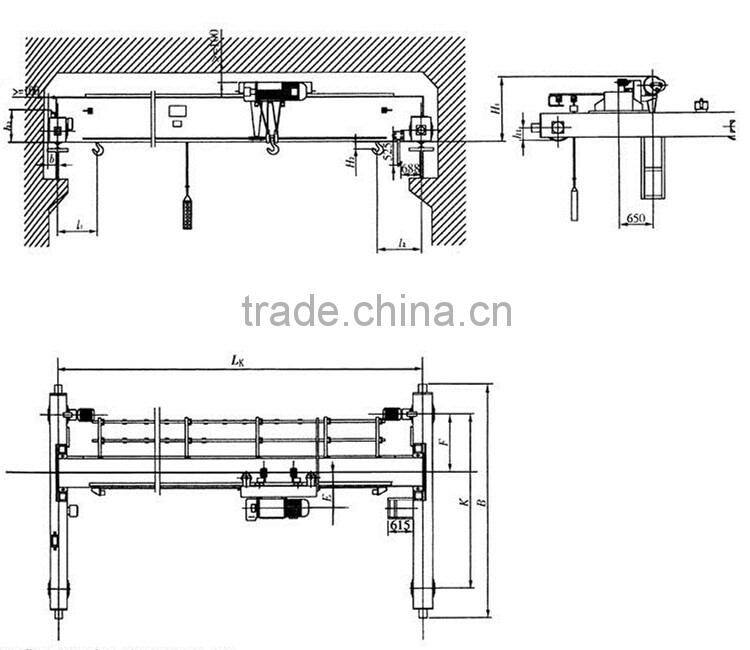

Drawing:
Xinxiang City, Henan Zhongyuan Hoisting Machinery Plant Co., Ltd. was established in 1985, it's crane manufacturer of the Ministry of Machinery Industry of China. Our Co.,Ltd is national grade two measure qualified department and we pass the ISO9001 international certification in 1999. The products are marketing in various industries of mine, building material, chemistry, electric power , communications, railway, olifield and port, etc. We have complete set CAD computer aided design systerm and large datebase; it is capable to undertake the design, manufacture and product development of various special purpose products and non-standard products.
Business Scope: LD 1-20t electric single-beam hoisting series products;5-600t general purpose bridge, gantry, metallurgy, upper rotation, lower-rotation electromagnetic suspend, insulation,grab bucket, explosion prevention crane series products LH3-100t electric block dual-beam series products; MH5-32t electric block gantry crane series products; 0.5-40t CD1 wire rope electric block series products series products; HS1 0.5-20t manual block series products; 0.5-10t ring-chain electric block serious products, 0.5-40t bend electric block series products; assemble and unassembled bridge , shipbuilding gantry crane, bridging crane, casting suspend and water and electricity large tonnage crane.
| Light crane A1 to A4 |
| Single girder bridge crane | 0.5 t / 1 t / 2 t / 3 t / 5 tons / 10 tons / 16 tons / 20 tons |
| Crane A5 to A6 |
| Single girder bridge crane | 5 tons / 10 tons / 16 tons / 20 tons / 30 tons |
| Single girder gantry crane | 5 tons / 10 tons / 16 tons / 20 tons / 30 tons |
| Double girder bridge crane | 5 tons / 10 tons / 16 tons / 20 tons / 32 tons / 50 tons |
| Double girder gantry machine | 5 tons to 150 tons |
| Heavy crane A8 to A9 |
| Double girder bridge crane | 5 tons to 500 tons |
| Single-beam gantry crane | 10 tons / 15 tons / 20 tons / 32 tons / 40 tons / 50 tons |
| Double girder gantry crane | 5 tons to 200 tons |
Packing:
1. Electrical parts and hoist are packed by strong plywood box or as client demand.
2. Main beam, end beam, platform railing and others are packed in plastic woven cloth, to prevent corrosion in seawater.
Your first choice for high efficiency work
1. 30years crane manufacture experience—We set up at 1985.
2. International standard indoor warehouse— we can delivery on time even bad weather
3. Famous trademark “Yuqi” , and we also have many certificate of patent.
4. Many senior crane design engineers, with fast and professional design.
5. Crane installation and crane commissioning service supply
Different type and special requirement can be customized.
