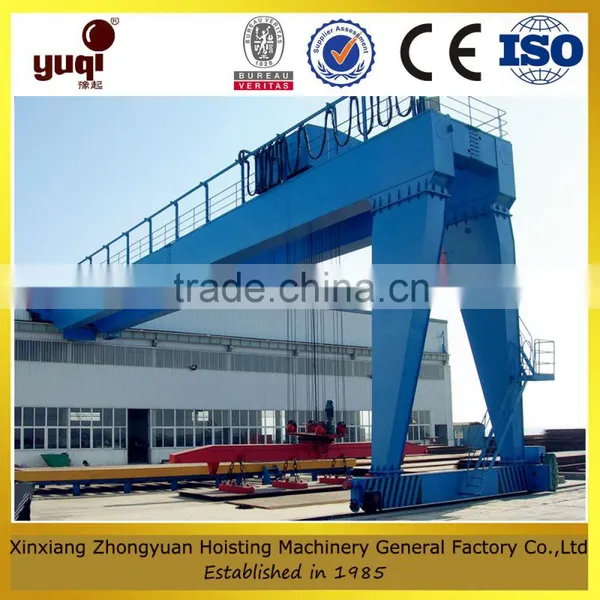

Double Girder Semi Gantry Cranes With Hoist 30t

Double Girder Semi Gantry Cranes With Hoist 30t thumbnail-1
Double Girder Semi Gantry Cranes With Hoist 30t photo-1
US$ 40,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New, New
Application:
Widely Used, Construction Usage, workshop Usage,Mineral Area Usage
Place of Origin:
Henan, China
Contact Supplier Request Quote Chat Now
Xinxiang Zhongyuan Hoisting Machinery Head Factory Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjian shanghai or others
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Application Widely Used, Construction Usage, workshop Usage,Mineral Area Usage
Place of Origin Henan, China
Brand Name yuqi
Certification ISO, CE, ISO, SGS and so on
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Semi gantry crane compared with electric single-girder crane, save investment and space, compared with electric hoist gantry crane, save the production space, therefore when selecting ordinary electric single-girder crane or electric hoist gantry crane is not very ideal, semi gantry crane is a better solution.

1, Semi gantry crane structure: by the lifting mechanism and the trolley, single girder and leg, electric cabinet, operating system and safety protection system, etc;

2. Semi gantry crane drive: squirrel-cage motor + machine of decelerate of hard tooth flank, disc brakes, free maintenance;

3. Semi gantry crane operation mode: the cable to hold (IP65, life 500000 times), wireless remote control, driving operation



 We designed Semi Gantry cranes with different capacities and spans that will meet your requirements



Lifting capacity t 10
Span m 10 12 16 20
Lifting height m 6
Travelling mechanism Travelling speed  Ground m/min 20
Controling room 20                30
Motor Ground
 		 ZDY(D)122-4/1.5 X2 ZDY131S-4/2.2 X2
Controling room
 		 ZDR100-4/1.5 X2 ZDR112L1-4/2.1 X2
Reducer
 		 LDA1     LDAC1 LDH     LDHC
Wheel diameter mm Φ270 Φ400
Electric hoist Type
 		 CD1                  MD1
Lifting speed m/min 7                    7/0.7
Travelling speed  m/min 20 (30)
Motor Lifting
 		 ZD151-4/13                                   ZDS11.5/13
Travelling
 		 ZDY121-4/0.8 X2
Working system A4
Steel track recommended P38
Power source 3-Phase 380V 50Hz
The crane weight Ground Kg 6600 7500 8350 10650
Controling room Kg 7400 8300 9150 11450
Max. wheel load KN 78 85 94 103
Basic dimendions H1 mm 1670
H2 900 1000 1100 1250
H3 720 865 920 970
B 4800 5200
B1 3700
B2 1600
B3 2000 2500 3000



                                       BMH Semi Gantry Crane
Capacity(t) 0.5t~20t as per requirements
Span(m) 7m~25m, or other special span
Lifting Height(m) 6m~30m or other specail height
Lifting Speed(m/min) single lifting speed or stepless speed(designed as per requirements)
Trolley Speed(m/min) single lifting speed or stepless speed(designed as per requirements)
Bridge Speed(m/min) single lifting speed or stepless speed(designed as per requirements)
Working Duty A3~A5 depends on application
Power supply 380V,50Hz or other
Company Information

Xinxiang City, Henan Zhongyuan Hoisting Machinery Plant Co., Ltd. was established in 1985, it's crane manufacturer of the Ministry of Machinery Industry of China. Our Co.,Ltd is national grade two measure qualified department and we pass the ISO9001 international certification in 1999. The products are marketing in various industries of mine, building material, chemistry, electric  power , communications, railway, olifield and port, etc. We have complete set CAD computer aided design systerm and large datebase; it is capable to undertake the design, manufacture and product development of various special purpose products and non-standard products.



Business Scope: LD 1-20t electric single-beam hoisting series products;5-600t general purpose bridge, gantry, metallurgy, upper rotation, lower-rotation electromagnetic suspend, insulation,grab bucket, explosion prevention crane series products LH3-100t electric block dual-beam series products; MH5-32t electric block gantry crane series products; 0.5-40t CD1 wire rope electric block series products series products; HS1 0.5-20t manual block series products; 0.5-10t ring-chain electric block serious products, 0.5-40t bend electric block series products; assemble and unassembled bridge , shipbuilding gantry crane, bridging crane, casting suspend and water and electricity large tonnage crane.

double girder semi gantry cranes with hoist 30t

Certifications



Main Tonnage crane
Light crane  A1 to A4
Single girder bridge crane              0.5 t / 1 t / 2 t / 3 t / 5 tons / 10 tons / 16 tons / 20 tons
Crane    A5 to A6
Single girder bridge crane                5 tons / 10 tons / 16 tons / 20 tons / 30 tons
Single girder gantry crane 5 tons / 10 tons / 16 tons / 20 tons / 30 tons
Double girder bridge crane 5 tons / 10 tons / 16 tons / 20 tons / 32 tons / 50 tons
Double girder gantry machine 5 tons to 150 tons
Heavy crane  A7 to A9
Double girder bridge crane               5 tons to 500 tons
Single-beam gantry crane    10 tons / 15 tons / 20 tons / 32 tons / 40 tons / 50 tons
Double girder gantry crane   5 tons to 200 tons
Our Services
1, After the depoist recieved, there will be a professional team tracking the order from produce to package and shipment.

2,  Testing:  All the marerials are purchased from high quality supplier in China or the world, beyond this, we also make commissioning and test before package to avoid the trouble back

3, One year warranty for whole machines; Low charge or even free for quick-wear parts.
Packaging & Shipping

Packing:

1. Electrical parts and hoist are packed by strong plywood box or as client demand.

2. Main beam, end beam, platform railing and others are packed in plastic woven cloth, to prevent corrosion in seawater.

Why choose us

Your first choice for high efficiency work

1.  30years crane manufacture experience—We set up at 1985.

2.   International standard indoor warehouse— we can delivery on time even bad weather

3.   Famous trademark “Yuqi” , and we also have many certificate of patent.

4.   Many senior crane design engineers, with fast and professional design.

5.   Crane installation and crane commissioning service supply

Different type and special requirement can be customized.
