Home > Products > Ceramic Fiber Board > Ceramic Fiber Board Package
Ceramic Fiber Board Package
USD $1,300 - $1,800
/ Piece
10 Pieces(Min.Order)
- 10000 Kilogram / Kilograms per Month
- Shanghai Port
- T/T
You May Like
Product Details
Application: | Liners Of Industrial Furnace | Thickness: | 13~100mm | Width: | 600/1000mm |
Length: | 900/1000/1200mm | Grade: | HA (High Aluminum) | Chemical Composition: | Al2O3,SiO2 |
Working Temperature: | 1360 | Fiber Diameter: | 3~4.5um | Thermal Conductivity: | 0.13-0.19 (w/m.k)(800-1000C) |
Shrinkage (1800℉, 3h): | -3 (24hours) | Place of Origin: | Jiangsu, China | Model Number: | CT 1360 |
Brand Name: | Cera Tec |
Product Description
Specifications
1.Low thermal conductivity and ow heat storage2.High temperature stability and resistant to thermal shock
Ceramic Fiber Board
Description
- All kinds of ceramic fibre board adopt ceramic fibre which is in Corresponding temperature level as raw material, through the large automatic vacuum filter molding machine to shape them, then they will be done after special baking.
- The product with good toughness and strength appears flattening and the ceramic material distributes uniformity, it also has excellent Thermal insulation performance
- Heating is not inflated, light, construction convenient, free shear and bending, is the ideal energy-efficient insulation materials of a furnace, piping and other equipment
Features
- Low thermal conductivity and ow heat storage
- High temperature stability and resistant to thermal shock
- High crushing strength and good toughness
- Allow machining and cutting, easy application
- Resistant to airflow erosion
Typical Application
- All kinds of industrial furnace hot face and back face insulation
- Kiln linerof the high-temperature furnace, kiln cars, door damper, furnace temperature to separate plate
- Deep processing products molding mould, like Craft glass etc
- Astronavigation,Shipbuilding heat insulation,fireproofing, sound proofing, insulation.

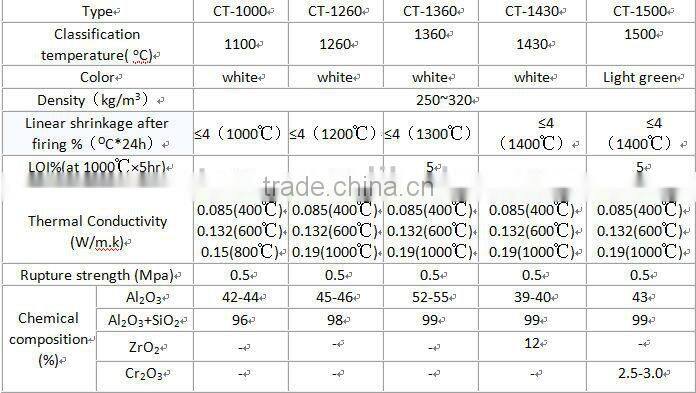

Technical Date
Length (mm) | 1200 | 1000 | 900 |
Width (mm) | 1000 | 600 | 600 |
Thickness (mm) | 13,20,25,30,40,50,75,100 |
Product Pictures

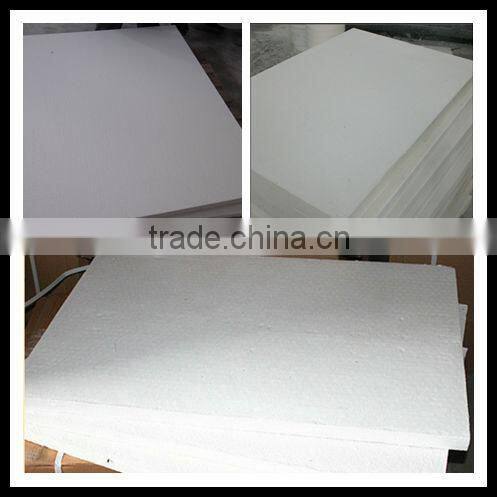

Ceramic fiber board

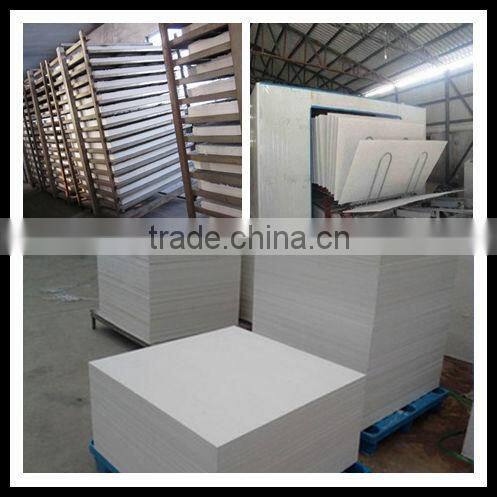

Board in factory

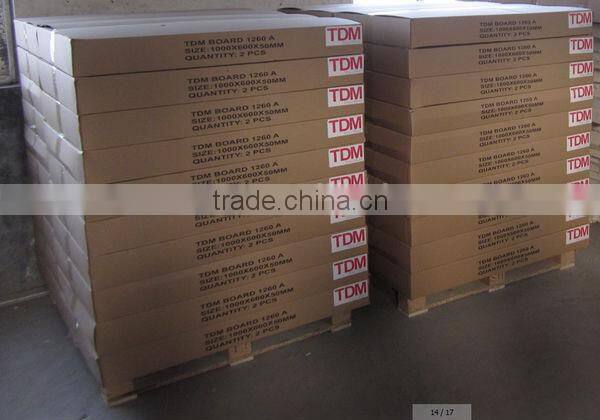

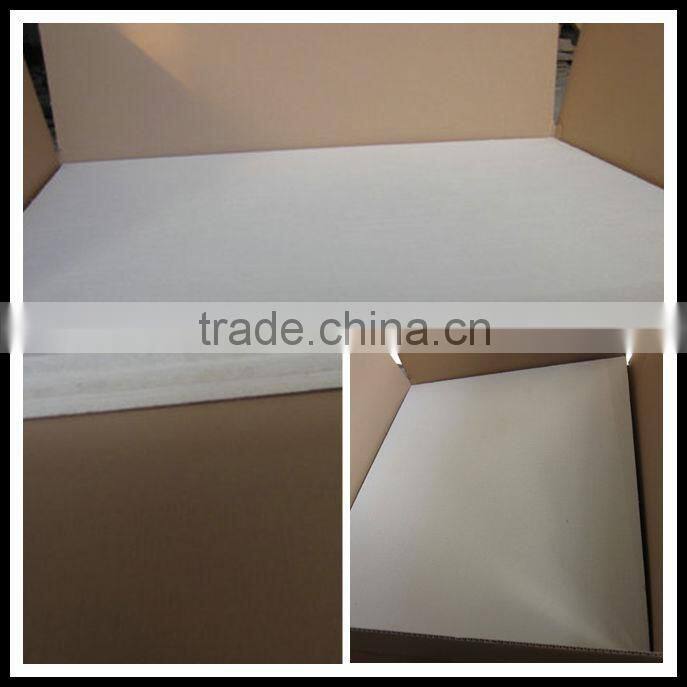

Board in cartons
Office in Nanjing
Factories in China
Project Construction
