CT Thermal Insulation Blanket Export

CT Thermal Insulation Blanket Export thumbnail-1
CT Thermal Insulation Blanket Export photo-1
US$ 5 - 20 MOQ: 10 Rolls
Key Specifications
Get Latest Price
Grade:
HP (High Pure)
Application:
Refractory
Thickness:
6~50mm
Contact Supplier Request Quote Chat Now
Jiangsu Cera Thermal Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port / Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Grade HP (High Pure)
Application Refractory
Thickness 6~50mm
Width 610/1220mm
Length 3600~14000mm
Chemical Composition Al2O3, SiO2
Working Temperature 1260℃
Fiber Diameter 3~4.5um
Shrinkage (1800 ℉, 3h) -3 (hours)
Thermal Conductivity 0.15(600℃), 0.19(800℃)
Model Number CT 1260
Brand Name Cera Tec
Place of Origin Jiangsu, China

Specifications

Thermal Insulation Blanket
1. High quality
2. Cheap price
3. China manufactutrer

 Thermal Insulation Blanket Export



Manufacture technology

  1. All kinds of aluminium silicate fibre blanket, made from common, high pure, zirconic, chromic aluminium silicate fibre, after the process of needling, thermoforming, crossbar cutting, rolling up ,etc. which is through double-sided needling operation by using spun technology. All kinds of needling blanket not only have the same excellent function of corresponding aluminium silicate fibre, but also have low shrink and high tearing strength. In addition, the blanket own even texture and integrity surface.
  2. CT spun fibre blanket adopt high pure raw materials without any binding agent, ensure the product own good reliability and stability in any environment. the function of the blanket isn’t affected by water and oil, it will recover its thermal performance and physical property after drying.
  3. Needling blanket in different size and thickness provide users a wide range of material selection to gain the best heat insulation structure and energy saving effect.

Features

  1. Low heat strong capacity, Low thermal conductivity
  2. Excellent thermal stability and shock resistance, resist devitrification at high temperature
  3. Excellent tearing resistant
  4. Excellent insulating performance, fire prevention and sound absorption
  5. Double—side needling operation produces tough, resilient and strong blankets, which resist tearing both before and after heating.
  6. Easy cutting and installation

Typical application

  1. All kinds of industrial kiln linings(hot surface and back lining)
  2. Furnace body expansion joint, furnace door,top cap seals
  3. High building fire proof and heat insulation
  4. Thermal resistance component of auto industry with
  5. High temperature filter media
  6. Insulation for field stress relieving of welds



Technical date



Type

 CT

1000

 CT

1260

CT

1360

CT

1430

CT

1500

Maftec

blanket

Classification

temperature (°C)

  1100  1260  1360  1430  1500  1600
Color   white  white  white  white  blue / green  white
Density  96/128/160

Permanent linear shrinkage

( heat preservation

24 hour,128kg/m3)



 ≤-4

(1000°C)

 ≤-3

(1000°C)

  ≤-3

(1100°C)

  ≤-3

(1350°C)

 ≤-3

(1350°C)

  ≤-0.9

(1600°C)

Thermal

conductivities ( W/n.k )

0.09

(400°C)

0.16

(800°C)

0.09

(400°C)

0.16

(800°C)

0.12

(600°C)

0.20

(1000°C)

0.16

(800°C)

0.20

(1000°C)

0.16

(800°C)

0.20

(1000°C)

0.27

(1000°C)

0.39

(1200°C)

Chemical

composition (%)

 Al2O3  42-44  45-46  52-55  39-40  43  72
SiO2  -  -  -  -  -  28
Al2O3+SiO2  96  98  99  99  99

Al2O3+SiO2+

ZrO2 (Cr2O3)

        99  99
ZrO2  -  -  -  15-17  -  -
Cr2O3  -  -  -  -  2.5-3.0  -


 Size (mm): 14640/7300/3600*610/1220*13/20/25/38/50

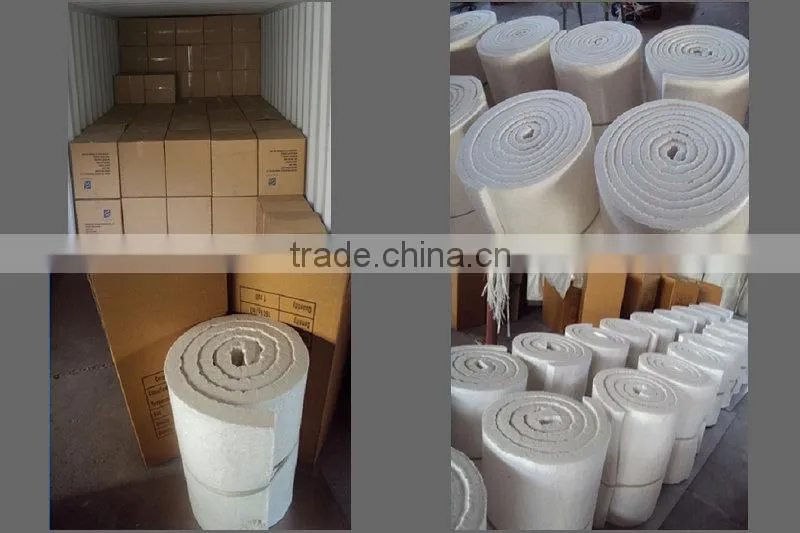

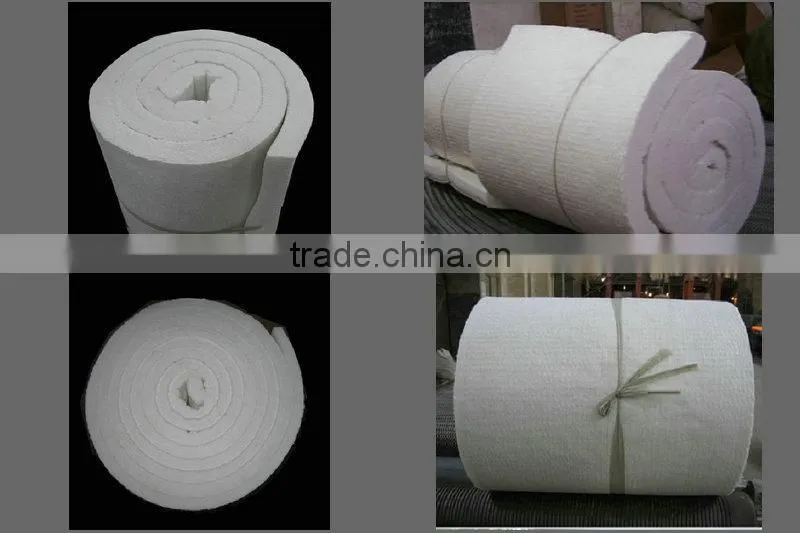

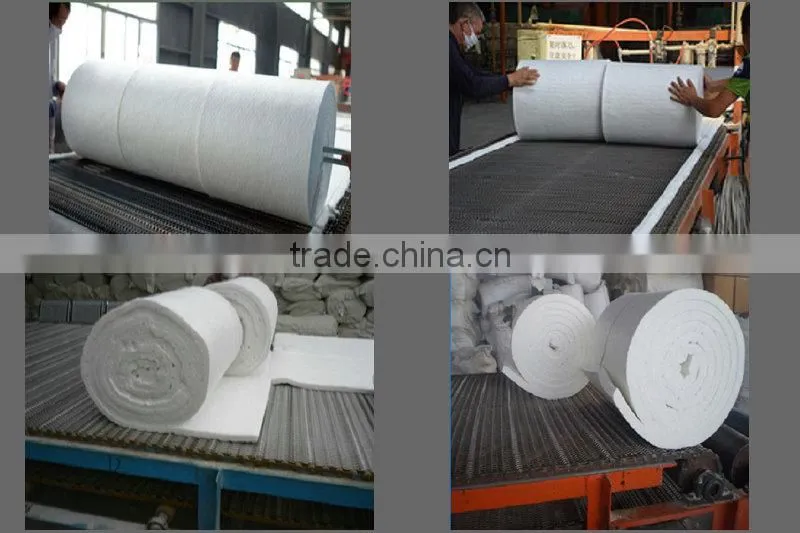

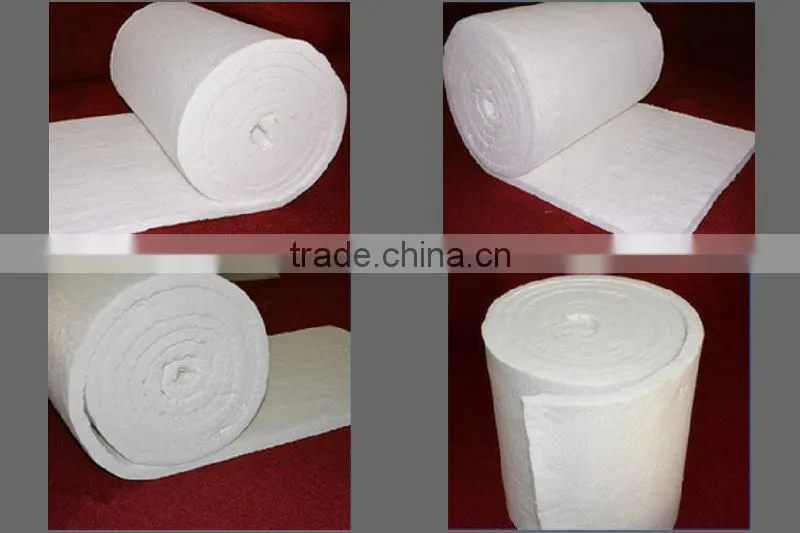

Product pictures



 CT Thermal Insulation Blanket Export CT Thermal Insulation Blanket Export  CT Thermal Insulation Blanket Export CT Thermal Insulation Blanket Export

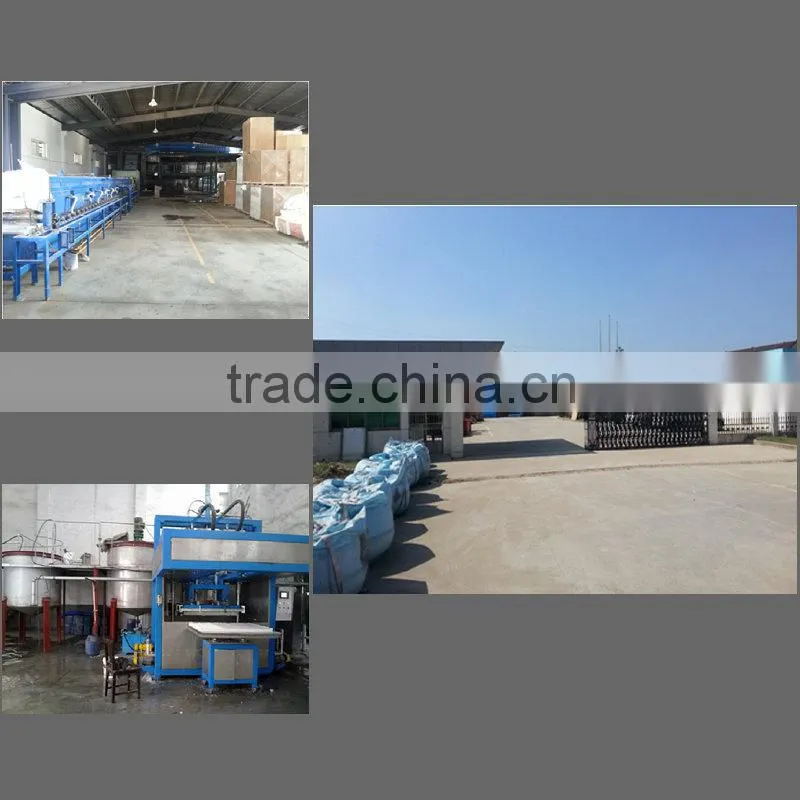

Office and factories in China



CT Thermal Insulation Blanket Export CT Thermal Insulation Blanket Export

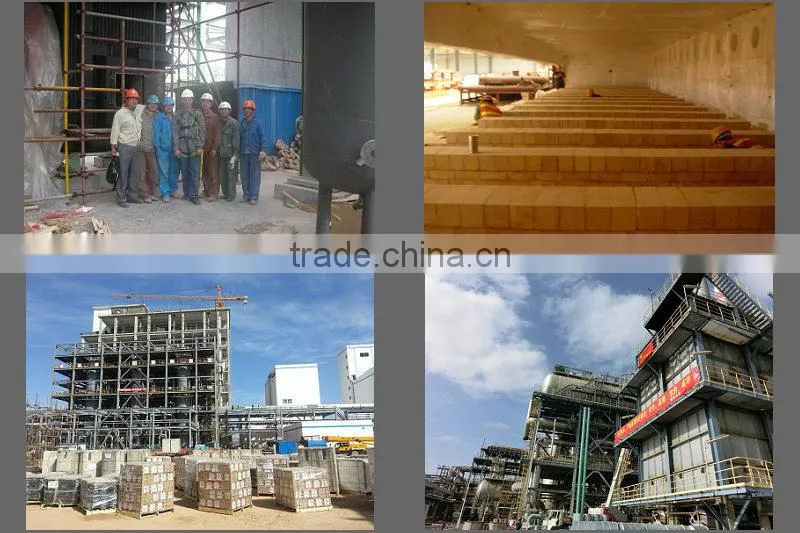

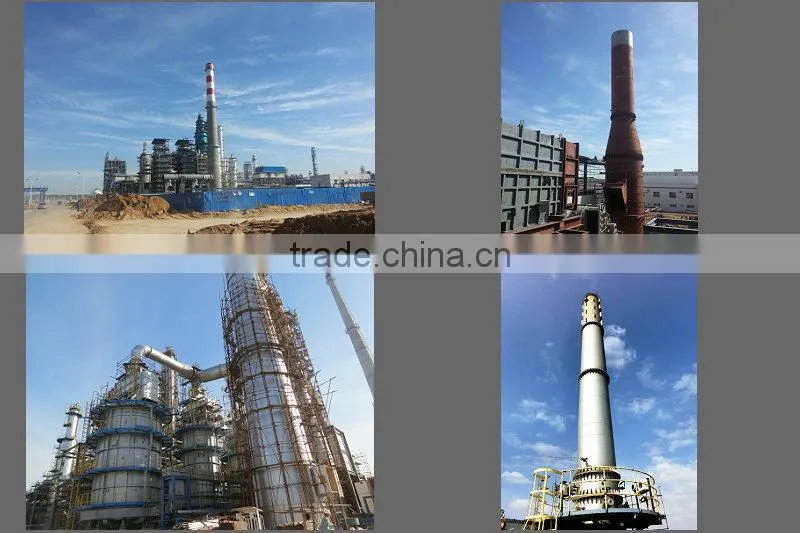

Construction projects



CT Thermal Insulation Blanket Export CT Thermal Insulation Blanket Export
