Help CenterHigh Temperature Resistance Glazed Ceramic GZC7-1 7 Pins Ceramic Tube Base for Vacuum Tube Socket
Related Products
-
High Temperature Resistance Steatite GZC9-F 9 Pins Ceramic Socket for Vacuum AmplifierUS$ 0.6 - 1MOQ: 1000 Pieces -
High Temperature Resistance Steatite Ceramic GZC4-1 4 Pins Ceramic SocketUS$ 0.6 - 1MOQ: 1000 Pieces
-
High Hardness Precision Zirconia Ceramic Part Zirconium Oxide CeramicUS$ 12 - 13MOQ: 100 Pieces
-
High Hardness Precision ZrOz Machined Zironia Ceramic ComponentUS$ 10 - 11MOQ: 100 Pieces
-
High Hardness Precision Zirconia Sleeve Machined Zironia Ceramic TubeUS$ 3 - 4MOQ: 500 Pieces

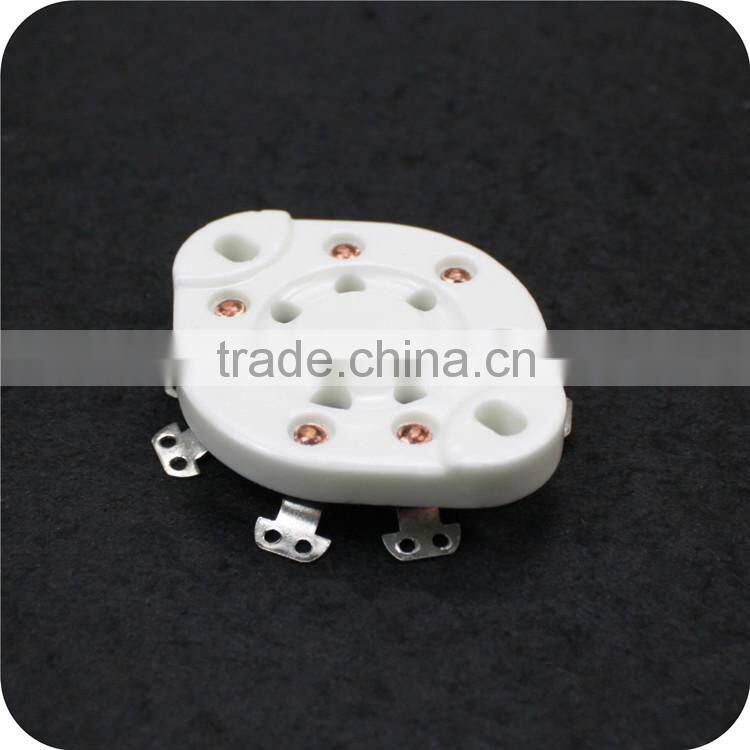

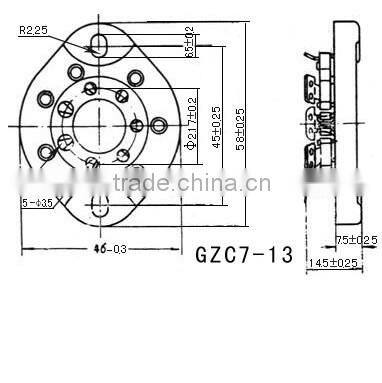

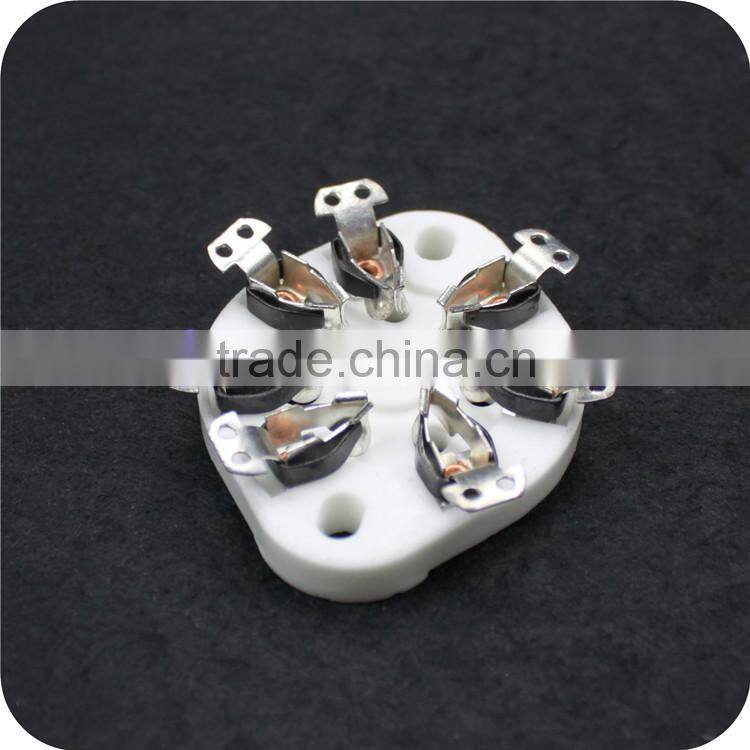

high temperature resistance glazed ceramic GZC7-1 7 pins ceramic tube base for vacuum tube socket
1. Material: Steatite ceramic
| Performance | |||||
| Item | Index | Unit | Steatite ceramic | 95 Al2O3 | 96 Al2O3 |
| Physical Characteristics | Bulk density | g/cm3 | 2.7 | 3.6 | 3.6 |
| Water absorption | % | 0 | 0 | 0 | |
|
Mechanical Characteristics |
Flexural strength | Mpa | 145 | 320 | 340 |
| Hardness Vickers | Gpa | 5.7 | 12.2 | 13.5 | |
| Elastic modulus | Gpa | 120 | 280 | 320 | |
| Poisson’s ratio | - | 0.21 | 0.22 | 0.23 | |
| Thermal Characteristics | Linear expansion coefficient | 20-5000C 10-6/0C | 7.9 | 7.1 | 7.2 |
| Thermal conductivity | w/(m.k) | 2.5 | 16 | 24 | |
| Specific Heat | *10-3J/(kg*K) | 0.75 | 0.78 | 0.78 | |
| Electrical Characteristics | Dielectric constant(1MHZ) | - | 6.2 | 9 | 9.4 |
| Dielectric loss angle | *10-4 | 18 | 15 | 5 | |
| Dielectric strength | *106V/m | 18 | 12 | 15 | |
2. Advantages:
1). Excellent insulation, security.
2). Excellent high pressure resistance
3). Corrosion resistance
3. Main Applications:
They are widely used for the halogen lamps, iodine-tungsten lamps, high and low pressure uv lamps, mercury lamps, uv lamp holders and all kinds of heating tubes.
4. About us:
Jiangsu Sailamike Precision Ceramic is a worldwide leader in the development and production of advanced insulating ceramics. We provide a wide selection of advanced ceramics including Alumina ceramic, Zirconia ceramic, cordierite, steatite ceramic and mullite, which improves and extends the performance of your product, process, or system. Whether you need high temperature stability, high hardness and wear resistance surfaces, improved stiffness to weight radiations, anti-corrosive barriers or low thermal expansion rates - we can deliver. We can offer significant performance and cost advantages to meet your needs.
Welcome you contact us for more information.
5. FAQ:
6. Contact us:
