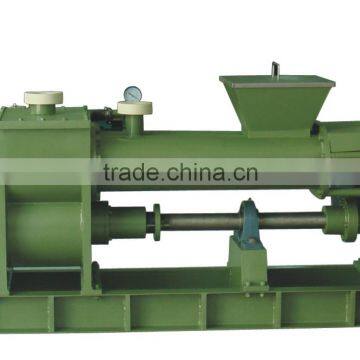

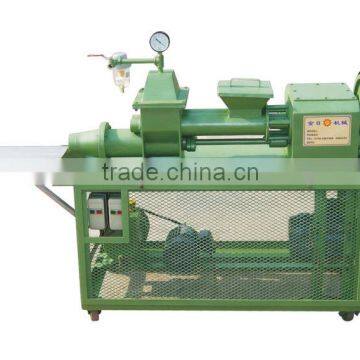

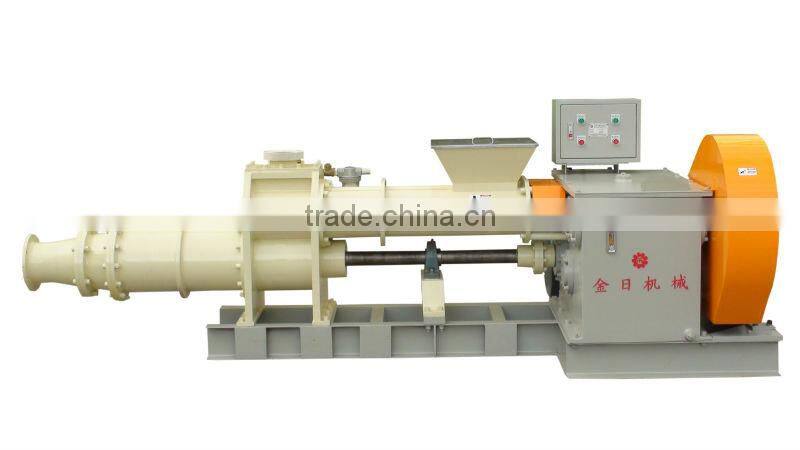

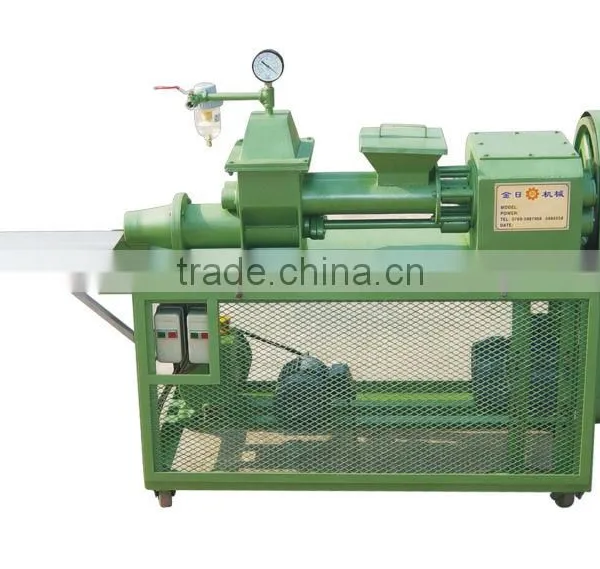

Vacuum Pug Mill Machine

Name: Vacuum Pug Mill Machine
Brand: Jinri
SKU: 107954045
Availability: InStock

US$ 36,000 - 40,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

China

Brand Name:

Jinri

Model Number:

LN-30

Contact Supplier Request Quote Chat Now

Dongguan Jinri Ceramic Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Brand Name Jinri

Model Number LN-30

Pug mill machine for ceramic/ extruder

1.the pug mill can get the air-free pug.
2.small noieses
3.long service life
4.made of corrosion-resistant stainless steel

This series of machines adopt three-axis type. The pug is fully cut and mixed, and passes screen through squeezing, then falls in the vacuum chamber in the fine-ground shape, and finally cut and discharged through squeezing. Before the slog passes the screen and after the slog falls into the vacuum chamber, one vacuumize outlet is equipped respectively. The mixing/squeezing system are precisely designed according to material balance principle, so as to ensure smooth charging, full mixing, reasonable squeezing, even density, high vacuum degree, strong plasticity and conformity to molding technique. The advantages are reasonable integral structure, strict control on quality of assembly, stable operation, small noises and long service life
The machine is applicable to production of full ceramic, semi ceramic and bone china.
Parameters
External Dimensionmm (mm)	Pug Caliber (mm)	Power(KW)	Vacuum Pump	KWVacuum Pump Motor(KW)	Production Capacity
L37801840H1160	Φ220	30HP/22.5KW	H-25	4HP/3kw	2.5T-3.5T/H

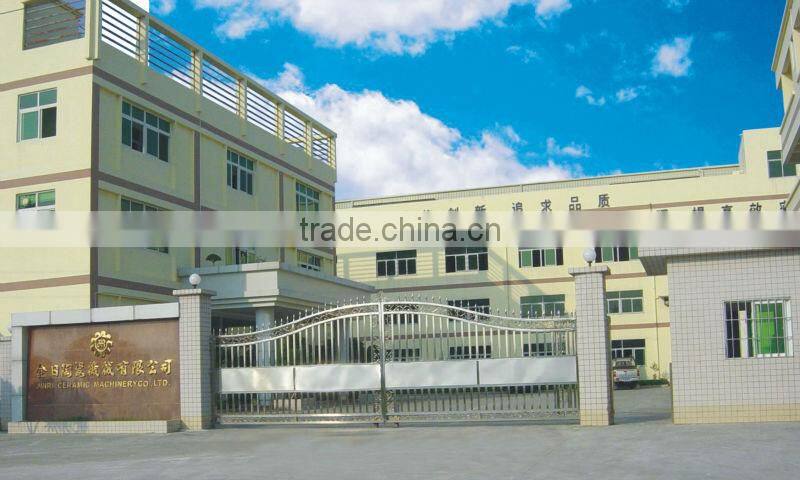

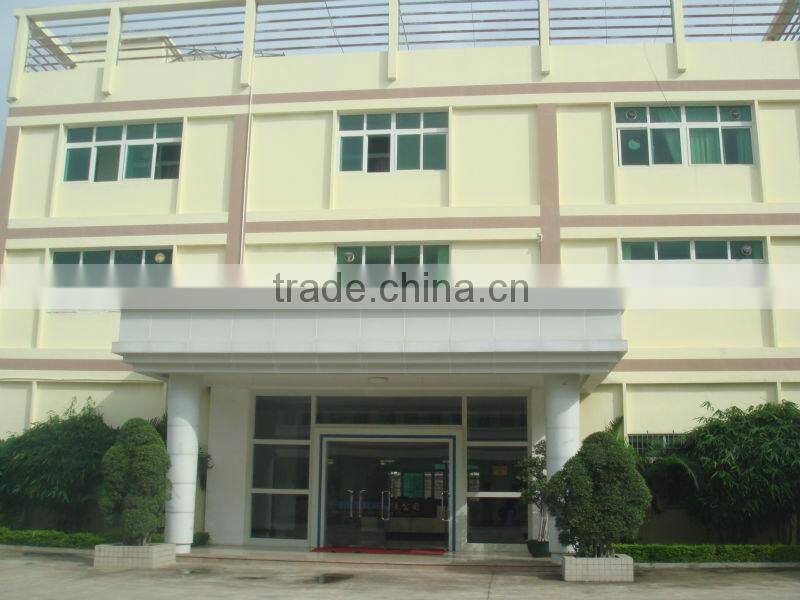

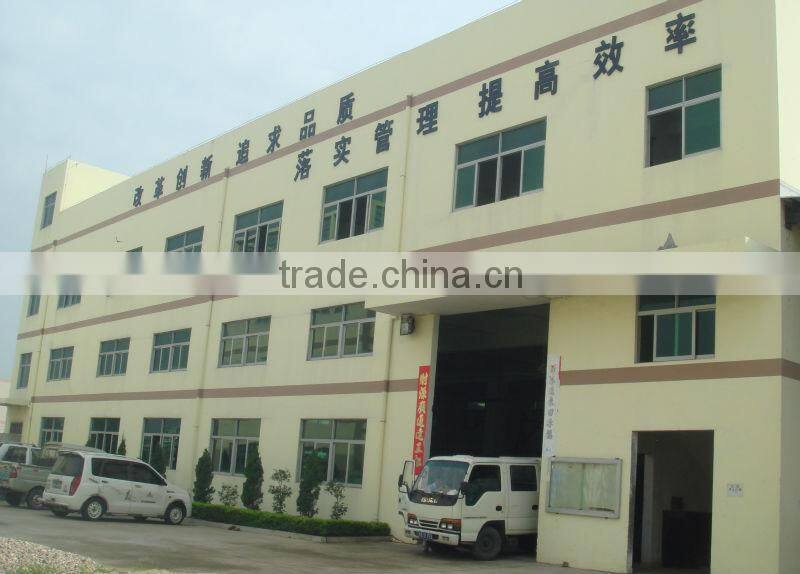

Dongguan Jinri Ceramic Machinery Co., Ltd. is a professional manufacturer in charge of producing and designing ceramic machinery and kilns. It’s also the domestic manufacturer with ability to design and produce tableware machinery comparable to those made by foreign countries, and is one of the representative in the domestic tableware machinery industry.

Main product: tableware machinery and different kilns, etc. Such as Four-column punching machine, Vacuum pug mill, Hydraulic automatic molding machine, Automatic forming machine, Ball mill machine, high-pressure slip casting machine, Glazing machine, Dry powder press machine, etc.

Our objective: Survive by quality, develop by credit, and create products with top quality.

Our Promise: Excellent services with outstanding quality and reasonable price.

Jinri Ceramic Machinery Co., Ltd. will always follow the principle of customers’ interests and requirements, only the success of customers is our future.
