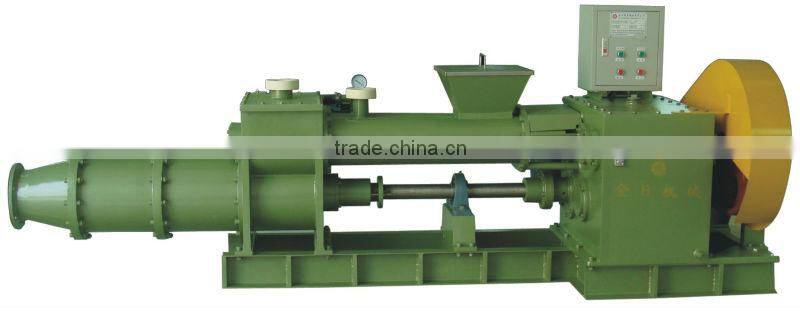

Extruder/ Pug Mill

Name: Extruder/ Pug Mill
Brand: Jinri
SKU: 107954025
Availability: InStock

US$ 20,000 - 40,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Jinri

Model Number:

LN-30

Dongguan Jinri Ceramic Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ShenZhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Jinri

Model Number LN-30

Condition New

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.extruder/ pug mill .
2.small noieses
3.long service life
4.made of corrosion-resistant stainless steel

1.the pug mill can get the air-free pug.
2.small noieses
3.long service life
4.made of corrosion-resistant stainless steel

This series of machines adopt three-axis type. The places in contact with clay are made from high-quality corrosion-resistant stainless steel (SUS316). The pug is fully cut and mixed, and passes screen through squeezing, then falls in the vacuum chamber in the fine-ground shape, and finally cut and discharged through squeezing. Before the slog passes the screen and after the slog falls into the vacuum chamber, one vacuumize outlet is equipped respectively. The mixing/squeezing system are precisely designed according to material balance principle, so as to ensure smooth charging, full mixing, reasonable squeezing, even density, high vacuum degree, strong plasticity and conformity to molding technique. The advantages are reasonable integral structure, strict control on quality of assembly, stable operation, small noises and long service life
The machine is applicable to production of full ceramic, semi ceramic and bone china.
Parameters
(mm) External Dimensionmm	(mm) Pug Caliber	Power (KW)	Vacuum Pump	Vacuum Pump Motor(KW)	Production Capacity
L2750W1480H880	Φ160	15HP/11KW	H-25	4HP/3kw	1.5T-2T/H
