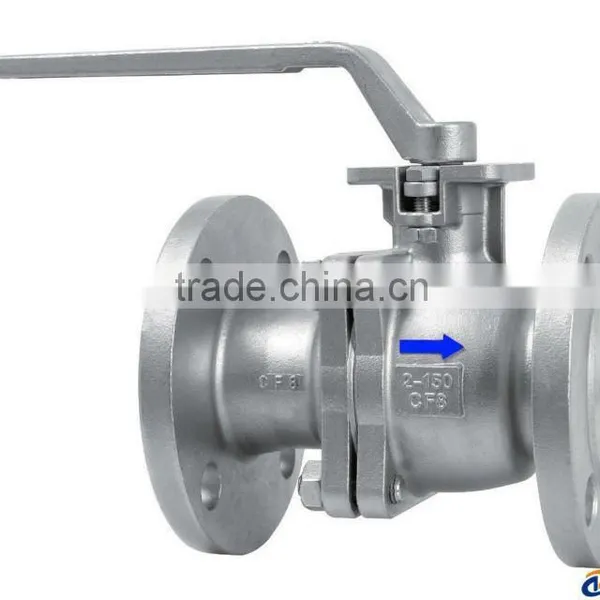

Help Center2PC FLANGED BALL VALVE CF8M
US$ 25 - 26
MOQ: 15 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Standard or Nonstandard
Standard
Structure
Ball
Pressure
Medium Pressure
Power
Hydraulic
Material
Stainless Steel
Temperature of Media
Medium Temperature
Media
Water
Port Size
1/2"
Place of Origin
Hebei, China
Model Number
1/2"
Brand Name
HD
Specifications
2PC STAINLESS STEEL FLANGED BALL VALVE (DIN)DIN 10-40
FULL PORT
INVESTMENT CASTING
BLOW-OUT PROOF SYSTEM
| FLANGED BALL VALVE | |||||||
| PRODUCT: | 2PC STAINLESS STEEL FLANGED BALL VALVE (DIN) | SIZE: | 1/2" | ||||

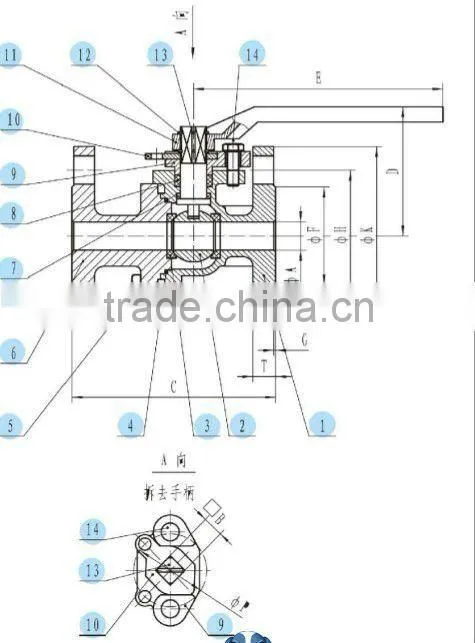

| MATERIAL LIST | |||||||
| ITEM | DESIGNATION | MATERIAL | ITEM | DESIGNATION | MATERIAL | ||
| 1 | BODY | 1.4308/1.4408 | 2 | BALL | 1.4308/1.4408 | ||
| 3 | BALL SEAT | RPTFE | 4 | BODY SEAL | PTFE | ||
| 5 | BOLT | SUS 304 | 6 | CAP | 1.4308/1.4408 | ||
| 7 | STEM SEAL | PTFE | 8 | STEM PACKING | PTFE | ||
| 9 | GLAND | 1.4308 | 10 | STOPPER | SUS 304 | ||
| 11 | HANDLE | 1.4308 | 12 | SNAP RING | SUS 304 | ||
| 13 | STEM | SUS 304 | 14 | BOLT | SUS 304 | ||
| DINMENSION TABLE | |||||||||||
| ITEM SIZE | A | B | C | D | E | PN10 PN16 | |||||
| F | H | K | T | G | M | ||||||
| 1/2" | 15 | 11 | 73 | 73 | 130 | 45 | 65 | 95 | 14 | 2 | 14 |
| 3/4" | 20 | 11 | 76 | 76 | 130 | 58 | 75 | 105 | 16 | 2 | 14 |
| 1" | 25 | 14 | 86 | 86 | 160 | 68 | 85 | 115 | 18 | 2 | 14 |
| 1 1/4" | 32 | 14 | 91 | 91 | 160 | 78 | 100 | 140 | 18 | 2 | 18 |
| 1 1/2" | 38 | 17 | 119 | 119 | 200 | 88 | 110 | 150 | 18 | 3 | 18 |
| 2" | 50 | 17 | 127 | 127 | 200 | 102 | 125 | 165 | 18 | 3 | 18 |
| 2 1/2" | 65 | 17 | 136 | 136 | 200 | 122 | 145 | 185 | 18 | 3 | 18 |
