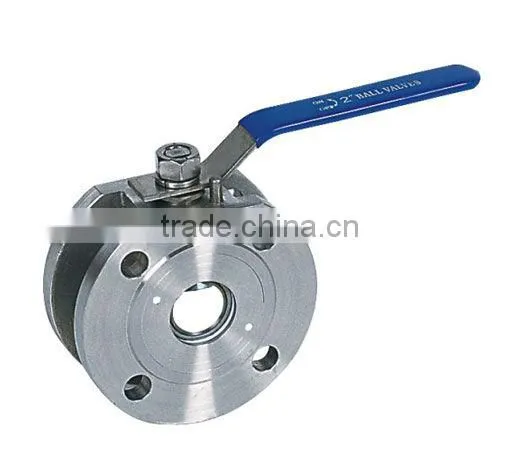

Help Center1-PC WAFER FLANGED BALL VALVE (DIN)
Related Products
-
2-PC FLANGED BALL VALVE(JIS)US$ 1 - 100MOQ: 1 Piece -
Flange Valve Manufacturer in ChinaUS$ 1 - 150MOQ: 100 Pieces
-
3-PC Flange Ball Valve Stainless Steel ,Flange ConnectionUS$ 1 - 1,000MOQ: 1 Piece
-
2-PC FLANDGED BALL VALVE WITH DIRECT MOUNTING PAD(DIN)US$ 1 - 100MOQ: 100 Pieces
-
THREE-WAY BALL VALVE WITH DIRECT MOUNTING PADUS$ 1 - 1,000MOQ: 1 Piece
Specifications
we have many years of production experience, product quality reasonable price perfect service win the trust of customer.FEATURES:
1000PSI/PN63
Full Port
Investment Casting
Blow-out Proof Stem
Locking Device Handle (option)
PED97/23/EC (CE0035) Approved
Casting approved AD2000-W0
Thread: ASME B1.20.1 BS21.DIN2999/259, ISO-228-1, JIS B 0203, ISO7/1
Inspection Testing: AP1598, EN12266

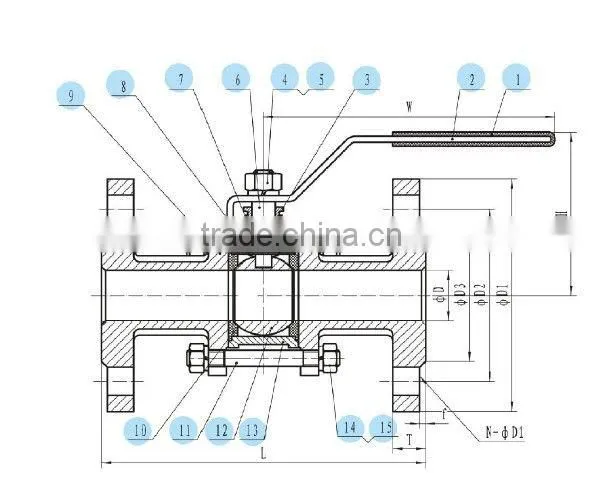

MATERIAL LIST | ||
NUMBER |
NAME |
MATERIAL |
1 |
PLASTIC COVER |
PLASTIC |
2 |
HANDLE |
SUS304 |
3 |
GLAND NUT |
SUS304 |
4 |
STEM NUT |
SUS304 |
5 |
THRUST WASHER |
SUS304 |
6 |
STEM PACKING |
PTFE |
7 |
THRUST WASHER |
PTFE |
8 |
CAP |
CF8/CF8M |
9 |
BOLT |
SUS304 |
10 |
NUT |
SUS304 |
11 |
THRUST WASHER |
SUS304 |
12 |
BODY |
CF8/CF8M |
13 |
SEAT |
RPTFE |
14 |
BALL |
CF8/CF8M |
15 |
STEM |
SUS304 |
16 |
LOCKING |
SUS304 |
DIMENSION TABLE
|
DN15 |
DN20” |
DN25 |
DN32 |
DN40 |
DN50 |
DN65 |
DN80 |
DN100 |
D |
15 |
20 |
25 |
32 |
38 |
50 |
65 |
76 |
94 |
P |
9 |
9 |
11 |
11 |
14 |
14 |
17 |
17 |
22 |
A |
32 |
32 |
40 |
40 |
50 |
50 |
70 |
70 |
102 |
B |
40 |
40 |
50 |
50 |
70 |
70 |
102 |
102 |
102 |
N |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
8 |
8 |
H |
M12 |
M12 |
M12 |
M16 |
M16 |
M16 |
M16 |
M16 |
M16 |
W |
140 |
140 |
152 |
152 |
188 |
188 |
230 |
230 |
230 |
H |
78 |
84 |
93 |
105 |
112 |
120 |
145 |
155 |
189 |
L |
42 |
44 |
50 |
60 |
65 |
80 |
113 |
120 |
154 |
