Specifications
1.Switch between presure and electric2.Black stell case and brass internal
3.100mm PRESSURE GAUGE
4.Accuracy 2.5% 1.6%
Product Description

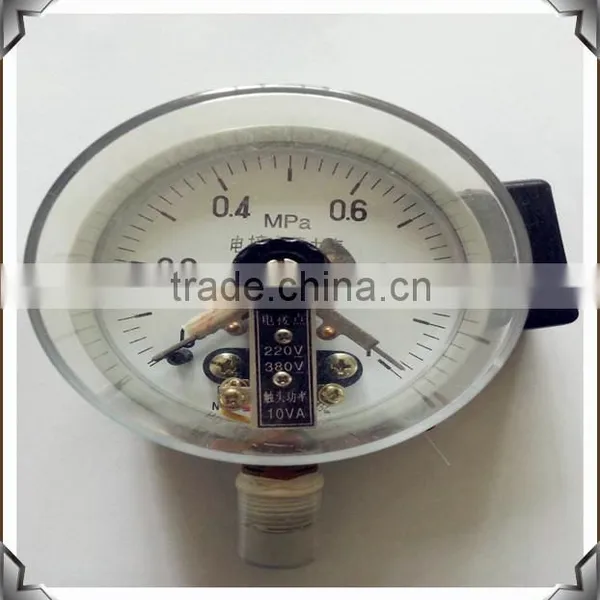

Features of electric contact pressure gague
1.Usage:The gauges are used widely in petroleum,chemical,metallurgical and power station,by cooperating with the electric parts,they can realize the auto control of measured system.
2.Principle:Under the pressure gauge will raise,when the needle(named active needle in this instrument) of basic pressure gauge will raise,when the needlecontact to upper limit, a signal will be transferred to control system,this will make the resource stop working. On the contrary when the active need contact to the lower limit,singal will be transferred to control system,this will make resource pressure system add the pressure to system again.
3.Structure :The instruments are made up of measurement system,electric contact device,adjustment device and the case.
Specifications of electric contact pressure gauge
| Tag: Electric contact pressure gauge | ||
| Modal # |
YX-100 YXC-100 YXN-100 |
YX-150 YXC-150 YXN-150 |
| Nominal Diameter | Φ 100 | Φ 150 |
| Connection Thread | M20X1.5 | M20X1.5 |
| Accuracy Class | 1.6 | 1.6 |
| Measuring Range | YX |
0~0.1,0~0.16,0~0.25,0~0.4,0~0.6, 0~1,0~1.6,0~2.5,0~4,0~6, 0~10,0~16,0~25,0~40,0~60 |
| YXC |
-0.1~0.06,-0.1~0.15,-0.1~0.3,-0.1~0.5, -0.1~0.9,-0.1~1.5,-0.1~2.4 |
|
| YXN | -0.1~0 | |
| Performance of vibration-resisting |
YX,YXC YXN |
V.H.3 Class V.H.4 Class |
| Operation Circumstance |
YX,YXC YXN |
-40~70°C -25~55°C |
1. Measures pressure for gas, liquid and other media which has no corrosive effects on copper, copper alloy, etc.
2. Accuracy class: 1.6%, 2.5%
3. Measuring range: 0~60 bar, or as your request
4. Casing: steel, plastic, stainless steel
5. Movement: brass or stainless steel
6. Burdon tube: brass or phosphor bronze
7. Working temperature: -40 to 70,-25~55
Each unit has individual box and all boxes are packed in standard packages
