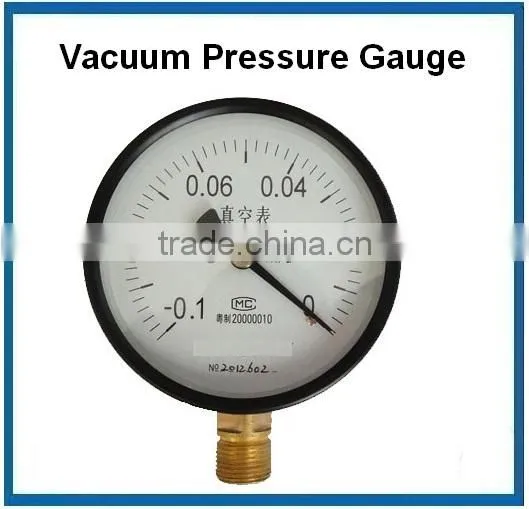

Stainless steel bourdon tube Vacuum pressure gauge
For corrosive or non corosive gas and liquid aggressive media which are not highly viscous and would crystallize. Particularly used in chemical, petrochemical and food industry, biochemistry and any rush industries. For measuring points subject to vibrations and high dynamic pressure load.
Specification:
1.Case & ring:stainless steel 304
2.Window:Acrylic(dial size:1-1/2"~3") Safety glass(dial size:4"~6")
3.Element & Movement:stainless steel
4.Bourdon tube system:stainless steel 316
5.Socket:stainless steel
6.Pointer:Aluminum alloy, black painted
7.Connection:1/8",1/4",3/8",1/2",3/4"(BSP(PF)/BSPT(PT)/NPT)
8.Connection type: A type(botton connection), B type(botton connection with back flange for wall mounting) AD type(back connection without flange) BD type(back connection with front flange) UD type(back connection with clamp(w/o flange) for panel mounting)
9.Dial size:1.5",2",2.5",3",4",6"
10.Ambient Temperature:-20~60C
11.Measured medium temperature:Tmax.+100C 12.Accuracy:(+/-)1.6% full scale(dial size:1.5"~2.5") (+/-)1.0% full scale(dial size:3"~6") 13.Pressure range:depand on your order 14.Type:Standard pressure gauge;Vacuum pressure gauge & Compound pressure gauge
*Options:
Safety glass window for dial size:2.5"&3"
Blow-out disk by back for dial size:4"
Adjustable pointer available for dial size:4"&6"
Special male or female thread connections
Measured medium Tmax.+180C
Glycerine or Silicone filling
Cleanness for oxygen service
Red pointer indicating max. pressure on dial

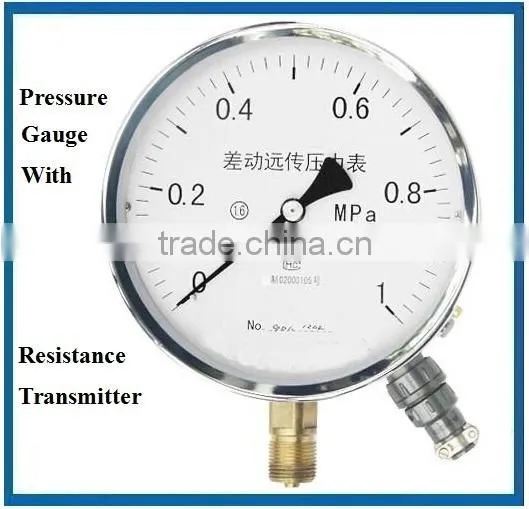

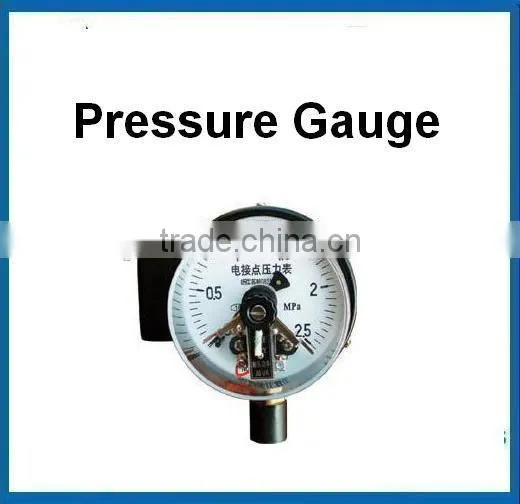

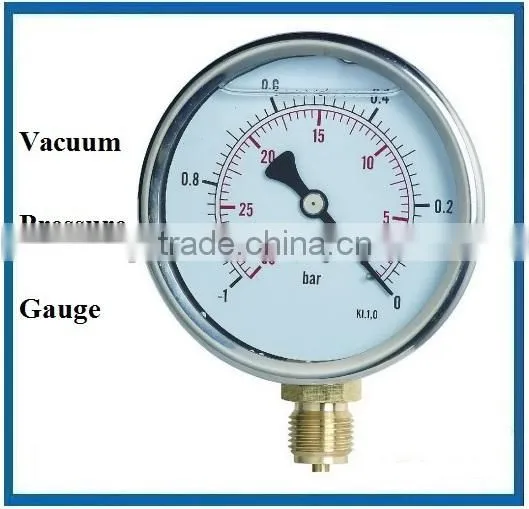

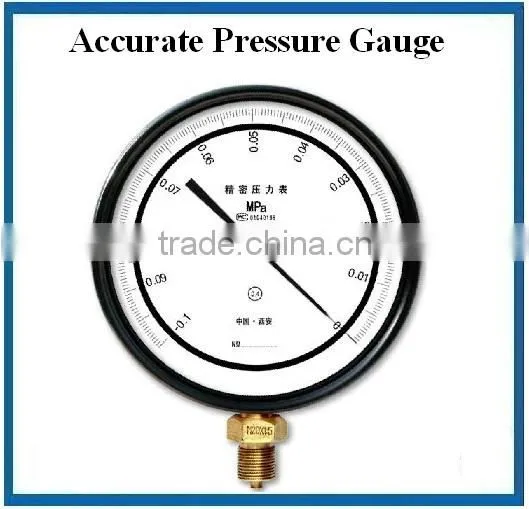

Other type pressure gauges
We are a professional high-tech enterprise engaging in the development, sales and customized service of
pressure sensors,
pressure transmitters,
temperature sensor,
temperature transmitters,
flow meters,
level transmitters,
pressure gauges,
They are widely used in aerospace, automobile, chemical, drugs, electric power, food,medicine,metallurgy,
manufacturing, paper-making, petroleum, railroad and water conservation industry etc.
Any inquiry,pls feel free to contact us.
