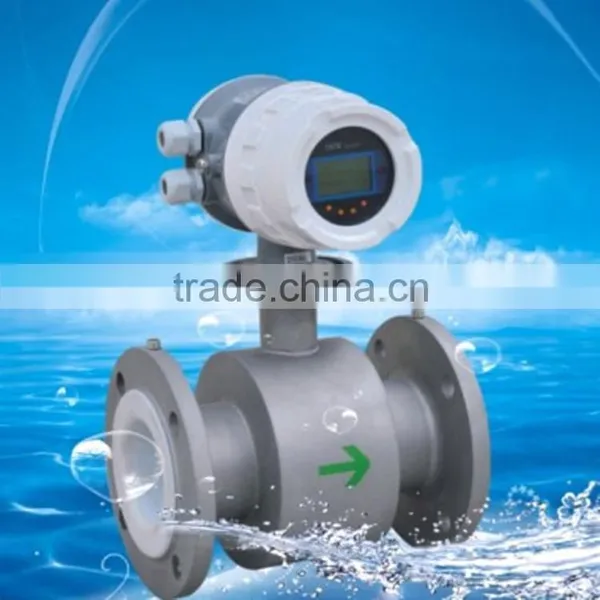

Help CenterFlange Connetction Type Digital Diesel Flow Meter
Related Products
-
Cheap High Performance Digital Diesel Flow MeterUS$ 50 - 500MOQ: 10 Pieces -
LWGY Liquid Turbine Digital Diesel Flow MeterUS$ 50 - 500MOQ: 10 Pieces
-
Digital Diesel Type Flow MeterUS$ 50 - 500MOQ: 10 Pieces
-
Electronic Turbine Digital Diesel Flow MeterUS$ 50 - 500MOQ: 10 Pieces
-
Stainless Steel Digital Diesel Flow MeterUS$ 50 - 500MOQ: 10 Pieces
Specifications
digital diesel flow meter1.Top quality
2.flange connection
3.High acccuracy measurement
4.Long life
Product Description
Heavy diesel oil flow meter is a capacitive target flowmeter, heavy diesel oil flow meter using a special material force sensor, heavy diesel oil flow meter can be used as additional meter. Heavy diesel oil flow meter in many factories have a wide range of use! Heavy diesel oil flow meter is a small pressure loss, large range, high accuracy when measuring volume flow conditions virtually unaffected by fluid density, pressure, temperature, viscosity and other parameters
Feature
High accuracy, ± 1%, ± 0.5%, ± 0.2%.
Repeatability, short-term repeatability of up to 0.05% to 0.2%, in trade settlement is the preferred flow meter.
The output pulse frequency signal applied to the total measurement and computer connection, no zero drift, strong anti-interference ability.
Obtain good frequency signal (3-4kHz), signal resolution is strong.
Compact and lightweight, easy installation and maintenance, flow capacity.
Suitable for high pressure measurement without opening the meter body, easily made from high-pressure type instrument.
Technical parameters:
Meter diameter: threaded connection: 4,6,10,15,20,25,32,40
Flange connection: (15,20,25,32,40) 50,65,80,100,125,150,200
Plug-in: more than 200
Range ratio: 1:10; 1:15; 1:20
Instrument Material: 304 stainless steel, 316 (L) stainless steel
Medium temperature: -20 °C ~ +120 °C
Ambient temperature: -10 °C ~ +55 °C
Relative humidity: 5% to 9%
Atmospheric pressure: 86 ~ 106Kpa
Output signal: Sensor: pulse frequency signal, low ≤ 0.8V High ≥ 8V
Transmitter: two-wire 4-20mA current signal
Power supply: sensor: +12 VDC, +24 VDC (optional)
Transmitter: +24 VDC
Field display type: built-in lithium battery meter
Explosion forms: basic non-explosion-proof, explosion-proof
Protection class: IP65, IP67
Scope of application:
For a variety of nominal diameters from DN15 ~ DN2000mm to greater
For high and low temperature medium: from -50 °C ~ +260 °C (special can be larger)
For low, medium and high pressure conditions: from 0 ~ 25MPa (special can be larger)
Each unit has individual box and all boxes are packed in standard packages
Our Services
From the raw material to the finished production we have the very strict and serious procedure to guarantee our products get to the different quality requirements to provide our customers high quality products, first-class service. The sale of products provides 12-month warranty and lifetime tracking service.
Company Information
Xian Qin Wei Instrument Factory is a plant-based research institute integrating the development, production and sale of instrumentation, electrical and mechanical equipment. We take "focus on business development, customer-oriented, quality first, and excellence" as our philosophy, creating a number of high-tech products to fill the gaps in the automation instrumentation industry.
Why choose us ?-----Xian Qin Wei Instrument Factory
1) Advance Equipment and Professional Technology: we are committed to offer the good quality gauges with advance equipment and professional technology for all over the world customers.
2) Best After-sales Service : Our company provide best after-sale service all the time , for our goal is a long trade cooperation term.
3) Serious Inspection Procedure with Excellent Quality: Our Flow meter all are 100% inspection , we also have passed ISO9001 and UL certificated.
4) Quickly Delivery: Our company provides in-time delivery with , always satisfy customers needs.
5)Convenient Purchase and save cost:Qin wei is a direct exporter and skillful manufacturer, so it's convenient for you to purchase , We can provide our high quality products with reasonable price.
.
