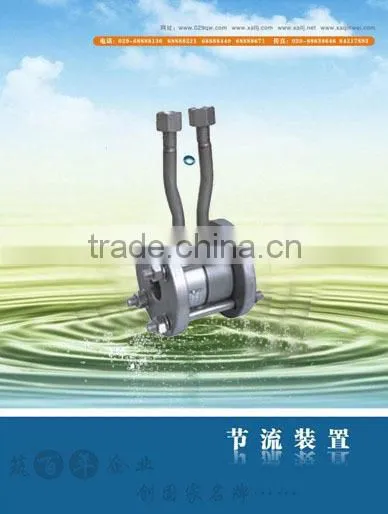

circular orifice flow meter
standard/Integration orifice flowmeter is one kind of differential pressure flow meter which fitted with standard orifice throttling element. It has long history; plenty reference material on both theory and practice, mature on usage. It is the most popular flow meter which widely used in many field any industry fields as petroleum, chemical, power, textile, metallurgical, military and scientific research .
Features:
1.The structure of the throttle flow equipment is easy to copy . It has simple,stable ,reliable capability ,long working life and is very reasonable .
2.The orifice flow meter adopt the international standards and machining .
3.The orifice flow meter is worldwide usage which can measure all the signal-phase flow and it can measure part of mix-phase flow .
4.It is the standard throttle flow equipment which can use without actual flow to calibration .
5.The integrated type is easy to installation ,it can directly connect the differential pressure transducer and pressure transducer without leading a pressure pipe.
Main technical parameters:
Nominal diameter (mm): standard, DN50~1000; nonstandard, DN15~1000
Acceptable error: ±1%, ±1.5%, ±2.5%
Nominal pressure (Mpa): 2.5~10
Medium temperature (°c): 10~500
Signal output: 4~20mA DC; signal for HART protocol
Explosion proof: intrinsic safety ibII CT5
Market service: oil, chemical, metallurgy, electric power, pharmaceutical industry
Application: metrological request to liquid, gas and vapor
Outstanding features
1. Measuring mass flow rate
2. High accuracy
3. Wide measuring range ratio
4. Minimum differntial pressure can reach 30mmH2O
5. Resistance to high temperature and high pressure
6. Suitable for all kinds of working conditions
7. Smart change and transmission
8. All condition automatically temperature/pressure compensation
9. An open digital platform
10. HART communication protocol
11. The digital display, signal remote transmission compatible
12. Analog and digital two-way communication can coexist, which is convenient system to set up and into the net.
Technical specifications
Model |
Structures |
||||
Protech orifice |
throttling device (orifice flowmeter) |
||||
Code |
the two basic categories according to the structure characteristics |
||||
K |
orifice plate |
||||
P |
Nozzle, etc. |
||||
symbol |
NP(105Pa) |
||||
2.5 |
2.5 |
||||
10 |
10 |
||||
16 |
16 |
||||
25 |
25 |
||||
64 |
64 |
||||
100 |
100 |
||||
200 |
200 |
||||
FAM |
Diameter(mm) |
||||
15~1200 |
15~1200 |
||||
Type |
Segmentation according to the structure type |
||||
H |
standard orifice plate (ring) |
||||
Y |
standard orifice plate (flange) |
||||
K |
standard orifice plate (drilling) |
||||
I |
ISA 1932 nozzle
|
||||
L |
long radius nozzle |
||||
W |
Venturi nozzle |
||||
G |
Classic venturi tube |
||||
S |
Double orifice plate |
||||
Q |
segmental orifice plate |
||||
Z |
conical entrance orifice plate |
||||
R |
A quarter circle orifice plate |
||||
P |
eccentric orifice plate |
||||
