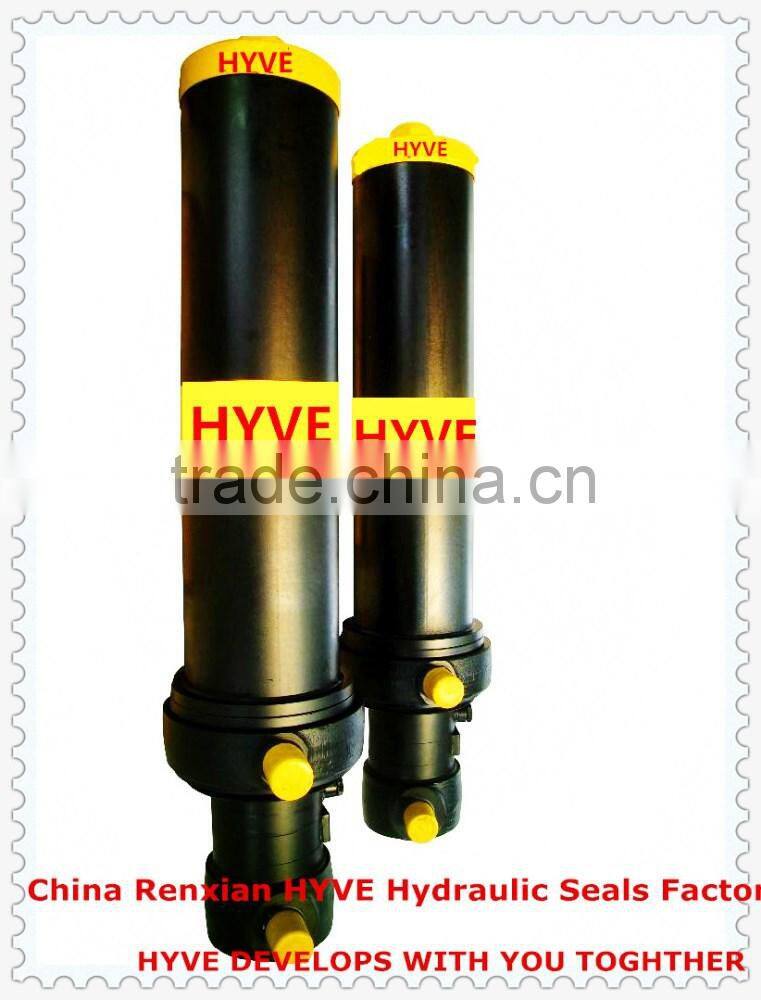

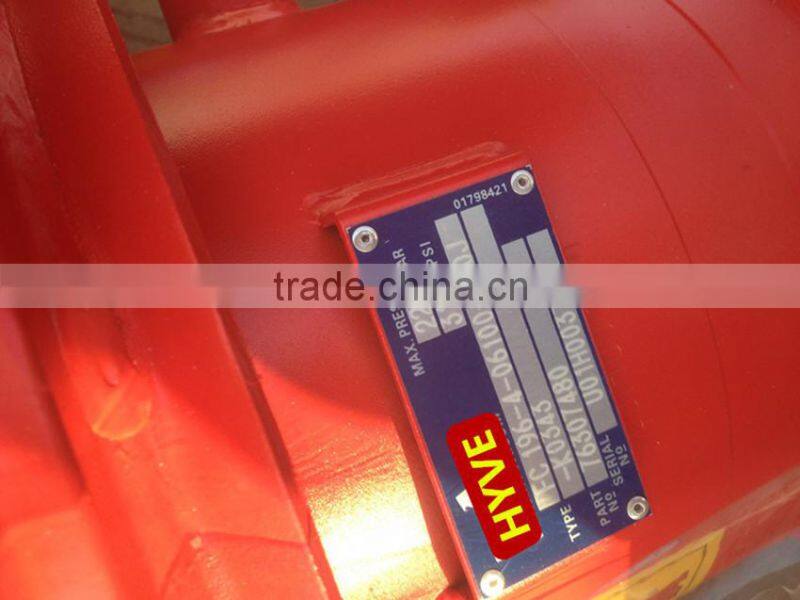

Help CenterFront End Dump Truck/Trailer Hydraulic Cylinder
Related Products
-
Front End Loader Hydraulic Cylinder With CE&ISO With High QualityUS$ 1,000 - 3,500MOQ: 1 Set -
Front End Loader Hydraulic Cylinder With CE&ISO Used for Dump Truck With High DesignUS$ 1,000 - 3,500MOQ: 1 Set
-
Front End Loader Hydraulic Cylinder With CE&ISO Used for Dump Truck With High PerformanceUS$ 1,000 - 3,500MOQ: 1 Set
-
Front End Loader Hydraulic Cylinder With CE&ISO Used for Dump Truck With High QualityUS$ 1,000 - 3,500MOQ: 1 Set
-
Front End Loader Hydraulic Cylinder With CE&ISO Used for Dump Truck With Excellent ProperityUS$ 1,000 - 3,500MOQ: 1 Set
About us:

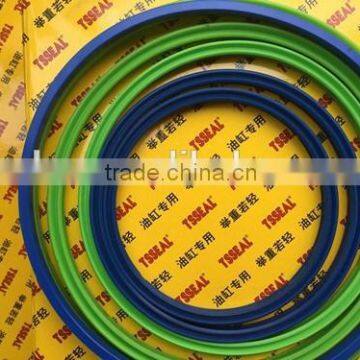

HYVA Seals offers the most comprehensive range of hydraulic piston seals in the market today. A variety of profiles such as lip seals are manufactured from
proprietary rubber and PTFE compounds to meet the broad demands of the fluid power industry. The highest quality materials and manufacturing processes
are utilized to ensure the best performance possible. HYVA hydraulic piston seal profiles are available for both uni-directional and bidirectional applications. When combined with wear rings,HYVApiston seals have proven to provide long life and leak free performance.

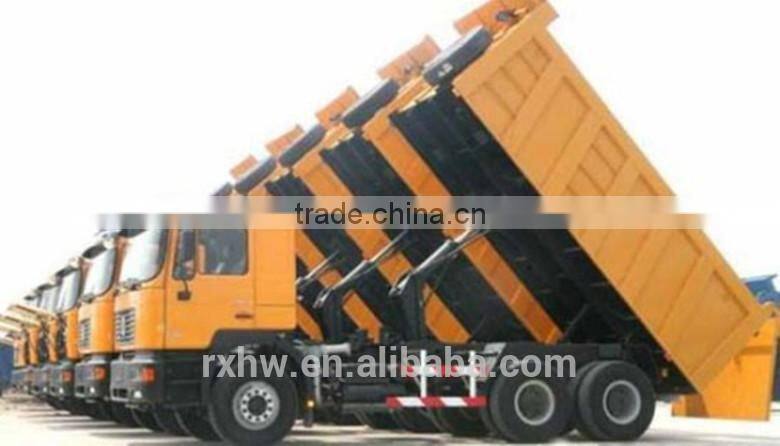

Application:dumping truck
Desined For:Single-acting
Stage:Four-stage cylinder
Max inner distance:170mm,180mm,195mm,200mm,210mm,etc.
Mounting distance:325mm/345mm/425mm
Working Pressure:16Mpa
Stroke:750mm-7200mm
Seal Type:NOK,BUSAK SHAMBAN or as customer's requirement
Piston Rod:Chrome or nickel plated,ground & polished piston rod
Tube: High tensile cold drawn tube,precision honed for extended seal life
Product |
Cylinder Model |
Pressure(bar) |
Lifting Weight(tons) |
Weight(kg) |
Volume(ltr. ) |
High |
J(mm) |
K*(mm) |

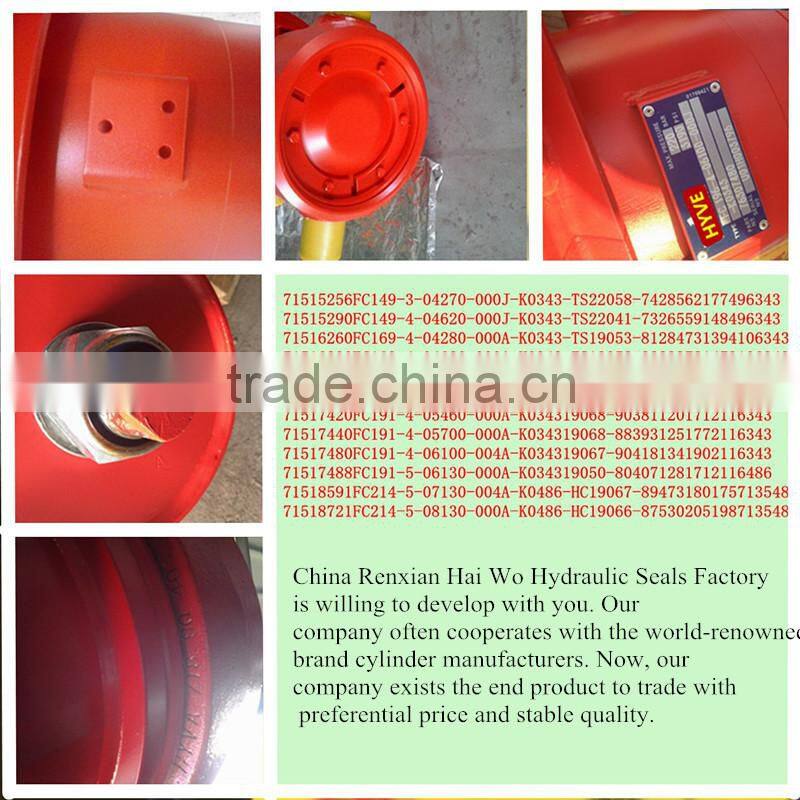

71515256 |
FC149-3-04270-000J-K0343-TS |
220 |
58-74 |
285 |
62 |
1774 |
96 |
343 |
71515290 |
FC149-4-04620-000J-K0343-TS |
220 |
41-73 |
265 |
59 |
1484 |
96 |
343 |
71516260 |
FC169-4-04280-000A-K0343-TS |
190 |
53-81 |
284 |
73 |
1394 |
106 |
343 |
71516290 |
FC169-4-04620-000A-K0343-TS |
190 |
52-82 |
299 |
78 |
1479 |
106 |
343 |
71516390 |
FC169-4-05180-000A-K0343-TS |
190 |
50-83 |
326 |
88 |
1639 |
106 |
343 |
71516430 |
FC169-4-05460-000A-K0343-TS |
190 |
50-81 |
338 |
92 |
1709 |
106 |
343 |
71517420 |
FC191-4-05460-000A-K0343 |
190 |
68-90 |
381 |
120 |
1712 |
116 |
343 |
71517440 |
FC191-4-05700-000A-K0343 |
190 |
68-88 |
393 |
125 |
1772 |
116 |
343 |
71517480 |
FC191-4-06100-004A-K0343 |
190 |
67-90 |
418 |
134 |
1902 |
116 |
343 |
71517488 |
FC191-5-06130-000A-K0343 |
190 |
50-80 |
407 |
128 |
1712 |
116 |
486 |
71518591 |
FC214-5-07130-004A-K0486-HC |
190 |
67-89 |
473 |
180 |
1757 |
135 |
486 |
71518721 |
FC214-5-08130-000A-K0486-HC |
190 |
66-87 |
530 |
205 |
1987 |
135 |
486 |
71518861 |
FC214-5-09030-000B-K0486-HC |
170 |
59-79 |
581 |
227 |
2197 |
135 |
486 |
HYVE provides multiple service, including sample checking before ordering, technology support in processing,
good after sale service.
Apply to:
Widely used in metallurgical machinery, mine machinery, water conservancy machinery,
building machinery, agriculture machinery etc.
Renxian Hai Wo Hydraulic Seals Factory locates in Xingtai,next to the capital Beijing. The transportation is very convenient.Our Company has been
making the superior polyurethane sealing products for 10 years and is a modernized enterprise for rubber seal with whole line of R&D,production and
marketing.Experienced workers and modern equipments ensure product quality and lead time.we have worked with several famous cylinder factories
in China and the products are popular.Our global sales network covers Europe,America,Middle East,South Africa,Africa etc. The seals has applied to
hydraulic fluid machinery;heavy-duty machinery,engineering machinery,construction machinery,mining machinery,metallurgical equipment,ship
equipment,auto parts and so on.Our company strictly adhere to"Strive for Excellence,Development and Innovation" We also pursue"Quality First,
Client Supreme" principle to serve you.
Market
South America
South Asia
Southeast Asia
Eastern Europe
Eastern Asia
Main Markets: Oceania
Southern Europe
North America
Western Europe
Domestic Marke
Factory Information
Factory Size (ters): 1,000-3,000 square meters
Factory Location: Qianliu Village, Tiankou Town, Ren County, Hebei Province. China
Number of Production Lines: Above 10
Number of R&D Staff: 5 - 10 People
Number of QC Staff: 5 - 10 People
