Specifications
Support 1000BASE-T Operation in Host Systems or 10/100/1000 BASE-T operation in host systems with SGMII interfaceCopper SFP
Product Description

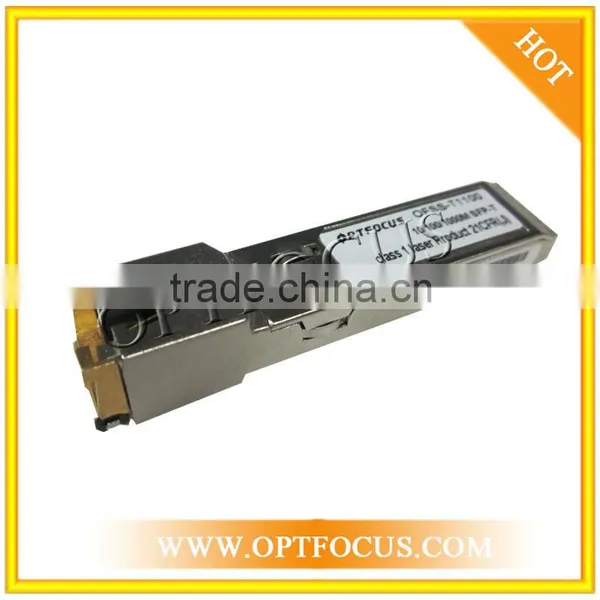

OPTFOCUS 1000BASE-T or 10/100/1000BASE-T Autonegotiation can be installed into optical SFP slots enabling an optical Ethernet port (1000Base-X) to be converted into a copper Ethernet port
(1000Base-T) either in the field or in production. RJ45 Transceivers are compatible with Gigabit Ethernet and 1000BASE-T standards. For more information, inquire from us Application Note.
Feature
l Support 1000BASE-T Operation in Host Systems or 10/100/1000 BASE-T operation in host systems with SGMII interface.
l 100m Reach Over UTP Cat5 Cable
l Hot-Pluggable SFP Footprint
l Fully Metallic Enclosure for Low EMI
l Low Power Dissipation (1.05W Typical)
l Compact RJ-45 Connector Assembly
l Access to Physical Layer IC via 2-Wire Serial Bus
l Detailed Product Information in EEPROM
l Compliant with SFP MSA
l Comercial or Industrial case temperature range
l Compliant with IEEE Std 802.3-2002
Application
l LAN 10/100/1000Base-T
l Gigabit Ethernet over Cat 5 Cable
l Switch to Switch Interface
l Router/Server Interface
Order Information
P/N |
Data Rate |
Distance |
LD |
PD |
DDMI |
OFSS-T1100 |
10/100/1000Mbps |
0.1(UTP-5) |
/ |
/ |
N |
OFSS-T100 |
10/100Mbps |
0.1(UTP-5) |
/ |
/a |
N |
OFSS-T1000 |
1000Mbps |
0.1(UTP-5) |
/ |
/ |
N |
