Specifications
1CWDM 1470nm~1610nm,2.488Gbps,80km, 0 ~ +70,With Digital Diagnostic Monitoring2Compatible with RoHS ,SFP MSA and SFF-8472

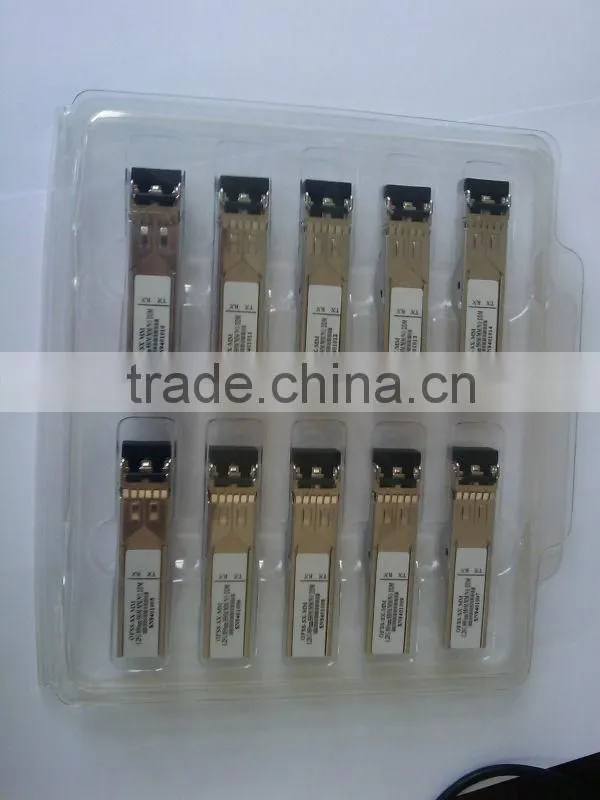

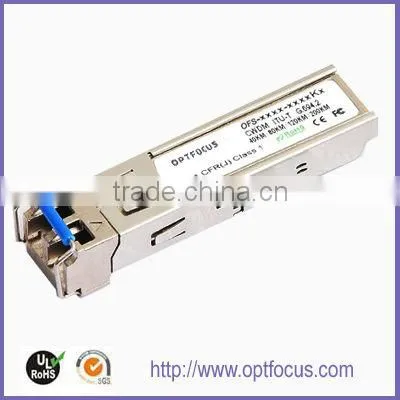

2.488G CWDM SFP Optical Transceiver, 80km Reach
Description
The SFP transceivers are high performance, cost effective modules supporting data-rate of 2.488Gbps
and 80km transmission distance with SMF.
The transceiver consists of three sections: an uncooled CWDM DFB laser transmitter, a PIN or APD
photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules
satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further
information, please refer to SFP MSA.
Features: |
Application: |
| Data-rate of 2.488Gbps operation 8 CWDM DFB wavelengths laser and PIN or APD photodetector for 80km transmission Compliant with SFP MSA and SFF-8472 with duplex LC receptacle Digital Diagnostic Monitoring: Internal Calibration or External Calibration Compatible with RoHS +3.3V single power supply Operating case temperature: Standard : 0 to +70°C |
SDH STM-16 and SONET OC-48 system 2X Fiber Channel Switch to Switch interface Switched backplane applications Router/Server interface Other optical transmission systems |
Ordering information
Part Number Product Description
OFSC-xx25-80CD CWDM 1470nm~1610nm,2.488Gbps,80km, 0ºC ~ +70ºC,With Digital Diagnostic
Monitoring
Absolute Maximum Ratings
Table 1 - Absolute Maximum Ratings
Parameter Symbol Min Max Unit
Supply Voltage Vcc -0.5 4.5 V
Storage Temperature Ts -40 +85 °C
Operating Humidity - 5 85 %
recommended Operating Conditions
Table 2 - Recommended Operating Conditions
Parameter Symbol Min Typical Max Unit
Operating Case Temperature Standard Tc 0 +70 °C
Power Supply Voltage Vcc 3.13 3.3 3.47 V
Power Supply Current Icc 300 mA
Data Rate 2.488G
Digital Diagnostic Memory Map
The transceivers provide serial ID memory contents and diagnostic information about the present
operating conditions by the 2-wire serial interface (SCL, SDA).
The diagnostic information with internal calibration or external calibration all are implemented, including
received power monitoring, transmitted power monitoring, bias current monitoring, supply voltage
monitoring and temperature monitoring.
The digital diagnostic memory map specific data field defines as following.
Ordering Info.:
P/N |
Data Rate |
Distance |
LD |
PD |
DDMI |
OFSC-xx03-120CD |
155Mbps |
120km |
CWDM DFB |
PIN |
Y |
OFSC-xx03-150CD |
155Mbps |
150km |
CWDM DFB |
APD |
Y |
OFSC-xx12-40C(D) |
1.25Gbps |
40km |
CWDM DFB |
PIN |
N(Y) |
OFSC-xx12-80C(D) |
1.25Gbps |
80km |
CWDM DFB |
PIN |
N(Y) |
OFSC-xx12-120CD |
1.25Gbps |
120km |
CWDM DFB |
APD |
Y |
OFSC-xx24-40C(D) |
2.5Gbps |
40km |
CWDM DFB |
PIN |
N(Y) |
OFSC-xx24-80CD |
2.5Gbps |
80km |
CWDM DFB |
APD |
Y |
OFSC-xxM1-80C(D) |
155Mbps to 1.25Gbps |
80km |
CWDM DFB |
PIN |
N(Y) |
OFSC-xxM2-80C(D) |
155Mbps to 2.5Gbps |
40km |
CWDM DFB |
PIN |
N(Y) |
OFSC-xx40-40xD |
4.25Gbps |
40km |
CWDM DFB |
PIN |
Y |
