Help Center155Mbps 40KM MM SFP Optical Transceiver With Digital Diagnostic Monitoring
Related Products
-
1.25Gbps, 20KM,SC SFP Bi-Directional Transceiver Compatible With Cisco, Huawei,HP EtcNegotiableMOQ: 1 Pair -
1.25Gbps, 20KM,SC SFP Bi-Directional Transceiver Compatible With Cisco, Huawei,HP EtcNegotiableMOQ: 1 Pair
-
4.25G 40km CWDM SFP Optical Transceiver With Digital Diagnostic MonitoringNegotiableMOQ: 1 Pair
-
Compatible With Cisco, Huawei,HP Ect 1.25Gbps, 20KM,SC SFP Bi-Directional TransceiverNegotiableMOQ: 5 Pairs
-
155Mbps 40KM SFP Optical Transceiver With Digital Diagnostic MonitoringNegotiableMOQ: 5 Pairs
Specifications
1310nm, 155Mbps, 40km, 0 ~ +70,With Digital Diagnostic MonitoringCompatible with RoHS,SFP MSA and SFF-8472 with duplex LC
155Mbps SFP Optical Transceiver, 40km Reach
Description
The SFP transceivers are high performance, cost effective modules supporting 155Mbps data-rate and 40km transmission distance with SMF.
The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated
with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser
safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further
information, please refer to SFP MSA.
Features: |
Application: |
| Up to 155Mbps data-rate 1310nm FP laser and PIN photodetector for 40km transmission Compliant with SFP MSA and SFF-8472 with duplex LC receptacle Digital Diagnostic Monitoring: Internal Calibration or External Calibration Compatible with RoHS +3.3V single power supply Operating case temperature: Standard : 0 to +70°C Industrial : -40 to +85°C |
SDH STM-1, S-1.1,L-1.1, L-1.2 SONET OC-3 IR1,LR1,LR2 Other optical links |
Ordering information
Part Number Product Description
OFS-1303-40C 1310nm, 155Mbps, 40km, 0ºC ~ +70ºC
OFS-1303-40CD 1310nm, 155Mbps, 40km, 0ºC ~ +70ºC, With Digital Diagnostic Monitoring
OFS-1303-40T 1310nm, 155Mbps, 40km, -40ºC ~ +85ºC
OFS-1303-40TD 1310nm, 155Mbps, 40km, -40ºC ~ +85ºC, With Digital Diagnostic Monitoring
Absolute Maximum Ratings
Table 1 - Absolute Maximum Ratings
Parameter Symbol Min. Max. Units Notes
Storage Temperature Tst -40 +85 °C -
Operating Case Temperature Tc 0 70 °C -
Operating Humidity RH 5 90 % Non-condensing
Power Supply Voltage Vcc-Vee 0 3.6 V -
Recommended Operating Conditions
Table 2 - Recommended Operating Conditions
Parameter Symbol Min Typical Max Unit
Standard 0 +70 °C
Operating Case Temperature
Industrial
Tc
-40 +85 °C
Power Supply Voltage Vcc 3.13 3.3 3.47 V
Power Supply Current Icc 300 mA

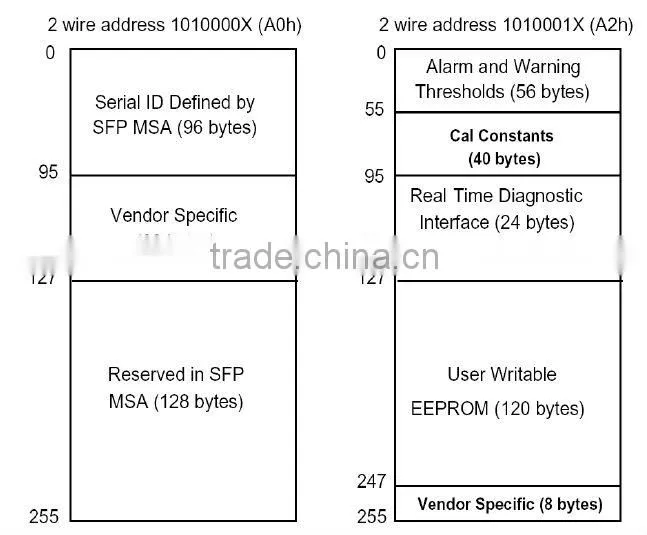

Digital Diagnostic Memory Map
The transceivers provide serial ID memory contents and diagnostic information about the present
operating conditions by the 2-wire serial interface (SCL, SDA).
The diagnostic information with internal calibration or external calibration all are implemented, including
received power monitoring, transmitted power monitoring, bias current monitoring, supply voltage
monitoring and temperature monitoring.
The digital diagnostic memory map specific data field defines as following.
