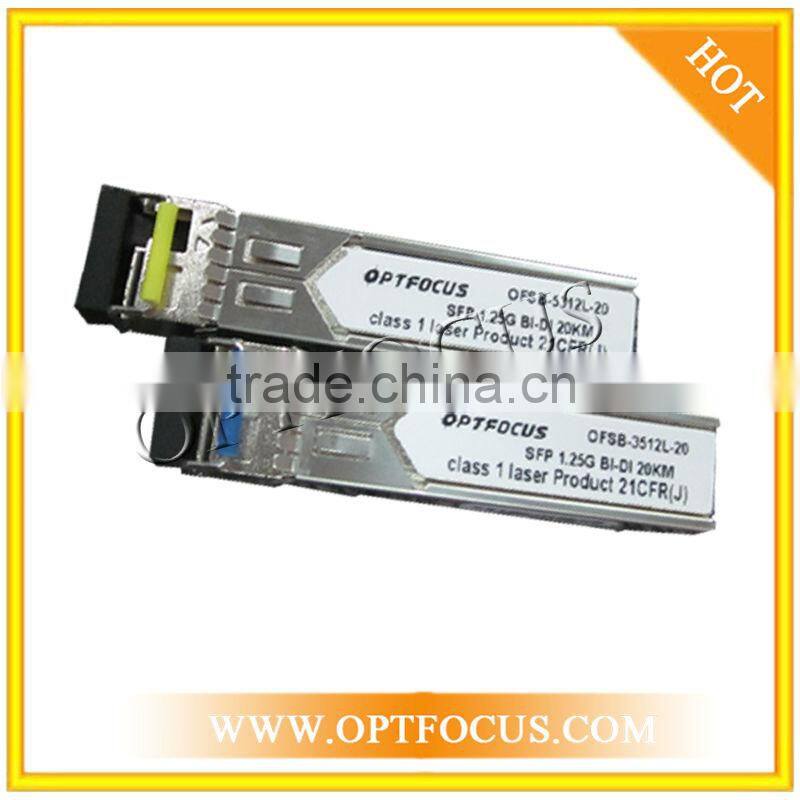

Help Center1.25Gbps, 20KM,SC SFP Bi-Directional Transceiver Compatible With Cisco, Huawei,HP Etc
Related Products
-
4.25G 40km CWDM SFP Optical Transceiver With Digital Diagnostic MonitoringNegotiableMOQ: 1 Pair -
Compatible With Cisco, Huawei,HP Ect 1.25Gbps, 20KM,SC SFP Bi-Directional TransceiverNegotiableMOQ: 5 Pairs
-
155Mbps 40KM SFP Optical Transceiver With Digital Diagnostic MonitoringNegotiableMOQ: 5 Pairs
-
155Mbps 40KM SFP Optical TransceiverNegotiableMOQ: 5 Pairs
-
1.25Gbps, 20KM,1310nm LC SFP Bi-Directional Transceiver With Digital Diagnostic MonitoringNegotiableMOQ: 5 Pairs
Specifications
1310nm, 1.25Gbps, SC,20km, 0~+70,With Digital Diagnostic MonitoringCompatible with SONET OC-24-LR-1,RoH,Shuawei,HP etc.
1.25Gbps SFP Bi-Directional Transceiver, 20km Reach1310nm TX / 1490 nm RX
Description
The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of
1.25Gbps/1.0625Gbps and 20km transmission distance with SMF.
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further
information, please refer to SFP MSA.
Features: |
Application: |
| Dual data-rate of 1.25Gbps/1.063Gbps operation 1310nm FP laser and PIN photodetector for 20km transmission Compliant with SFP MSA and SFF-8472 with simplex LC receptacle Digital Diagnostic Monitoring: Internal Calibration or External Calibration Compatible with SONET OC-24-LR-1 Compatible with RoHS +3.3V single power supply Operating case temperature: Standard : 0 to +70°C Industrial : -40 to +85°C |
Gigabit Ethernet Fiber Channel Switch to Switch interface Switched backplane applications Router/Server interface Other optical transmission systems |
Absolute Maximum Ratings
Table 1 - Absolute Maximum Ratings
Parameter Symbol Min Max Unit
Supply Voltage Vcc -0.5 4.5 V
Storage Temperature Ts -40 +85 °C
Operating Humidity - 5 85 %
recommended Operating Conditions
Table 2 - Recommended Operating Conditions
Parameter Symbol Min Typical Max Unit
Operating Case Temperature Standard Tc 0 +70 °C
Power Supply Voltage Vcc 3.13 3.3 3.47 V
Power Supply Current Icc 300 mA
Data Rate Gigabit Ethernet 1.25Gbs Fiber Channel 1.063 Gbs
Ordering Info.:
Part Number Product Description
OFSB-3412S-20C 1310nm, 1.25Gbps, SC,20km, 0°C~+70°C
OFSB-3412S-20CD 1310nm, 1.25Gbps, SC,20km, 0°C~+70°C, With Digital Diagnostic Monitoring
OFSB-3412L-20C 1310nm, 1.25Gbps, LC,20km, 0°C~+70°C
OFSB-3412L-20CD 1310nm, 1.25Gbps, LC,20km, 0°C~+70°C, With Digital Diagnostic Monitoring
OFSB-3412S-20T 1310nm, 1.25Gbps, SC,20km, -40 to +85°C
OFSB-3412S-20TD 1310nm, 1.25Gbps, SC,20km, -40 to +85°C, With Digital Diagnostic Monitoring
OFSB-3412L-20T 1310nm, 1.25Gbps, LC,20km, -40 to +85°C
OFSB-3412L-20TD 1310nm, 1.25Gbps, LC,20km, -40 to +85°C, With Digital Diagnostic Monitoring
