Specifications

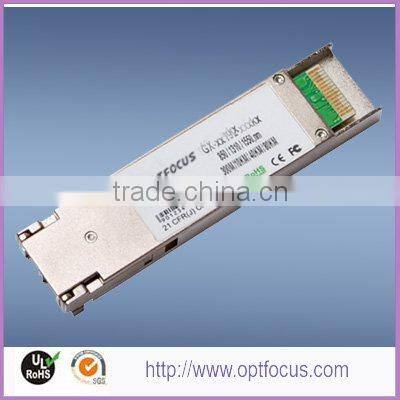

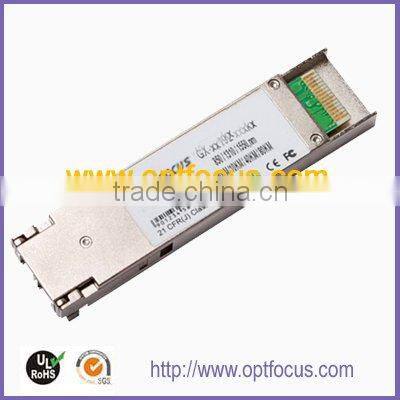

10G CWDM XFP module/optical transceiver module 40KMMaximum link length of 40km with SMF
10G CWDM XFP module/optical transceiver module 40KM
, 40km Reach
Features
Supports 10GBE Application at the Data-Rate of 9.953Gbps to 10.3125Gbps
Maximum link length of 40km with SMF
18-Wavelengths CWDM EML Transmitter from 1270nm to 1610nm, with Step 20nm
XFP MSA package with duplex LC connector
XFI High Speed Electrical Interface
+5V, +3.3V power supply
Power dissipation <3.5W
2-wire interface for management and diagnostic monitor
Compatible with RoHS
Compatible with IEEE 802.3ae 10 Gigabit Ethernet
Compatible with Sonet OC-192/SDH STM-64
Applications
10GBASE-ER/EW 10G Ethernet
1200-SM-LL-L 10G Fiber Channel
SONET OC-192 IR-2
SDH STM S-64.2b
SONET OC-192 IR-3
SDH STM S-64.3b
ITU-T G.709
Other optical transmission systems
Product Description
Ingellen's CWDM-XFP-XX40KM transceiver comply with XFP MSA, and can support diverse applications for SDH/Sonet equipment including FEC (9.95Gb/s to 10.7Gb/s),as well as Ethernet LAN(10.325Gb/s) and WAN(9.95Gb/s) applications. The high performance 1270nm to 1610nm with Step 20nm center wavelengths cooled EML transmitter and high sensitivity PIN receiver provide superior performance for SONET /SDH and Ethernet applications at up to 40km links. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA.
* Professional supply: SFP,GBIC,BIDI SFP,XFP,SFP+,X2 and XENPAK,CWDM,DWDM.
OEM&ODM service is available, High Quality with CE,RoHs,FCC,ISO, Cost effective.
100% Compatible Cisco,HP,Finisar,3com, etc.
| OFSX-1510-80D | XFP | 10G | 1550nm EML | ~ | APD | 0-70°C | 80KM | DDM RoHS |
| OFSX-1510-40D | XFP | 10G | 1550nm EML | ~ | APD | 0-70°C | 40KM | DDM RoHS |
| OFSX-1310-10D | XFP | 10G | 1310nm DML | ~ | PIN | 0-70°C | 10KM | DDM RoHS |
| OFSX-8510-03D | XFP | 10G | 850nm VCSEL | ~ | PIN | 0-70°C | 300M | DDM RoHS |
