Help Center10G SFP+ BIDI Module 20km
Related Products
Specifications
10G SFP+ BIDI module 20km1.CE,ROHS
2.Compliant with HP,Cisco,3COM,HUAWEI as so on

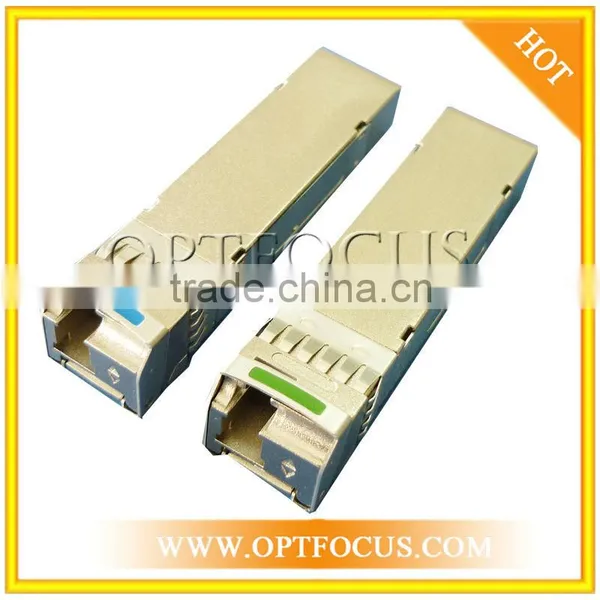

OFSBP-2710G-10 10Gb/s BIDI SFP+ Transceiver
PRODUCT FEATURES
l Up to 10.7Gbps Data Links
l Single Mode LC Receptacle Bi-directional Transceiver
l Up to 10km transmission on SMF
l Power dissipation<1.2W
l 1270nm DFB laser and 1330nm PIN receiver
l 2-wire interface with integrated Digital Diagnostic monitoring
l EEPROM with Serial ID Functionality
l Compliant with FC_PI_4 REV 7.0
l Compliant with SFP+ MSA with duplex LC connector
l Single + 3.3V Power Supply and LVTTL Logic
l Operating case temperature: -5 ºC ~+70ºC
APPLICATIONS
l 10GBASE-BX at 10.3125 Gb/s
l 10GBASE-BX at 9.953 Gb/s
l 1000 Base-LX Ethernet
l 8XFC at 8.5Gbps
l 4XFC at 4.25Gpbs
l 2XFC at 2.125Gpbs
l 1xFC at 1.0625Gbps
STANDARD
l Compliant with SFF-8472 SFP+ MSA.
l Compliant with FC_PI_4 REV 7.0.
l Compliant to SFP+ SFF-8431 and SFF-8432.
l Compliant to 802.3ae 10GBASE-LR.
l RoHS Compliant.
PRODUCT SELECTION
OFSBP-2710G-10
PRODUCT DESCRIPTION
OFSBP-2710G-10 is hot pluggable 3.3V Small-Form-Factor transceiver module. It designed expressly for high-speed communication applications that require rates up to 10.7Gbps, it designed to be compliant with SFF-8472 SFP+ MSA. The module data link up to10km in 9/125um single mode fiber.
The optical output can be disabled by a LVTTL logic high-level input of Tx Disable. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.
Absolute Maximum Ratings
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
Storage Temperature |
Ts |
-40 |
- |
85 |
ºC |
|
Storage Ambient Humidity |
HA |
5 |
- |
95 |
% |
|
Operating Relative Humidity |
RH |
- |
- |
85 |
% |
|
Power Supply Voltage |
VCC |
-0.3 |
- |
4 |
V |
|
Signal Input Voltage |
|
Vcc-0.3 |
- |
Vcc+0.3 |
V |
|
Recommended Operating Conditions
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
Case Operating Temperature |
TA |
0 |
- |
70 |
ºC |
Without air flow |
Power Supply Voltage |
VCC |
3.14 |
3.3 |
3.47 |
V |
|
Power Supply Current |
ICC |
- |
270 |
350 |
mA |
|
Data Rate |
BR |
|
10.3125 |
|
Gbps |
|
Transmission Distance |
TD |
|
- |
10 |
km |
Note (1) |
Coupled fiber |
Single mode fiber |
ITU-T G.652 |
||||
Note (1). Measured with SMF

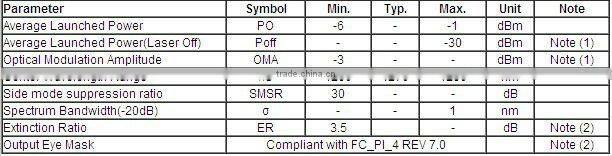

Specification of Transmitter
