E1 to 10(100)BaseT protocol Converter

Specifications

75 Ohm physics interface use BNC standard coaxial connector, 120 Ohm physics interface use RJ45 connector

E1 to 10(100)BaseT protocol Converter

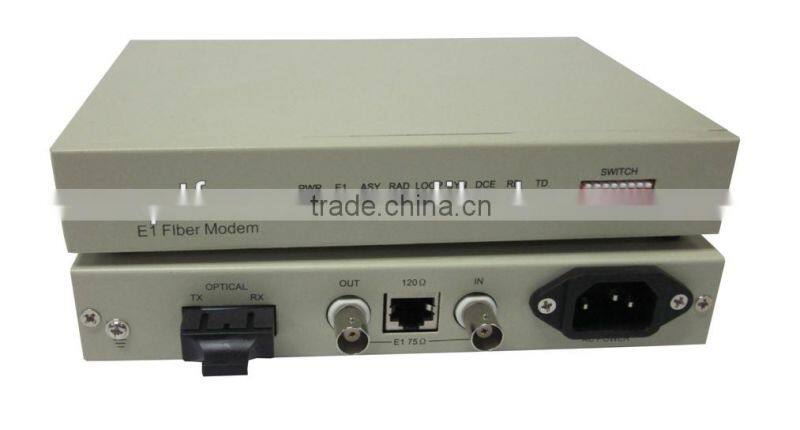

OFSP-ExFx The E1 to Ethernet protocol Converter is a device that extends Ethernet by means of telecommunication lines (E1 or E1 transport network, such as PDH, SDH, or microwave, etc.) and is also referred to "Net Bridge".It can effectively utilize free bandwidth of telecom operators' lines and can be used instantly once it is deployed, with little increased investment.



Technology Characteristics
 Transparent transmission of Ethernet data through E1 lines at 2048Kbps bandwidth
 Plug and play, without any setting or debugging work
Support automatic negotiation feature in Ethernet and full duplex/half duplex mode
 Support transmission of Jumbo Frames specified in IEEE 802.1Q and Ethernet switches with VLAN capability
 Local data frame filtering
 Provide unbalanced 75Ω and balanced 120Ω E1 interfaces

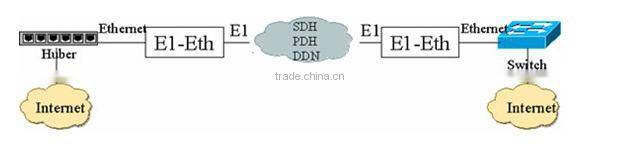

Typical Application:



 Interface Parameters
E1 Interface:
  Support ITU-T G.703
  HDB3 line coding, comply indication output of route warn
  Coding rate : 2048Kbps±50ppm
  75Ω physics interface use BNC standard coaxial connector, 120Ω physics interface use RJ45 connector
Ethernet Interface:
  Fully IEEE 802.3 (2000) compliant
  Bit rate: 10Mbps or 100Mbps
  Interface type: RJ45

General characteristics
 Power : 220V±20% , -36 ~ -72V
 Power Consumption : < 5W
 Environment Temperature : 0°C-50°C
 Size : 220×175×35mm or 483×160×45(mm)
Net Weight : 900g

Packing List
 Protocol Converter
 One Power cord (Note : -48v no with power cord)
 Two BNCs Coaxial Connector
 Manual book





Order Informaintion



Model	Description
OFSP-E1F1	E1 to ETH provide conversion from ITU-T G.703 E1 channel to Ethernet interface
OFSP-E1F4	E1 to 4*ETH provide conversion from ITU-T G.703 E1 channel to 4 Ethernet interface
OFSP-FE1F1	FE1 to ETH provide conversion from ITU-T G.703 E1 channel to Ethernet interface
OFSP-FE1F4	FE1 to 4*ETH provide conversion from ITU-T G.703 E1 channel to 4 Ethernet interface
OFSP-E4F1	4E1 to ETH provide conversion from 4E1 to Etherne
OFSP-E4F4	4E1 to 4*EHT   provide conversion from 4E1 to 4 Ethernet
OFSP-E8F1	81 to ETH   provide conversion from 8E1 to Ethernet
OFSP-E8F4	81 to 4*EHT provide conversion from 8E1 to 8 Ethernet
OFSP-E16F1	16 to ETH   provide conversion from 16E1 to Etherne
